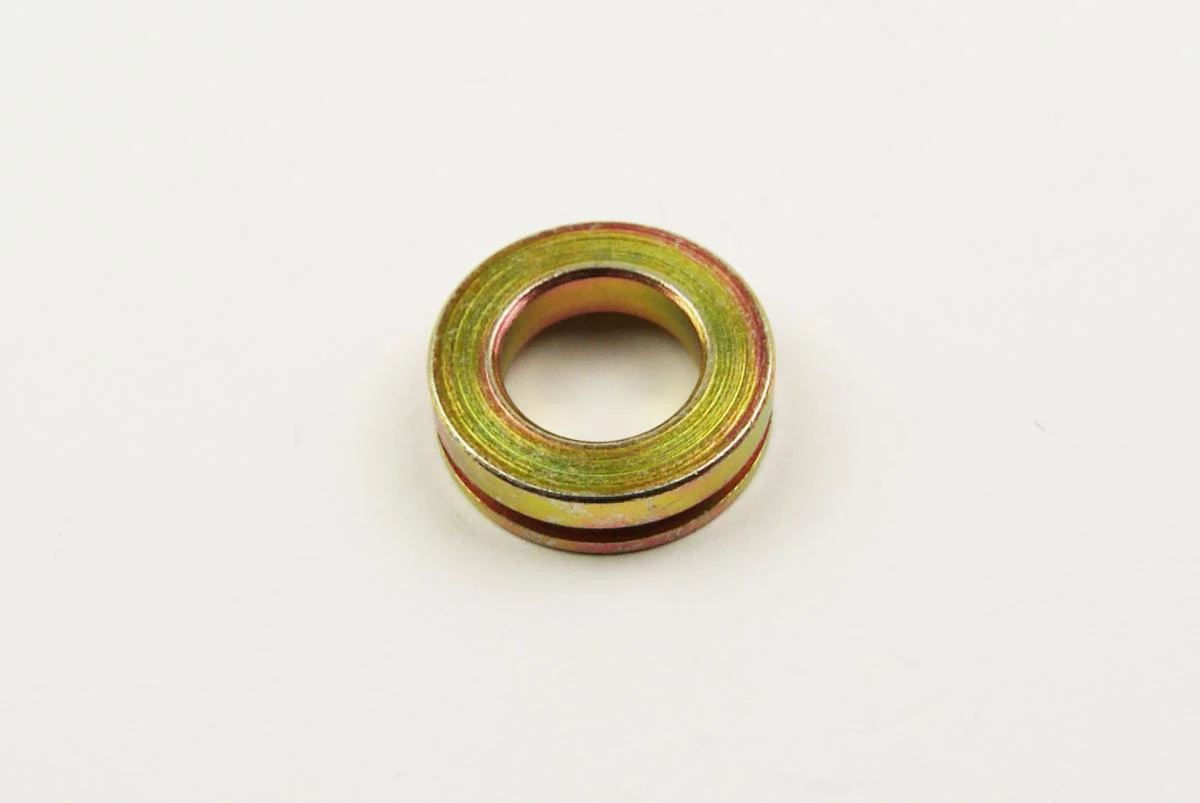

BUSH / CAP SWINGARM 15x26x7.60mm CAP SWING ARM PIVOT 11012-1259 EACH

Part No. 74-405.EACH

Bush / Cap – For Swingarm Roller Pin

Type: Stepped bush with seal groove

Dimensions:

•


  Outer Diameter (OD): 25.98 mm





•


  Overall Width: 7.60 mm




Internal Bore (Stepped):

•


  Primary Inside Diameter: 19.95 mm





•


  Secondary Inside Diameter: 14.97 mm





•


  Step Depth: 2.80 mm




Seal Groove:

•


  Width: 1.80 mm





•


  Depth: 1.20 mm




Interpreted Structure

•


  The bush has a stepped internal bore:






  •


    19.98 mm section





  •


    stepping down to 14.98 mm









•


  The step is 2.80 mm deep from one face.





•


  A seal groove (likely for an O-ring or dust seal) is machined on the outer surface.




Cross reference numbers ONLY. 11012-1259,

1984 KXT250-A1 Tecate SWING ARM ('84 A1)

1984 KXT250-A1 Tecate SWING ARM ('85 A2)



1985 KXT250-A2 Tecate SWING ARM ('84 A1)



1985 KXT250-A2 Tecate SWING ARM ('85 A2)

1987 KSF250-A1 Mojave 250 SWINGARM



1987 KXF250-A1 Tecate 4 SWINGARM



1988 KSF250-A2 Mojave 250 SWINGARM
