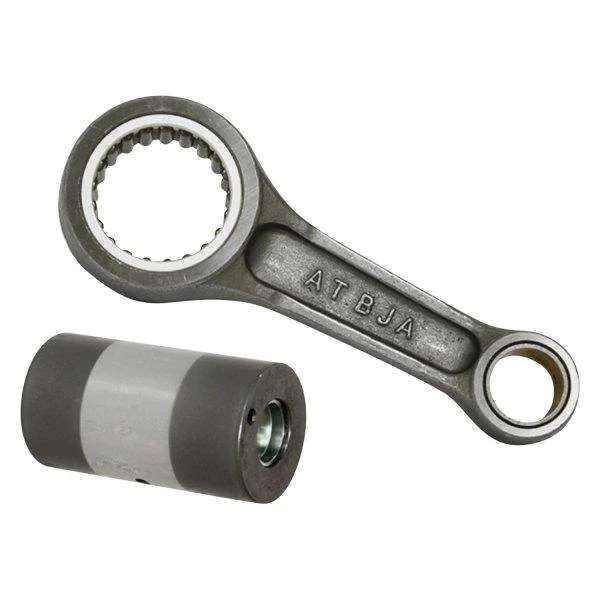

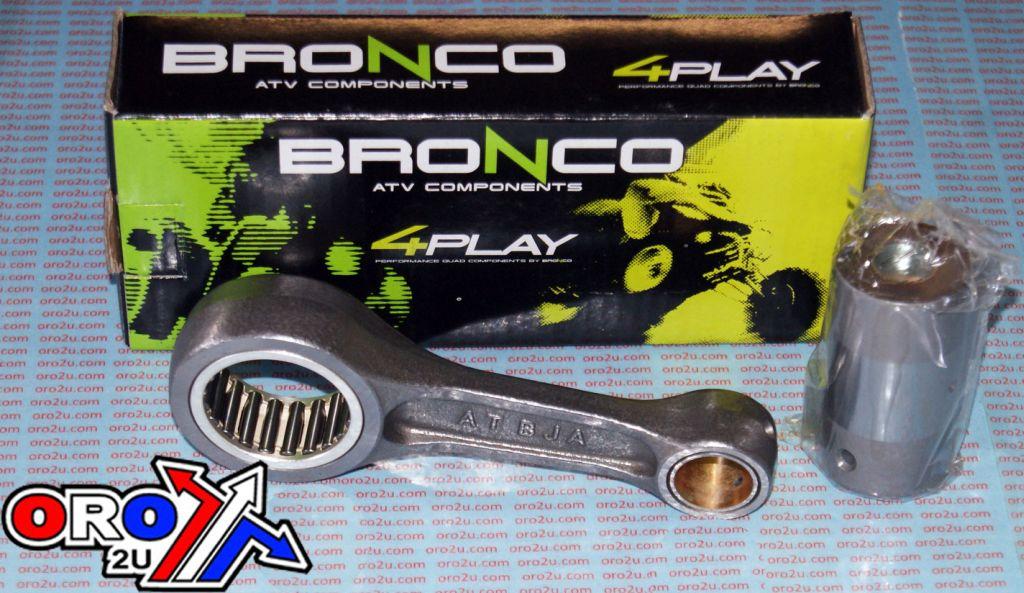

CONNECTING ROD 06-09 LTR450, BRONCO AT-09190 SUZUKI ATV

SUZUKI
LT-R 450 2006-2009,

CONNECTING CONROD ROD REBUILD KIT. BRONCO AT-09190

- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
- Material SNCM220,

SIZE	MM
Centre 2 Centre	107
Small End Bearing	None
Small End Bore Ø	19
Small End Width	19
Big End Bearing	34x42x22
Big End Bore Ø	42
Big End Width	22
Big End Pin Ø	34
Big End Pin Length	61
Washer Thickness	None

Part No. 56-274.DR (oro2u.com)

Cross reference numbers.
12160-45G10 , 12161-45G00,
