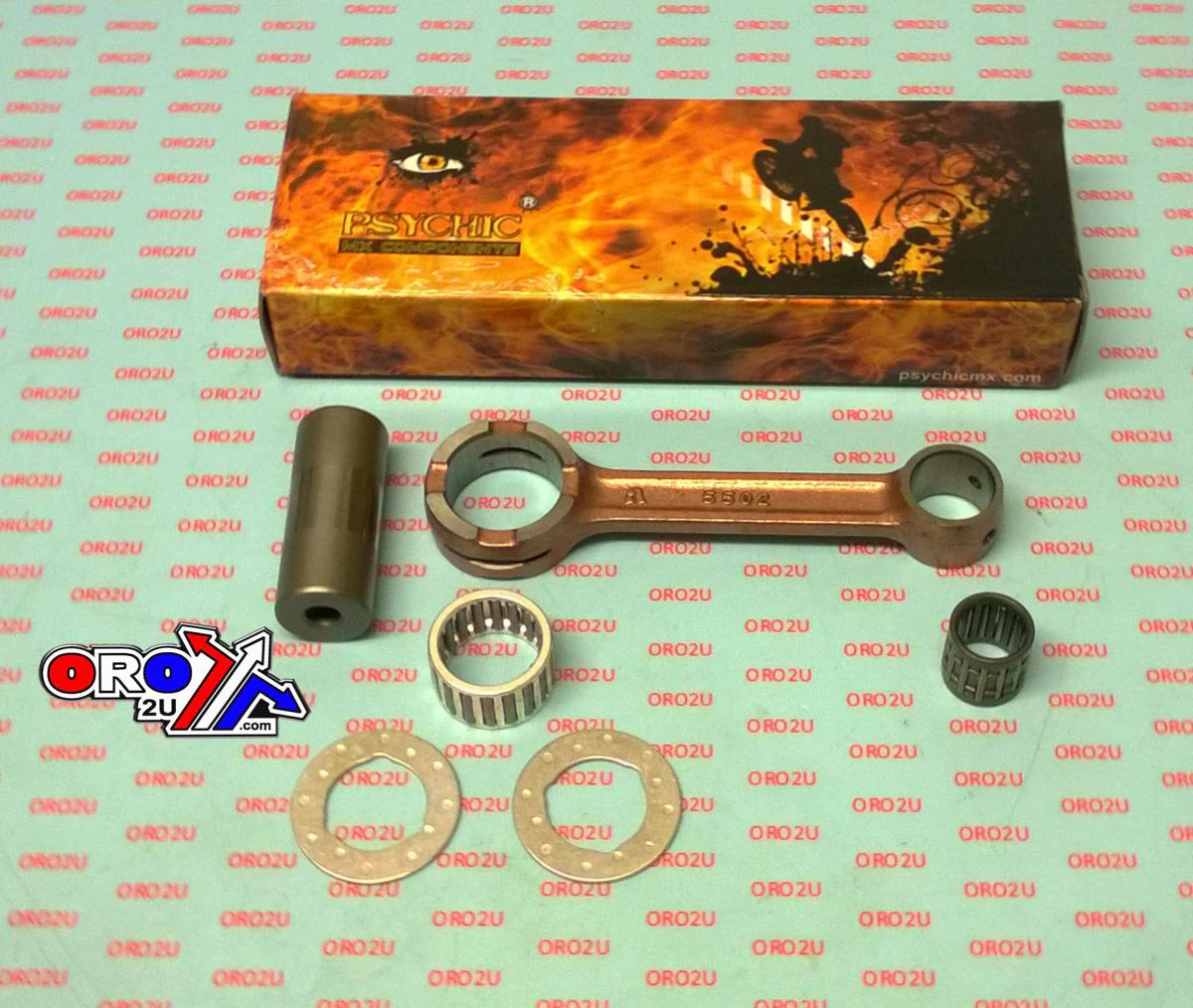

CONNECTING ROD KIT 88-96 RM125, PSYCHIC MX-09052 SUZUKI

Connecting rod rebuild kit for Suzuki RM125 (1988–1996), engineered as a heavy-duty OE replacement. Built using certified chrome alloy steel for enhanced durability and longevity, this complete assembly is compatible with both aftermarket and OE crankshafts.

Features

• Heavy-duty connecting rod designed as an OE replacement.


• Constructed from certified chrome alloy steel for superior strength.


• Crankpins are hot-rolled ASTM steel and case-hardened for durability.


• Utilizes advanced caged needle roller bearing designs for high rpm performance.


• Thrust washers made from bronze phosphor with a silver coating.


• Complete assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers if required.


• Fully compatible with aftermarket and OE crankshafts.

Specifications

• Material: SNCM220


• Centre-to-Centre: 105 mm


• Small End Bearing: 15x19x19.80 mm


• Small End Bore Ø: 19 mm


• Small End Width: 18 mm


• Big End Bearing: 22x28x15.8 mm


• Big End Bore Ø: 28 mm


• Big End Width: 16 mm


• Big End Pin Ø: 22 mm


• Big End Pin Length: 53 mm


• Washer Thickness: 1.0 mm

Cross Reference OEM Part Numbers

• Suzuki: 12161-01B41


• Suzuki: 12161-27C00-0B0


• Suzuki: 12161-27C00-0D0


• Suzuki: 12161-27C10


• Suzuki: 12161-43D00


• Hotrods 8110


• ProX 03-3207


• Wossner P2015

Vehicle Fitments

• Suzuki RM125: 1988–1996

Part Number: 56-924.DR
