The Story

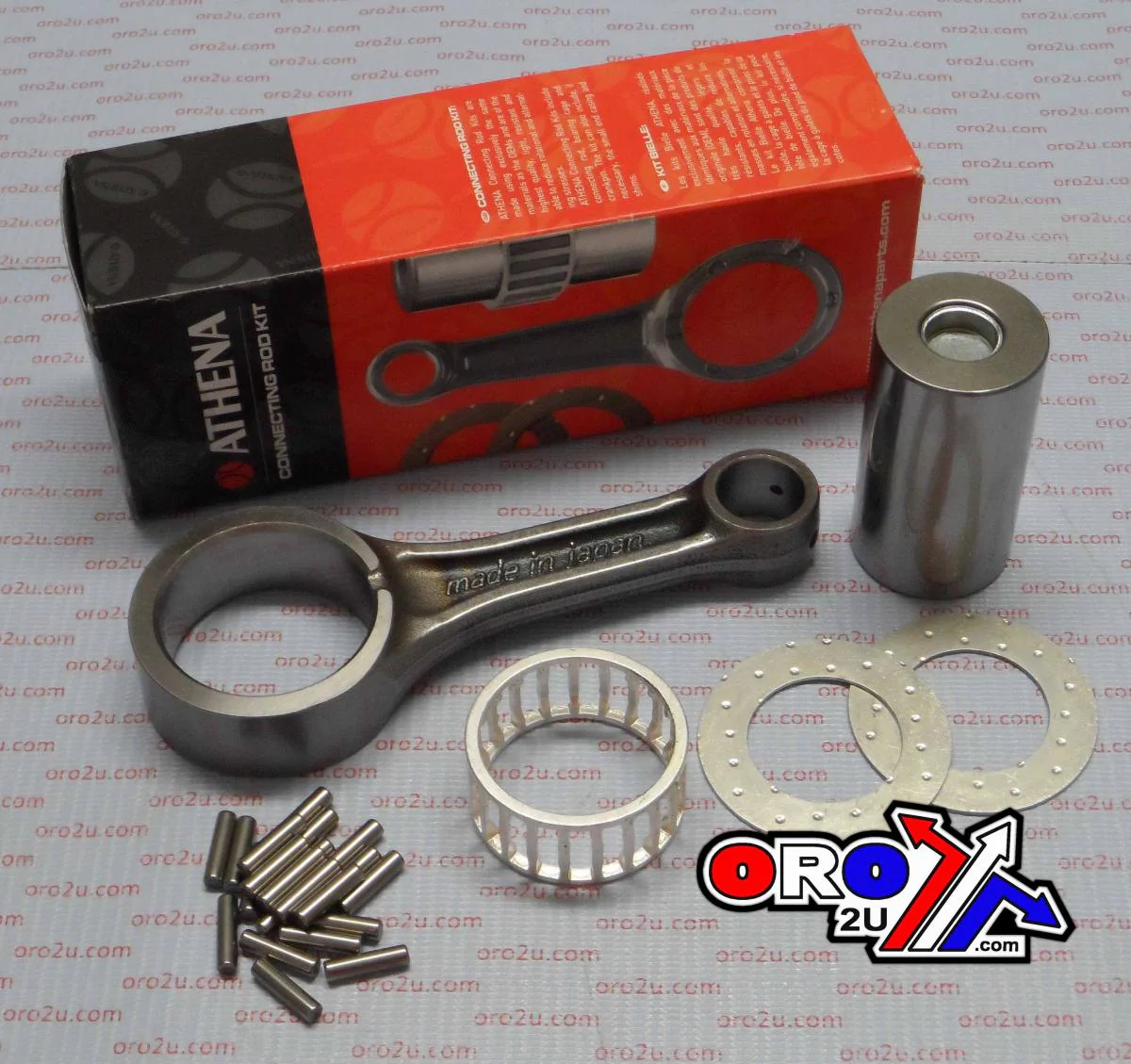

ATHENA Connecting Rod Offroad Kit - P40321014
Description
Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
Technical features
- Big End Bore (mm) 41.00
- Big End Pin Diameter (mm) 33.00
- Big End Width (mm) 20.00
- Center To Center (mm) 102.00
- Net Weight (Kg) 0.72
- Piston Pin Diameter (mm) 19.00
- Small End Width (mm) 18.00
- Washer Thickness (mm) 1.00
Partner Cross Reference code
- 13000-MEN-A50
- 13000-MEN-A70
- PSYCHIC MX-09088
- HOTRODS 8682
- PROX 03.1409
- WOSSNER P4027
Vehicle compatibility
- HONDA CRF R 450 cc 2009/2016
Part No. 56-278.ATH (oro2u.com)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
