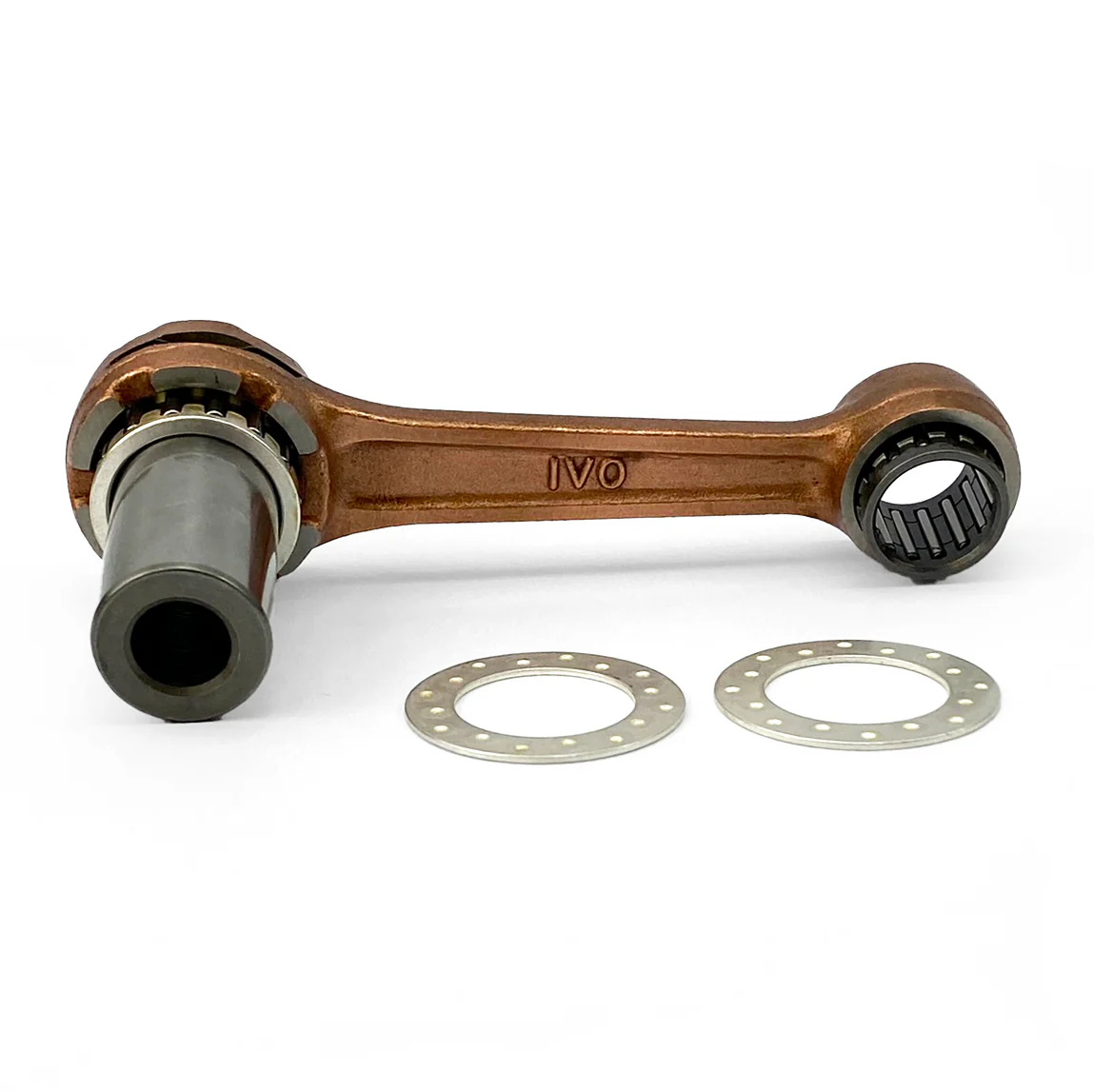

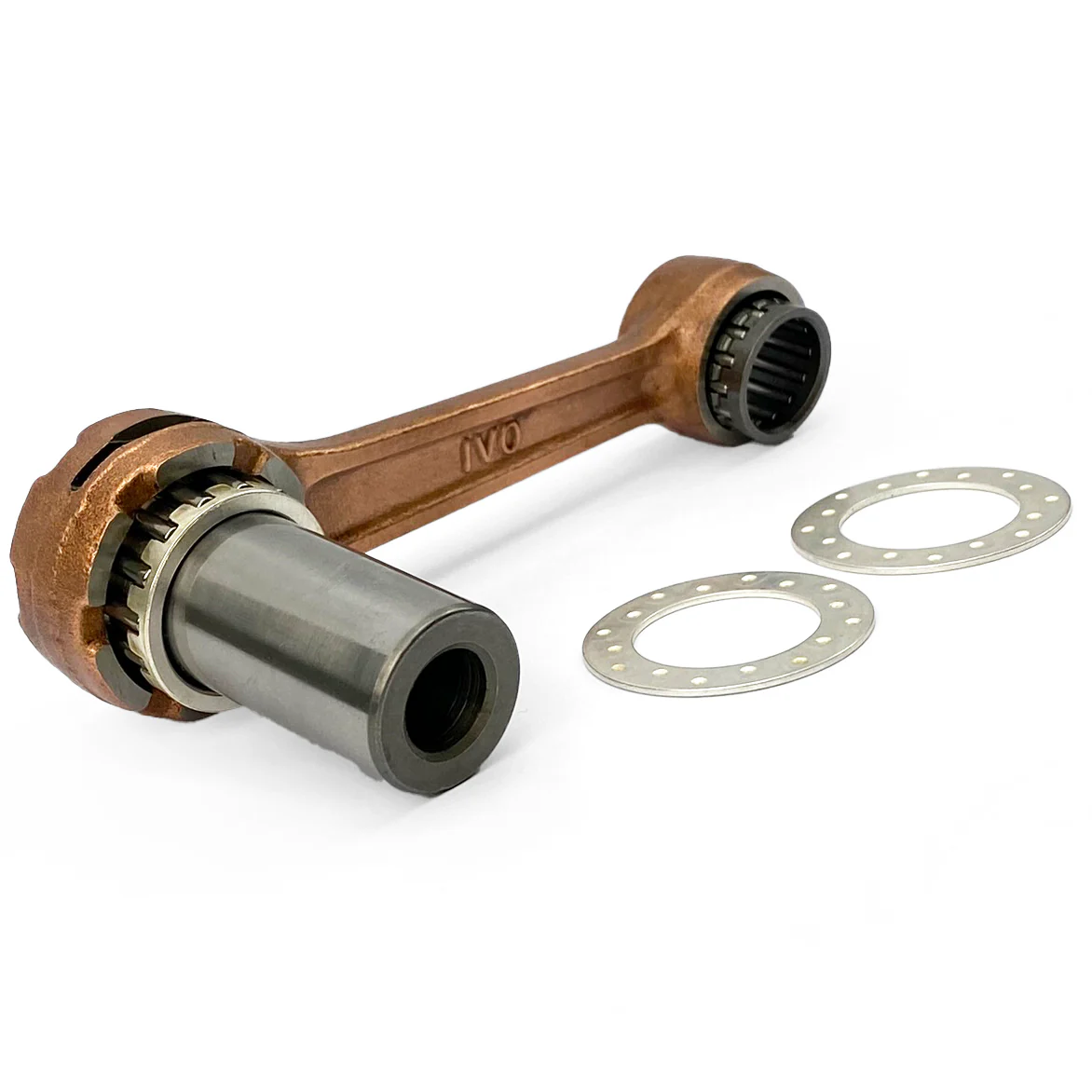

CONNECTING CONROD ROD REBUILD KIT
YAMAHA
- RS-125 1975-80
- RX-125 1979-80
- DT125 ALL
- DT125K ALL
- RD135 ALL
- RX125 DT125 NF125 RD135 RS125 RX135 RXK DTK125 DT175
Specifications
- Heavy-duty OE replacement connecting rods.
- Certified Chorme alloy steel provides superior strength.
- Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
- Thrust washers are manufactured from bronze phosphor and are silver coated.
- Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
- Fully Compatible with after market and OE crankshafts.
|
SIZE |
MM |
|
Centre 2 Centre Over All Length |
100 131.50 |
|
Small End Bearing |
16x20x19.5 |
|
Small End Bore Ø |
16 |
|
Small End Width |
20 |
|
Big End Bearing |
22x28x15.8 |
|
Big End Bore Ø |
28 |
|
Big End Width |
16 |
|
Big End Pin Ø |
22 |
|
Big End Pin Length |
54.50 |
|
Washer Thickness |
22x34x1 |
SIZE mm. A = 100, B = 16, C = 22, D = 16, E = 16, F = 54.5
Description
- Meets or exceeds OEM quality.
- Direct oem replacement.
- Stock mounting locations.
- Designed to handle increased power loads.
- Best value for money
- All are made to OEM specifications and match the original equipment in appearance.
- Please check the image before ordering to avoid mistakes.
- ORO products are a high quality replacement part and carries our guarantee of your satisfaction.
- Easy to install but if unsure please use a professional
Cross Reference Numbers Only
- RY-2018
- IVO-11651-00-00,
- MX-09094,
- 1V0-11650-00,
- 1V0-11651-00,
- 3M5-11650-20,
- 4Y2-11650-00,
