The Story

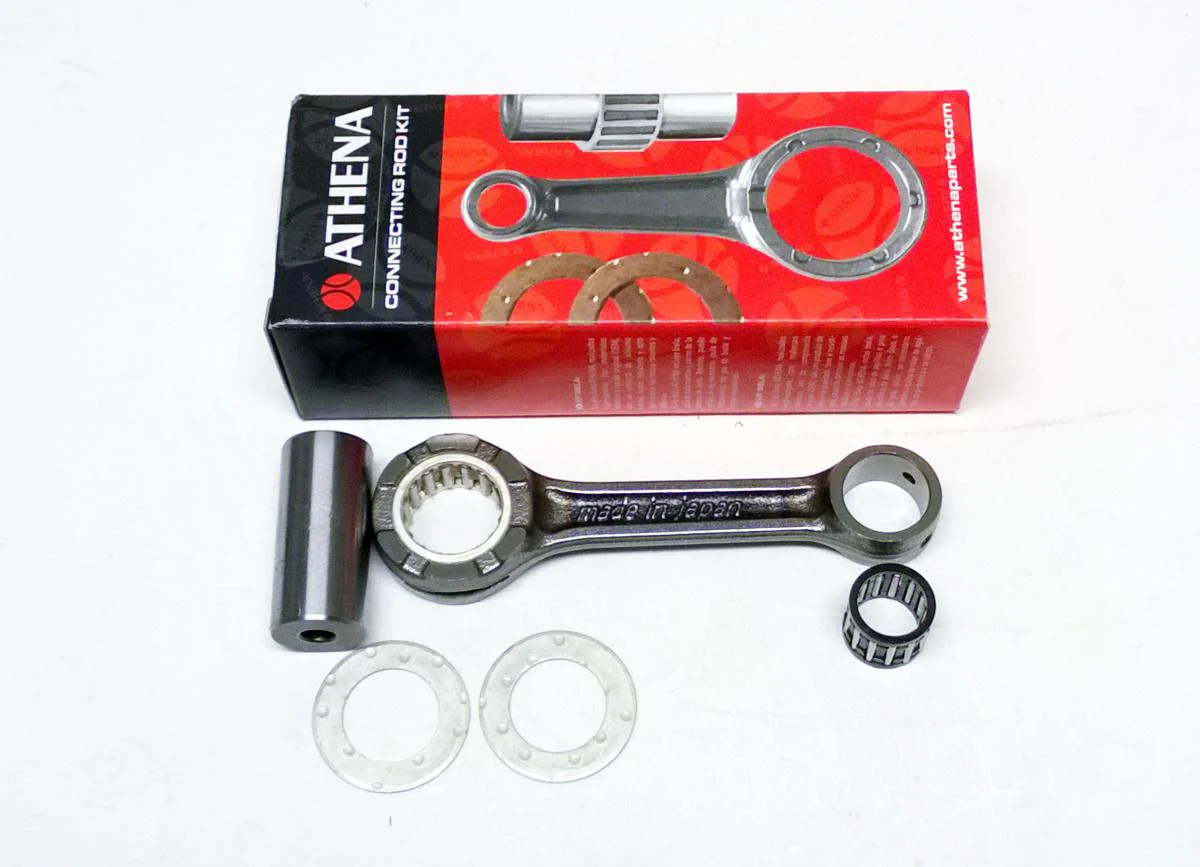

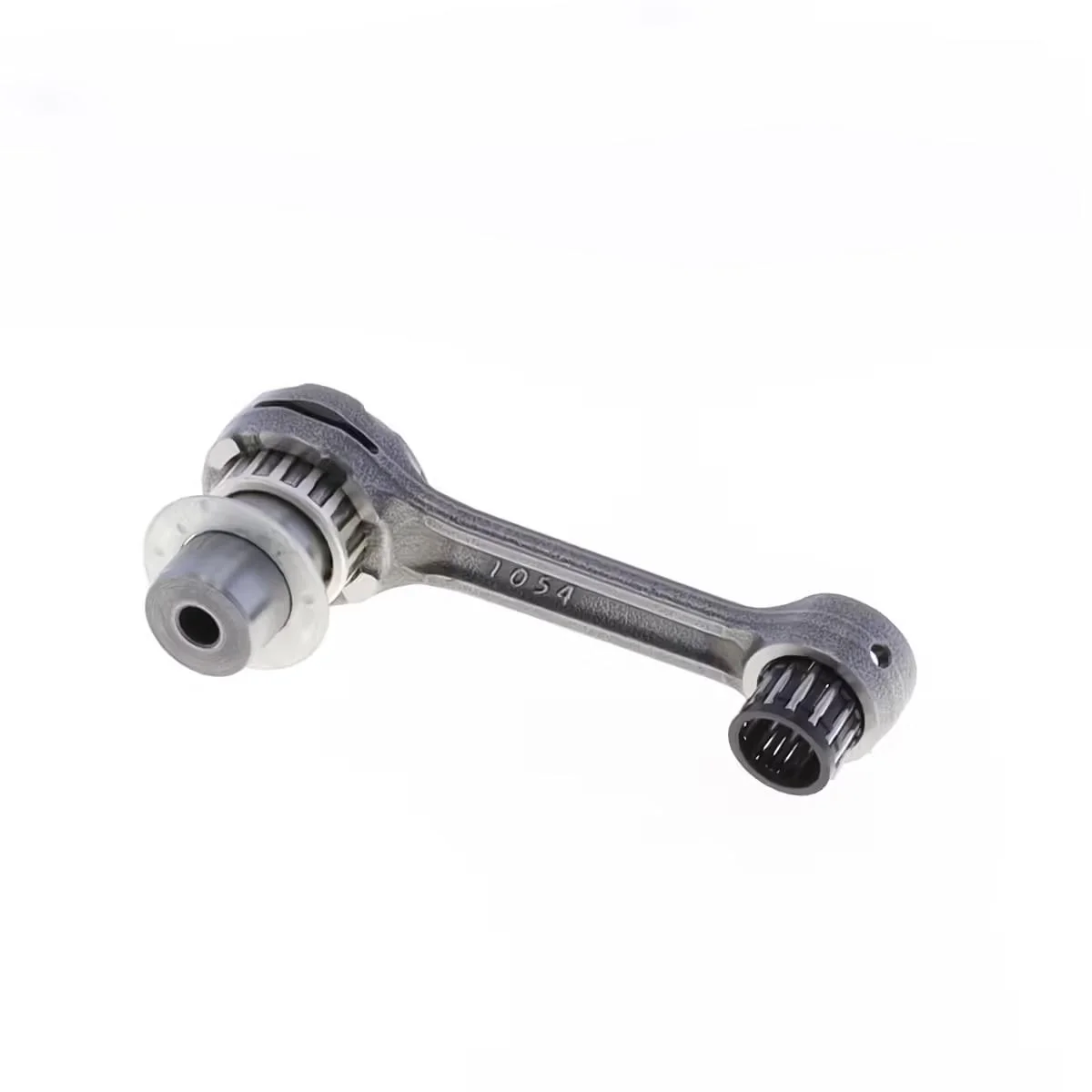

ATHENA Connecting Rod Offroad Kit - P40321054
Description
Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
Technical features
- Big End Bore (mm) 26.00
- Big End Pin Diameter (mm) 20.00
- Big End Width (mm) 14.00
- Center To Center (mm) 92.00
- Net Weight (Kg) 0.24
- Piston Pin Diameter (mm) 18.00
- Small End Width (mm) 14.00
- Washer Thickness (mm) 1.00
Vehicle compatibility
- YAMAHA YZ 85 cc 2018/2025
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
ATHENA Connecting Rod Offroad Kit - P40321054
Description
Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
Technical features
- Big End Bore (mm) 26.00
- Big End Pin Diameter (mm) 20.00
- Big End Width (mm) 14.00
- Center To Center (mm) 92.00
- Net Weight (Kg) 0.24
- Piston Pin Diameter (mm) 18.00
- Small End Width (mm) 14.00
- Washer Thickness (mm) 1.00
Vehicle compatibility
- YAMAHA YZ 85 cc 2018/2025
