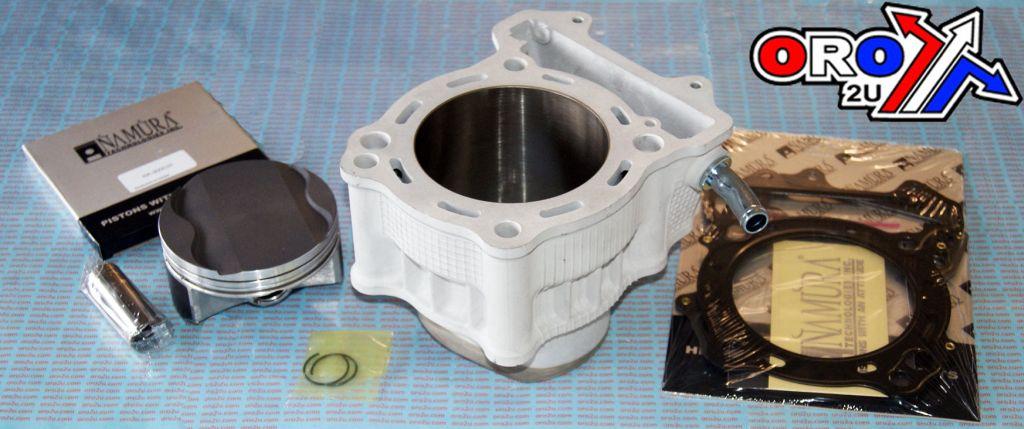

CYLINDER KIT 90mm LTZ DRZ 400, PSYCHIC AT-09462K KAWASAKI KFX KLX 400 SUZUKI CA-30000K
HomeStore

CYLINDER KIT 90mm LTZ DRZ 400, PSYCHIC AT-09462K KAWASAKI KFX KLX 400 SUZUKI CA-30000K

CYLINDER KIT 90mm LTZ DRZ 400, PSYCHIC AT-09462K KAWASAKI KFX KLX 400 SUZUKI CA-30000K

$436.00
CYLINDER KIT 90mm LTZ DRZ 400, PSYCHIC AT-09462K KAWASAKI KFX KLX 400 SUZUKI CA-30000K—
$436.00

The Story

Kawasaki
2003-06 KFX 400,
2003-04 KLX 400,
Suzuki
2000-09 DR-Z 400E,
2000-09 DR-Z 400K,
2000-09 DR-Z 400S ,
2000-09 DR-Z 400SM,
2000-09 DRZ 400,
2003-09 LTZ 400,
Arctic Cat
2004-08 DVX 400,

CYLINDER REBUILD KIT. BORE 90.00mm PSYCHIC AT-09462K.

(NIKASIL PLATED)
BRAND NEW AND DESIGNED STRICTLY OFF OF OEM SPECIFICATIONS. CAST FROM AB4C ALUMINUM WITH NIKASIL PLATED SLEEVES. THIS ALLOWS OUR CYLINDERS TO HAVE SOME OF THE BEST WEAR CAPABILITIES IN THE MARKET. MOST CYLINDERS ARE SIMPLE DROP IN INSTALL WITH NO CASE MODIFICATIONS NECESSARY.

- Sleeve. Nikasail.
- Hardness HV500~600.
- Thickness 0.08 +/- 0.02mm.
- Cylinder Material JIS AC4B-T6 Aluminum, hardness   HR65up.

Part No. 56-K112.90.KIT       (Distributed by oro2u.com)

Cross reference numbers.
PSYCHIC AT-09462K,
422-40001, 0931-0139,
CW 40001,
KAWASAKI: 11005-S007
SUZUKI: 11210-29F11-0F0
SUZUKI: 11210-29F20-0F0
ARCTIC CAT: 3402-844

CYLINDER KIT COMPONENTS
AT-09462       STD CYL
NA-30002       NAMURA PISTON KIT
NA-30002T       NAMURA TOP GASKET SET

CYLINDER KIT 90mm LTZ DRZ 400, PSYCHIC AT-09462K KAWASAKI KFX KLX 400 SUZUKI CA-30000K - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

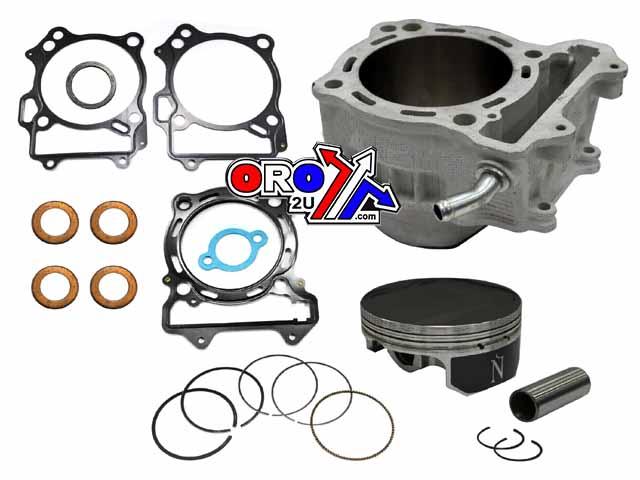

CYLINDER KIT 90mm LTZ DRZ 400, PSYCHIC AT-09462K KAWASAKI KFX KLX 400 SUZUKI CA-30000K - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Kawasaki
2003-06 KFX 400,
2003-04 KLX 400,
Suzuki
2000-09 DR-Z 400E,
2000-09 DR-Z 400K,
2000-09 DR-Z 400S ,
2000-09 DR-Z 400SM,
2000-09 DRZ 400,
2003-09 LTZ 400,
Arctic Cat
2004-08 DVX 400,

CYLINDER REBUILD KIT. BORE 90.00mm PSYCHIC AT-09462K.

(NIKASIL PLATED)
BRAND NEW AND DESIGNED STRICTLY OFF OF OEM SPECIFICATIONS. CAST FROM AB4C ALUMINUM WITH NIKASIL PLATED SLEEVES. THIS ALLOWS OUR CYLINDERS TO HAVE SOME OF THE BEST WEAR CAPABILITIES IN THE MARKET. MOST CYLINDERS ARE SIMPLE DROP IN INSTALL WITH NO CASE MODIFICATIONS NECESSARY.

- Sleeve. Nikasail.
- Hardness HV500~600.
- Thickness 0.08 +/- 0.02mm.
- Cylinder Material JIS AC4B-T6 Aluminum, hardness   HR65up.

Part No. 56-K112.90.KIT       (Distributed by oro2u.com)

Cross reference numbers.
PSYCHIC AT-09462K,
422-40001, 0931-0139,
CW 40001,
KAWASAKI: 11005-S007
SUZUKI: 11210-29F11-0F0
SUZUKI: 11210-29F20-0F0
ARCTIC CAT: 3402-844

CYLINDER KIT COMPONENTS
AT-09462       STD CYL
NA-30002       NAMURA PISTON KIT
NA-30002T       NAMURA TOP GASKET SET
