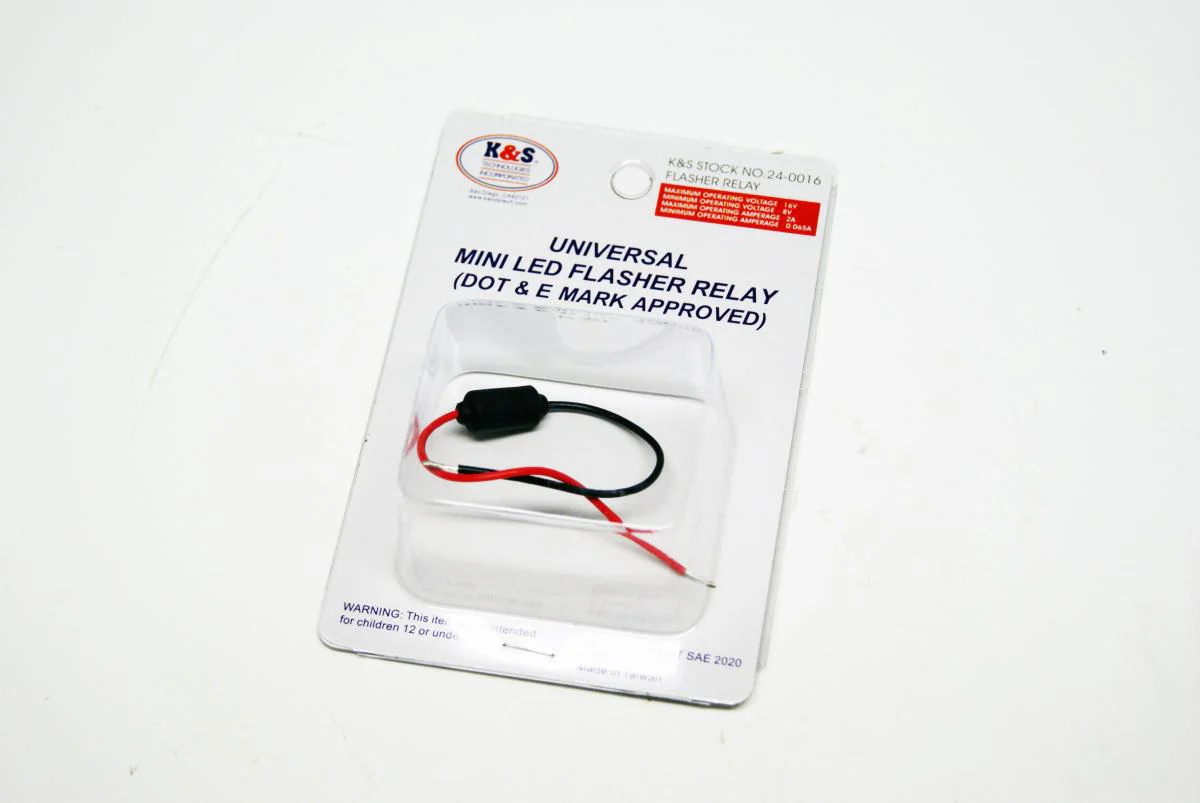

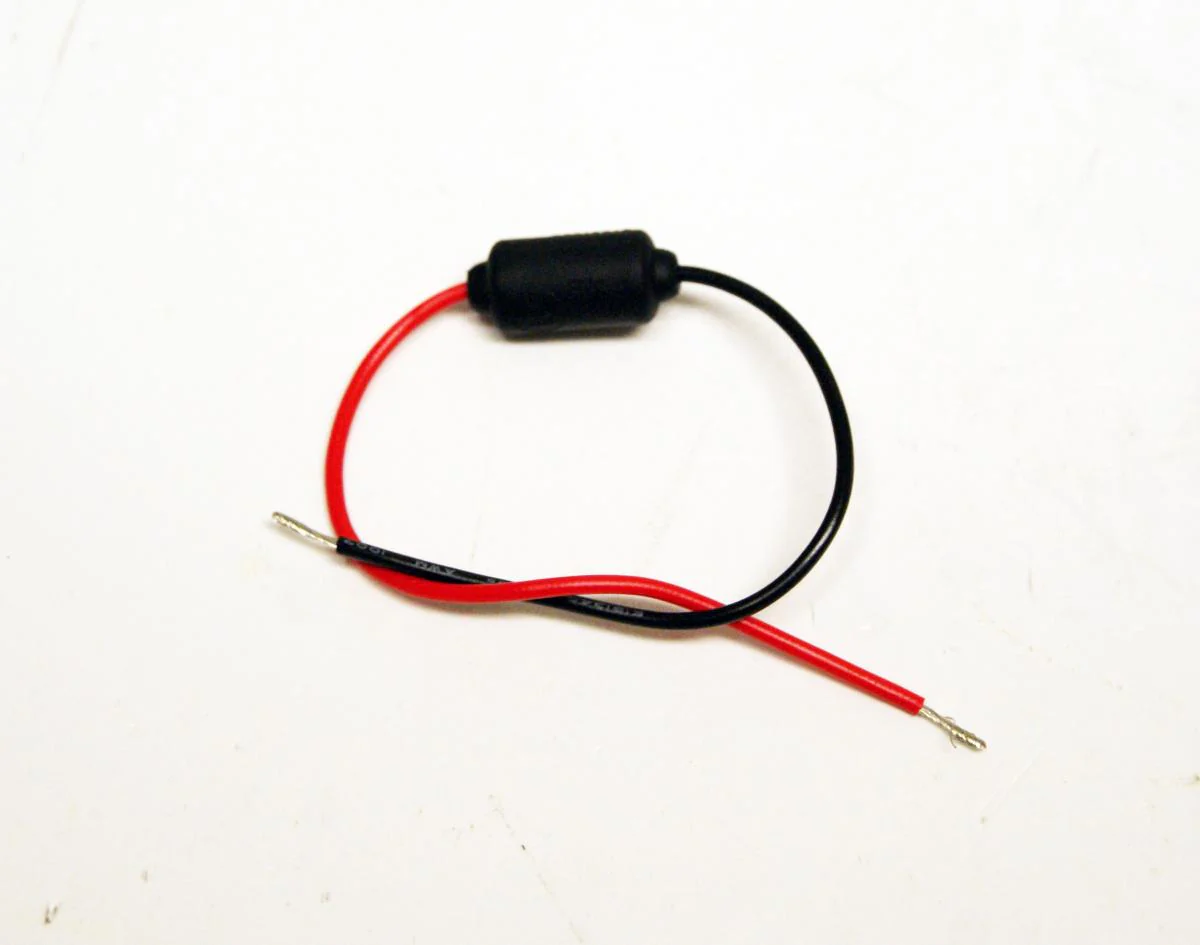

FLASHER DELAY RELAY LED MINI 24-0016

This DOT and E-mark approved mini LED flasher relay is designed for motorcycle turn signal applications, including replacement of the OE flasher relay or use in custom wiring builds. It helps correct fast flashing commonly encountered when LED turn signals are fitted and can also be used with regular incandescent bulb turn signals.

Features

• Two-wire relay for simple installation


• Designed to eliminate fast flashing when fitting LED turn signals


• Suitable for LED and incandescent bulb turn signals


• Can be used as an OE flasher relay replacement or for custom builds


• Does not require in-line resistors when used with LED turn signals


• Ultra-compact design allows concealed installation


• Supplied as 1 flasher relay

Specifications

• Maximum operating voltage: 16 V


• Minimum operating voltage: 8 V


• Maximum operating amperage: 2 A


• Minimum operating amperage: 0.065 A


• Dimensions: 7/8 in x 3/8 in


• Colour: black

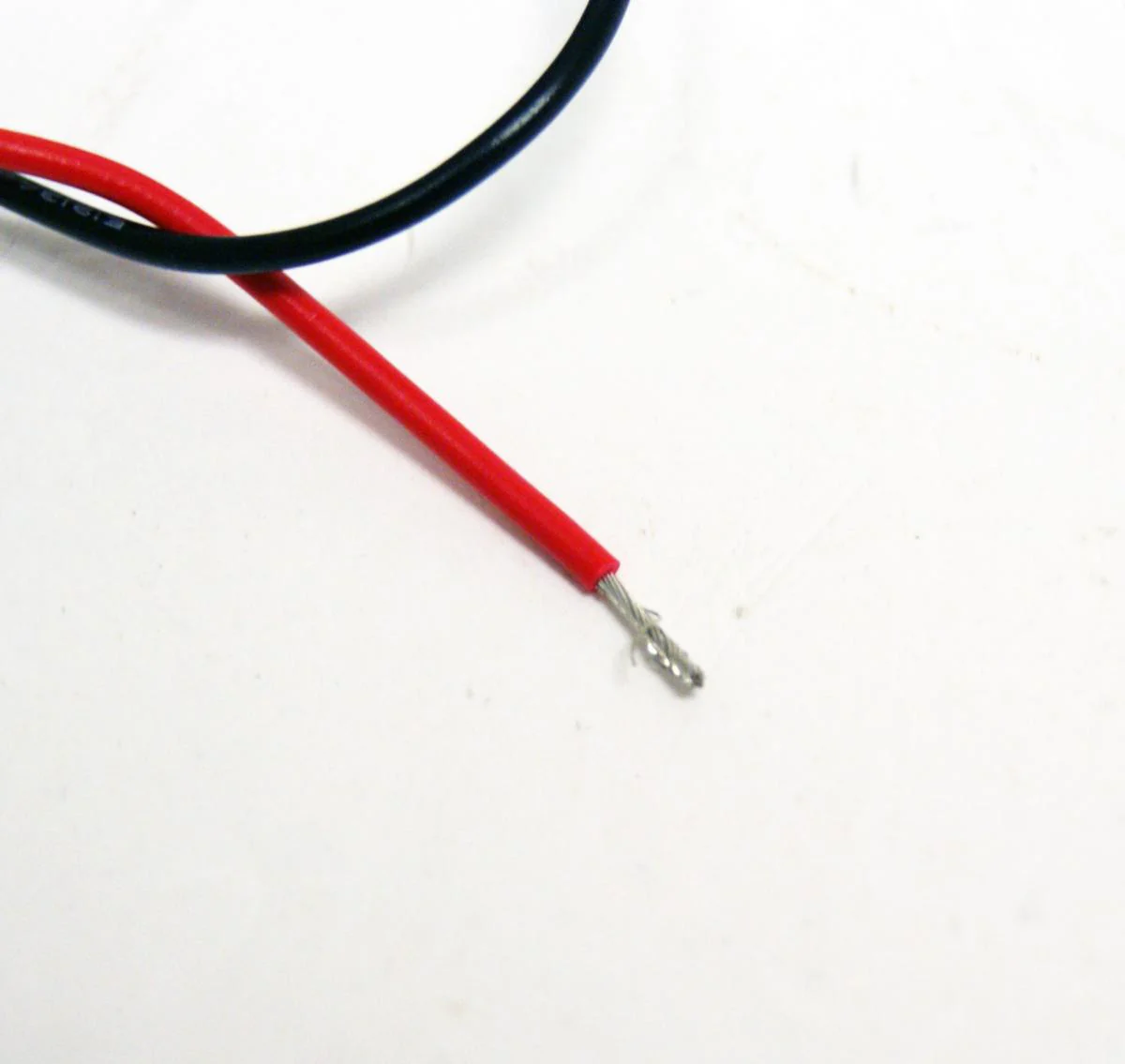

• Wire length: 4 in per side


• Approval: DOT and E-mark

Vehicle Fitments

•


  Universal motorcycle applications
