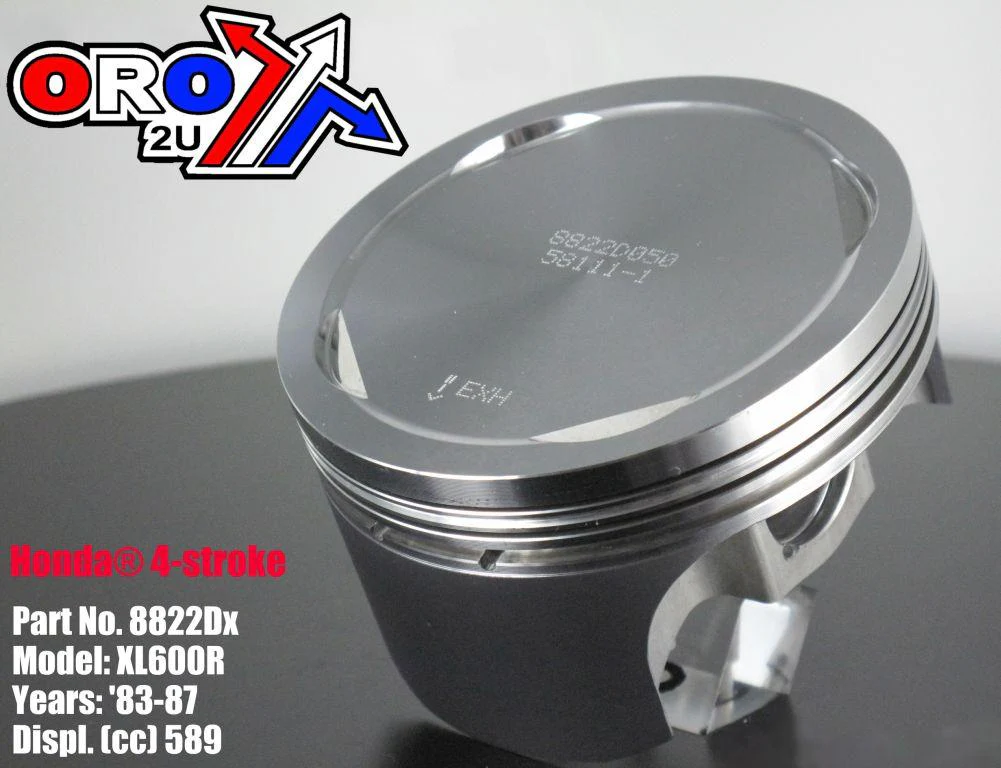

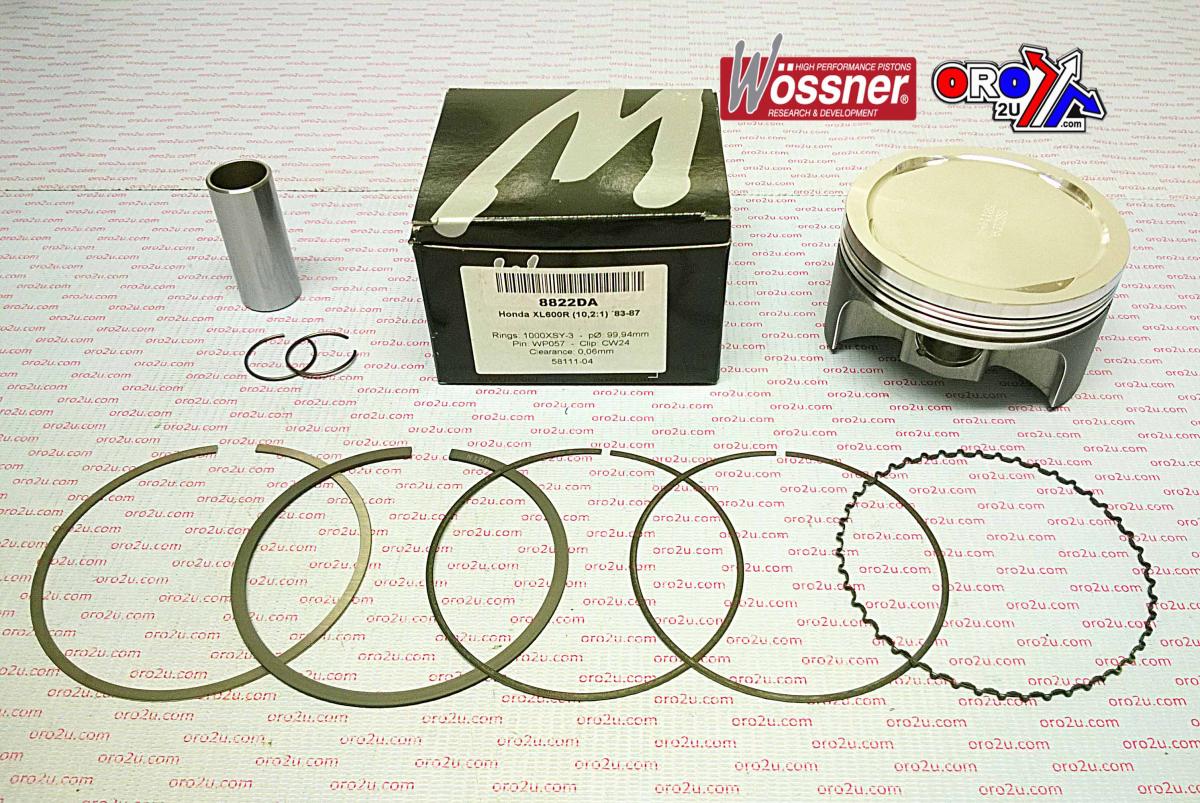

PISTON 83-87 XL600R 100.00, WOSSNER 8822DA HONDA 13110-MK2-043

This Wossner forged piston kit is a standard-size replacement specifically designed for the Honda XL600R models from 1983 to 1987. Built for enhanced strength and optimal combustion efficiency, this piston features a high compression ratio and precise machining for long-lasting performance in four-stroke engines.

Features

•


  Forged piston construction for superior durability under high stress





•


  Elliptical design promotes even bearing surface during thermal expansion





•


  Efficient heat dissipation from combustion chamber to cylinder walls





•


  Minimises localised pressure and helps prevent piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore Size: 100.00mm





•


  Actual Piston Size: 99.94mm





•


  Display Displacement: 589 cm³





•


  Stroke: 75.00mm





•


  Piston Clearance: 0.06mm





•


  Wossner Compression Ratio: 10.20:1





•


  OEM Compression Ratio: 9.00:1





•


  Dome Volume: -5.90 cm³





•


  Compression Height: 32.80mm





•


  Circlip Part Number: CW24





•


  Pin Part Number: WP057





•


  Ring Set Part Number: 1000XSY




Cross-Reference OEM Part Numbers

•


  Part No: 56-W926.A.WO





•


  Cross Reference: 13110-MK2-043, 4366M09700




Vehicle Fitments

•


  Honda XL600R (1983–1987)
