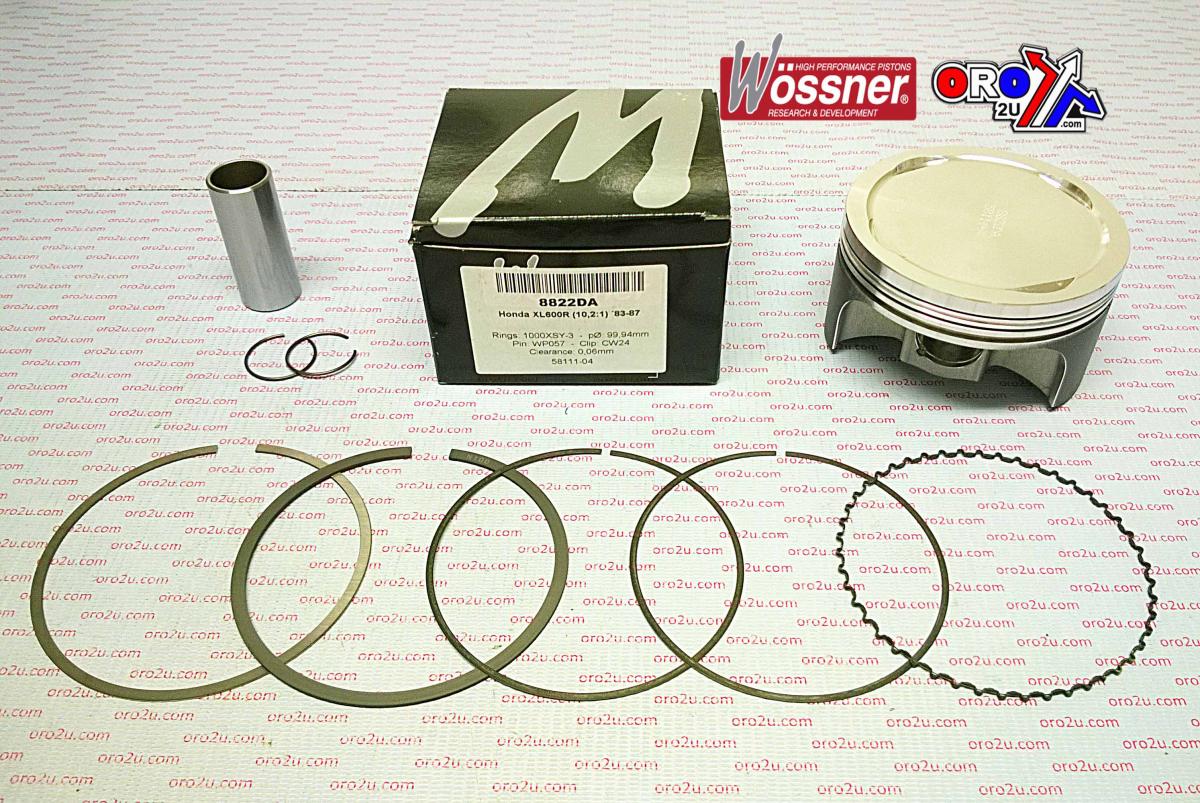

PISTON 83-87 XL600R 100.50, WOSSNER 8822D050 HONDA

This Wossner forged piston kit is a +0.50mm oversize replacement designed for Honda XL600R models from 1983 to 1987. Engineered for durability and thermal efficiency, it offers enhanced performance with a higher compression ratio compared to OEM specifications.

Features

•


  Forged piston construction ensures high strength and wear resistance





•


  Elliptical design allows uniform bearing surface during heat expansion





•


  Optimised for effective heat dissipation to the cylinder walls





•


  Helps prevent piston collapse by evenly distributing thrust loads





•


  Manufactured in Germany




Specifications

•


  Bore Size: 100.50mm





•


  Actual Piston Size: 100.44mm





•


  Display Displacement: 589 cm³





•


  Stroke: 75.00mm





•


  Piston Clearance: 0.06mm





•


  Wossner Compression Ratio: 10.20:1





•


  OEM Compression Ratio: 9.00:1





•


  Dome Volume: -5.90 cm³





•


  Compression Height: 32.80mm





•


  Circlip Part Number: CW24





•


  Pin Part Number: WP057





•


  Ring Set Part Number: 1005XSY




Cross-Reference OEM Part Numbers

•


  Part No: 56-W926_050.WO




Vehicle Fitments

•


  Honda XL600R (1983–1987)
