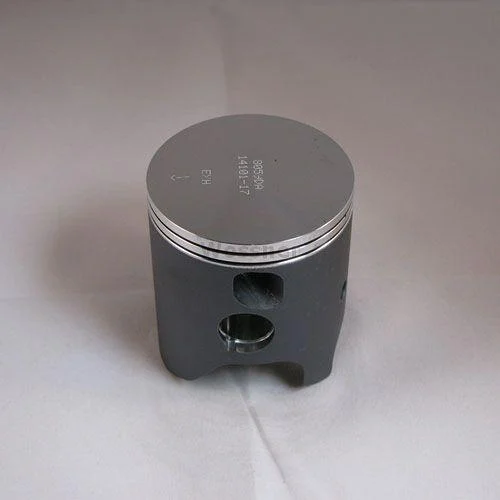

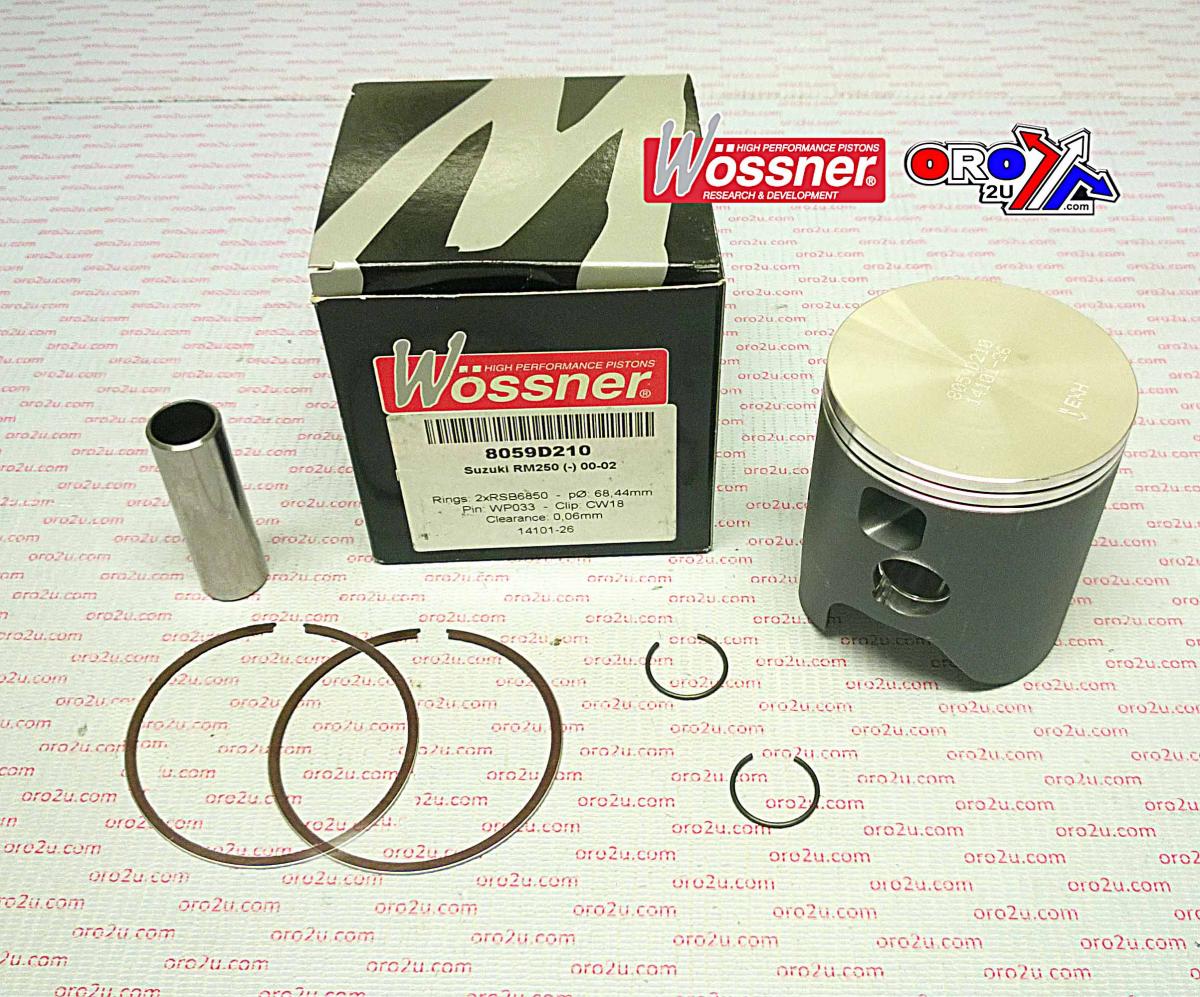

PISTON KIT 00-02 RM250 66.40 B, WOSSNER 8059DB SUZUKI MX

This Wossner piston kit with a 66.41mm bore offers a +0.01mm oversize fitment for the Suzuki RM250 models from 2000 to 2002. Engineered from forged materials, it is designed to endure high thermal and mechanical stresses while maintaining precise piston-to-wall clearance and optimal engine performance.

Features

•


  Forged piston delivers exceptional strength and resistance to wear





•


  Engineered for efficient heat dissipation from the combustion chamber to the cylinder wall





•


  Elliptical design promotes uniform expansion and load distribution





•


  Helps prevent piston collapse by minimising localised pressure





•


  Manufactured with precision in Germany




Specifications

•


  Bore: 66.41 mm





•


  Actual piston size: 66.35 mm





•


  Stroke: 72.00 mm





•


  Display volume: 249 cm³





•


  Clearance: 0.06 mm





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height: 38.00 mm




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8059DB





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6640 x 4





•


  Rod: P2026





•


  Part No: 56-W756.B.WO




Vehicle Fitments

•


  Suzuki RM250 2000





•


  Suzuki RM250 2001





•


  Suzuki RM250 2002
