PISTON KIT 00-03 RM125 56.00, WOSSNER 8061D200 SUZUKI MX

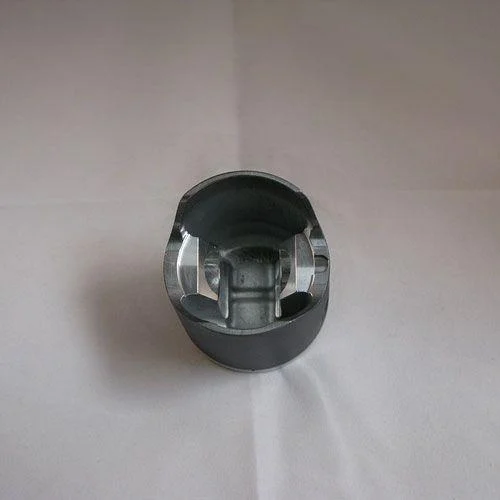

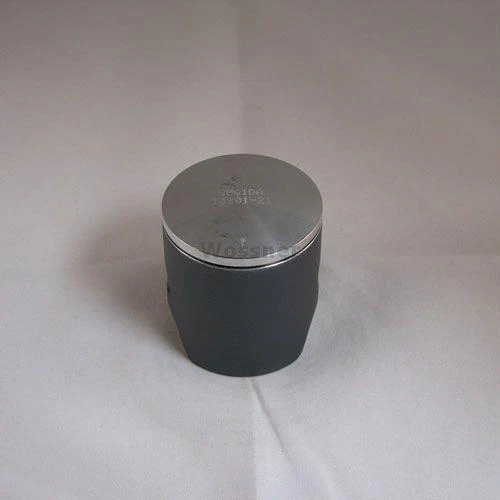

This Wossner piston kit features a 56.00mm bore and is a +2.00mm oversize component tailored for the Suzuki RM125 model years 2000 through 2003. Constructed from high-strength forged material, it delivers enhanced thermal conductivity and structural integrity under demanding 2-stroke engine conditions.

Features

•


  Forged piston construction provides increased durability and fatigue resistance





•


  Optimised for efficient heat transfer from the combustion chamber to the cylinder wall





•


  Elliptical design maintains even load distribution during heat expansion





•


  Reduces risk of localised stress and piston collapse





•


  Manufactured in Germany with high precision




Specifications

•


  Bore: 56.00 mm





•


  Actual piston size: 55.95 mm





•


  Stroke: 54.50 mm





•


  Display volume: 125 cm³





•


  Clearance: 0.05 mm





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height: 29.50 mm




Cross-Reference OEM Part Numbers

•


  Piston Kit: 8061D200





•


  Lock: CW15





•


  Pin: WP032





•


  Ring Set: RSB5600





•


  Rod: P2013





•


  Part No: 56-W754.200.WO




Vehicle Fitments

•


  Suzuki RM125 2000





•


  Suzuki RM125 2001





•


  Suzuki RM125 2002





•


  Suzuki RM125 2003
