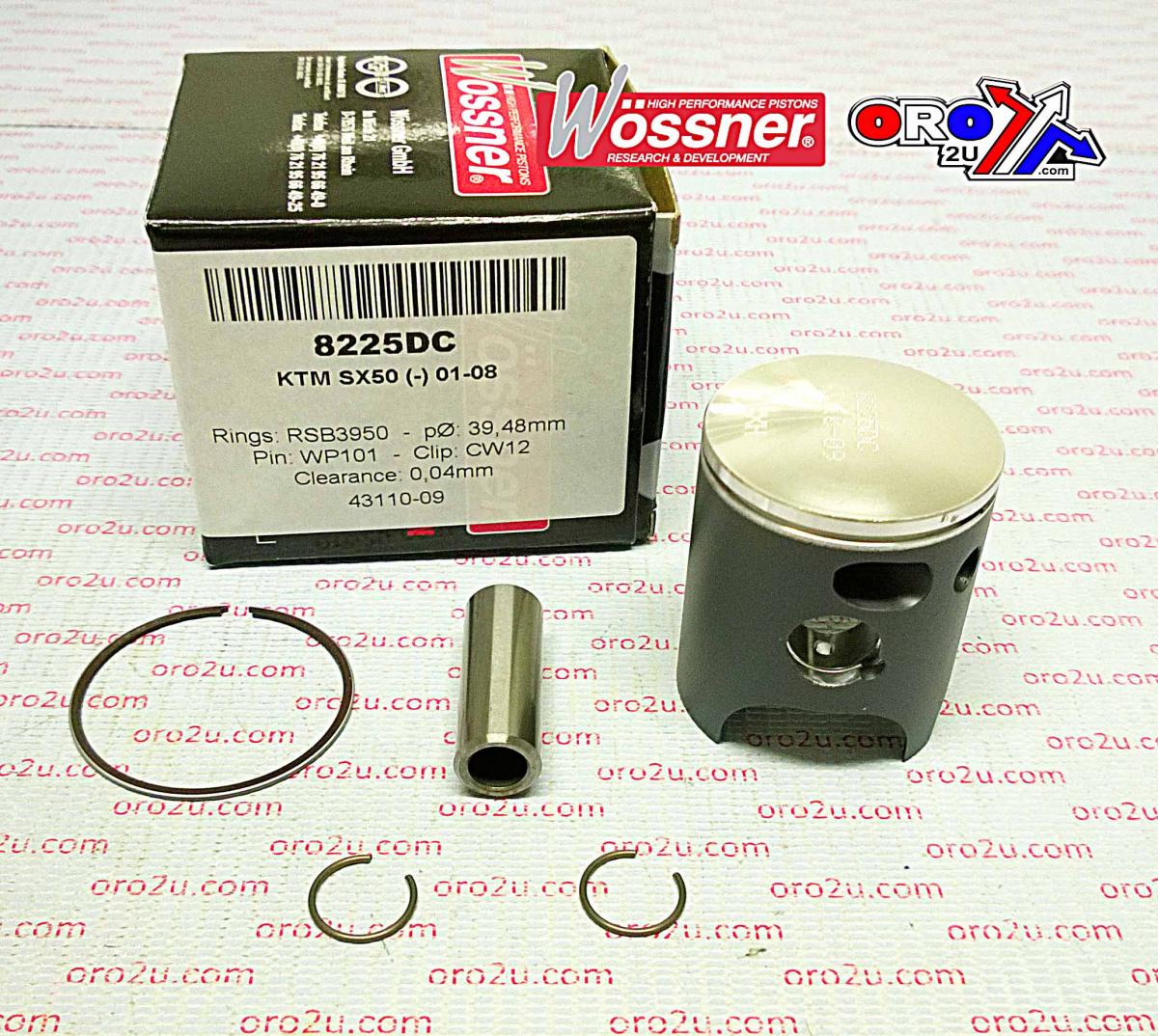

PISTON KIT 01-08 KTM50 SX, WOSSNER 8225DC FORGED MX

This Wossner forged piston kit with a 39.52mm bore (+0.02mm oversize) is specifically engineered for KTM SX50 models from 2001 to 2008. Designed to deliver consistent performance in high-revving two-stroke engines, it features a precision-machined elliptical profile for even load distribution and superior durability. Manufactured in Germany, this piston is ideal for engines requiring minimal oversizing during rebuilds.

Features

•


  Forged construction ensures enhanced strength and long-lasting performance





•


  Optimised for effective heat transfer from combustion chamber to cylinder walls





•


  Elliptical design minimises stress concentrations and prevents piston collapse





•


  Made in Germany




Specifications

•


  Bore: 39.52mm





•


  Actual Bore: 39.47mm





•


  Engine Displacement: 50 cm³





•


  Stroke: 40.00mm





•


  Clearance: 0.04mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Compression Height: 21.60mm





•


  Lock Part Number: CW12





•


  Pin Part Number: WP101





•


  Ring Set Part Number: RSB3950




Vehicle Fitments

•


  2001 KTM SX50





•


  2002 KTM SX50





•


  2003 KTM SX50





•


  2004 KTM SX50





•


  2005 KTM SX50





•


  2006 KTM SX50





•


  2007 KTM SX50





•


  2008 KTM SX50
