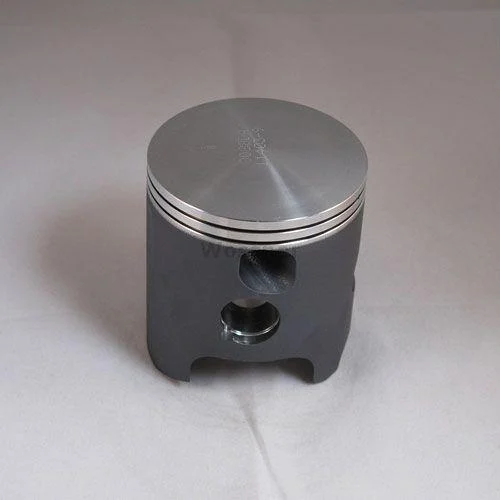

PISTON KIT 02-04 KX250 66.40 A, WOSSNER 8088DA KAWASAKI MX 13001-0013

This Wossner forged piston kit is specifically designed for the Kawasaki KX250 models from 2002 to 2004, offering superior strength and thermal efficiency. With a 66.40mm bore and precision-engineered components, it ensures reliable performance under high-stress conditions. Manufactured in Germany, this piston utilises advanced design features to optimise heat transfer and load distribution, making it an ideal replacement for original equipment.

Features

•


  Forged construction for enhanced strength and durability





•


  Optimised heat transfer from combustion chamber to cylinder walls





•


  Elliptical design reduces localised pressure and evenly distributes thrust loads





•


  Manufactured in Germany




Specifications

•


  Bore: 66.40mm





•


  Actual Bore: 66.34mm





•


  Engine Displacement: 249 cm³





•


  Stroke: 72.00mm





•


  Clearance: 0.06mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)





•


  Compression Height: 37.00mm





•


  Lock Part Number: CW18





•


  Pin Part Number: WP033





•


  Ring Set Part Number: RSB6640 x 2





•


  Rod Part Number: P2022




Cross-Reference OEM Part Numbers

•


  13001-0013





•


  09104809





•


  799M06640




Vehicle Fitments

•


  2002 Kawasaki KX250





•


  2003 Kawasaki KX250





•


  2004 Kawasaki KX250
