The Story

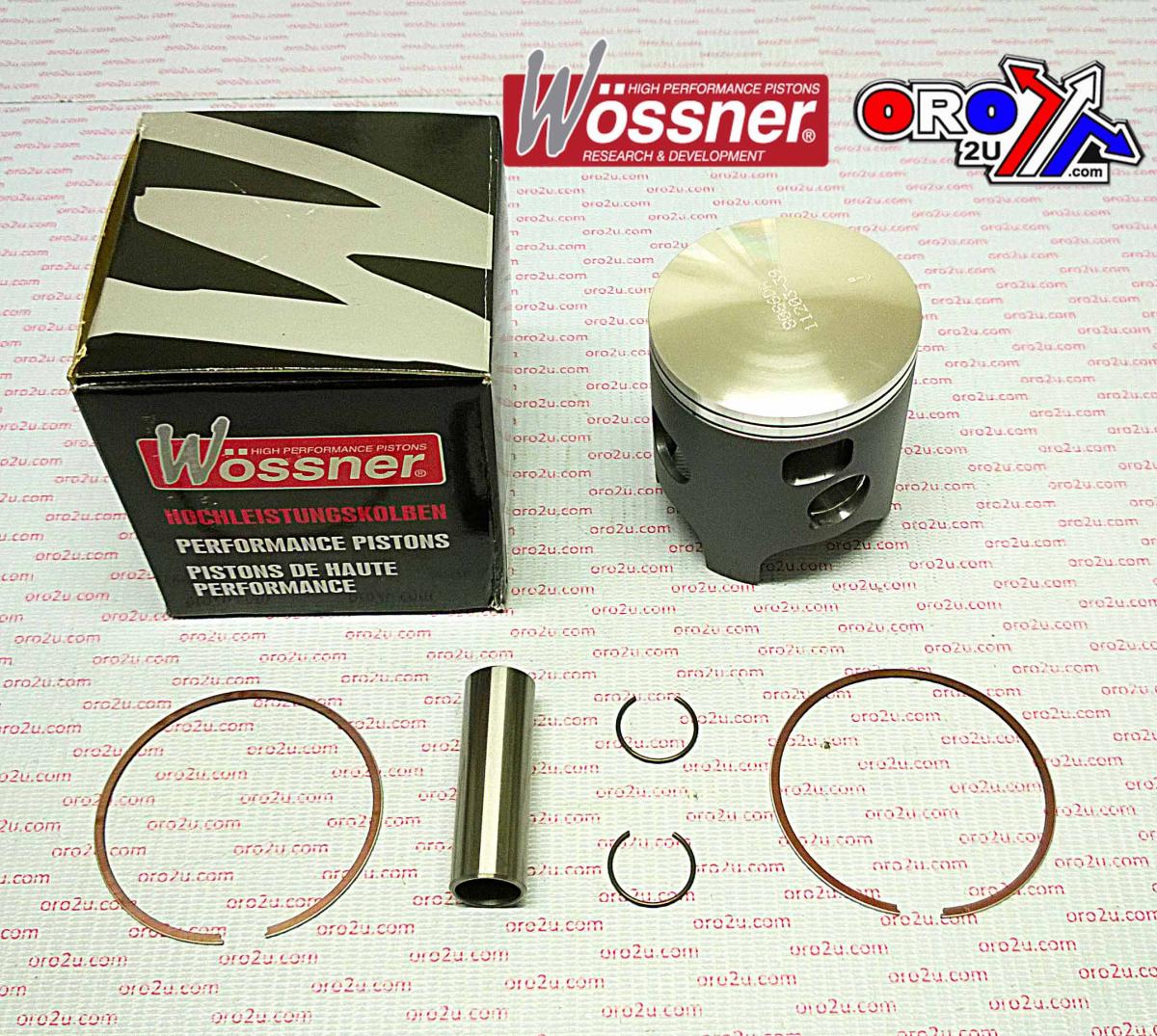

This Wossner forged piston kit is developed for the Suzuki RM250 models from 2003 to 2012. With a 67.50mm bore and a piston diameter of 67.44mm, this +1.10 oversize piston is built to handle increased performance demands while ensuring structural integrity and efficient thermal performance.



Features





  • High-strength forged construction for maximum durability under extreme conditions




  • Engineered to provide efficient heat dissipation from the combustion chamber to cylinder walls




  • Elliptical piston design distributes thrust loads evenly, reducing localised pressure and preventing piston collapse




  • Precision-manufactured in Germany for consistent quality and fit





Specifications





  • Bore Size: 67.50 mm




  • Piston Diameter: 67.44 mm




  • Compression Height: 38.00 mm




  • Stroke: 72.00 mm




  • Clearance: 0.06 mm




  • Compression Ratio: 2-stroke (Wossner and OEM)




  • Displacement: 249 cm³





Cross-Reference OEM Part Numbers





  • Wossner Piston Kit: 8086D110




  • Alternate Piston Kit Reference: 56-W823.110.WO




  • Lock: CW18




  • Pin: WP033




  • Ring Set: RSB6750 x2




  • Rod: P2025





Vehicle Fitments





  • 2003 Suzuki RM250




  • 2004 Suzuki RM250




  • 2005 Suzuki RM250




  • 2006 Suzuki RM250




  • 2007 Suzuki RM250




  • 2008 Suzuki RM250




  • 2009 Suzuki RM250




  • 2010 Suzuki RM250




  • 2011 Suzuki RM250




  • 2012 Suzuki RM250



PISTON KIT 03-09 RM250 67.50, WOSSNER 8086D110 2-RING SUZUKI - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

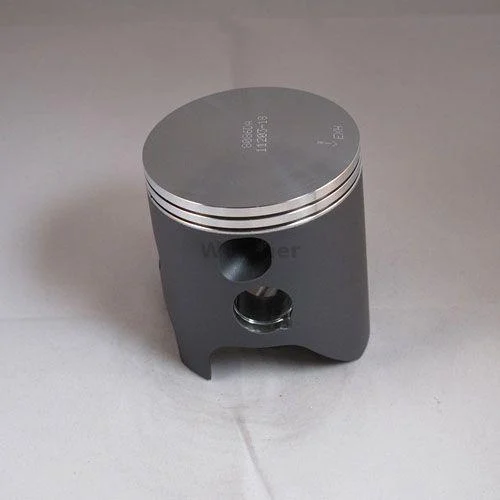

PISTON KIT 03-09 RM250 67.50, WOSSNER 8086D110 2-RING SUZUKI - Image 3
