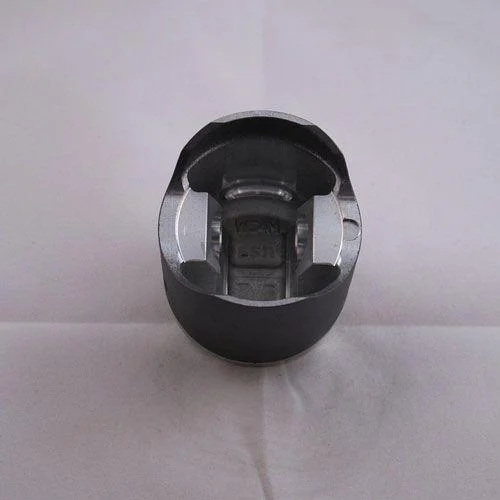

PISTON KIT 04-10 RM125 54.00 C, WOSSNER 8098DC SUZUKI MX

The Wossner 8098DC piston kit is a +0.02 oversize forged piston designed for Suzuki RM125 models from 2004 to 2012. With a 54.02mm bore and 53.97mm piston diameter, this piston offers increased durability and efficient heat dissipation under the stresses of two-stroke operation. Its elliptical geometry allows for uniform bearing surface contact during thermal expansion, reducing localised stress and preventing piston deformation. This high-precision piston is manufactured in Germany to exacting performance standards.

Features

•


  Forged construction enhances strength and long-term reliability





•


  Engineered for optimal heat transfer from combustion to cylinder walls





•


  Elliptical design distributes pressure evenly, minimising piston wear and collapse





•


  Precision-manufactured in Germany for consistent performance




Specifications

•


  Bore: 54.02 mm





•


  Piston Diameter: 53.97 mm





•


  Display Displacement: 125 cm³





•


  Stroke: 54.50 mm





•


  Piston Clearance: 0.05 mm





•


  Compression Height: 29.50 mm





•


  Compression Ratio (Wossner and OEM): 2-stroke





•


  Lock Part Number: CW15





•


  Pin Part Number: WP032





•


  Ring Set Part Number: RSB5400





•


  Rod Part Number: P2016




Vehicle Fitments

•


  Suzuki RM125 2004 - 2012
