$91.00The Story

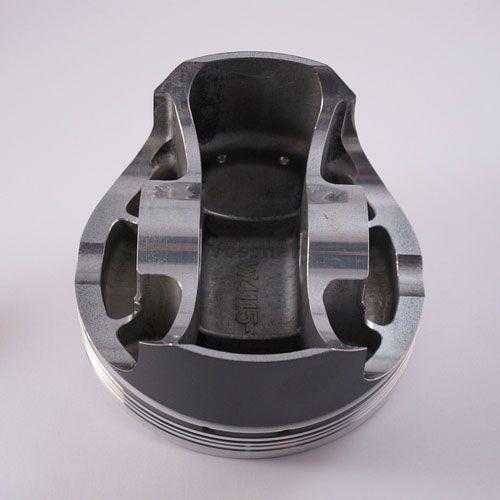

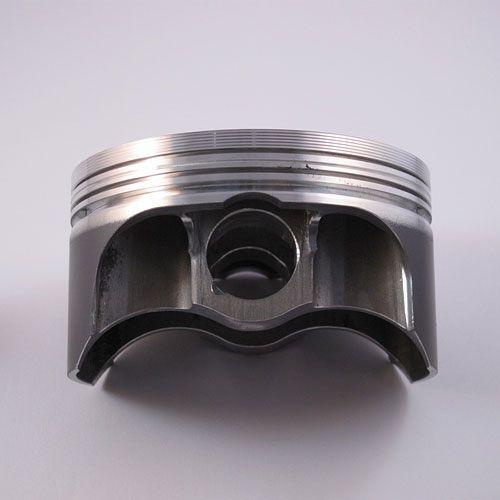

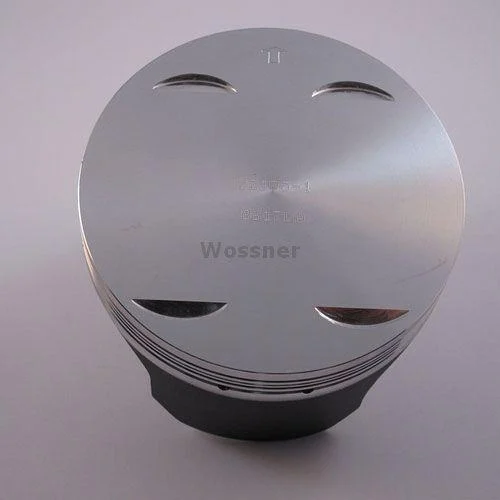

Piston kit 100.02mm Bore 99.97 Wossner 8617DC (+0.02)
YAMAHA
XT660R 2004 - 2017
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany
Part No. 56-W203.C.WO (oro2u.com)
Wossner Piston Yamaha XT660R (PN# 8617DC)
Lock P/N CW23
Pin P/N WP024
Ring Set P/N 1000XSY-3
Display (cm3) 660
Hub stroke (mm) 84.00
Clearance (mm) 0.05
Wossner compression Ratio: 10.70:1
OEM Compression ratio: 10.00:1
Dome volume (cm3) -0.30
Compression height (mm)27.50
Theorectical weight (G)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Piston kit 100.02mm Bore 99.97 Wossner 8617DC (+0.02)
YAMAHA
XT660R 2004 - 2017
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany
Part No. 56-W203.C.WO (oro2u.com)
Wossner Piston Yamaha XT660R (PN# 8617DC)
Lock P/N CW23
Pin P/N WP024
Ring Set P/N 1000XSY-3
Display (cm3) 660
Hub stroke (mm) 84.00
Clearance (mm) 0.05
Wossner compression Ratio: 10.70:1
OEM Compression ratio: 10.00:1
Dome volume (cm3) -0.30
Compression height (mm)27.50
Theorectical weight (G)
