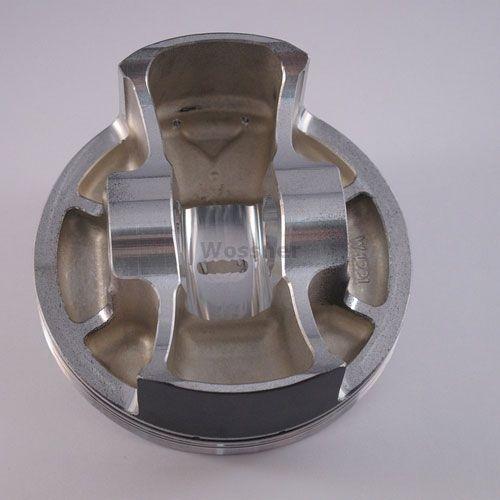

PISTON KIT 05-08 KXF450 KLX450R 96.00, FORGED WOSSNER 8648DA 13001-0073

Wossner forged piston kit designed for Kawasaki KX450F (2005-2008) and KLX450R (2008-2020) models. Engineered for superior strength and optimal heat transfer, these pistons feature an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

• Forged piston for increased strength and durability


• Optimized heat transfer for efficient combustion chamber performance


• Elliptical design for even thrust load distribution and reduced piston collapse


• Manufactured in Germany

Specifications

• Bore Size: 96.00mm


• Actual Bore Diameter: 95.95mm


• Displacement: 449 cm³


• Stroke: 62.10mm


• Clearance: 0.05mm


• Wossner Compression Ratio: OEM


• OEM Compression Ratio: 12.00:1


• Dome Volume: +0.20 cm³


• Compression Height: 23.60mm


• Lock Part Number: CW19


• Pin Part Number: WP037


• Ring Set Part Number: 960ADS-2


• Rod Part Number: P4010

Cross-Reference OEM Part Numbers

• 13001-0073


• 4900M09600

Vehicle Fitments

• Kawasaki KX450F (2005-2008)


• Kawasaki KLX450R (2008-2020)
