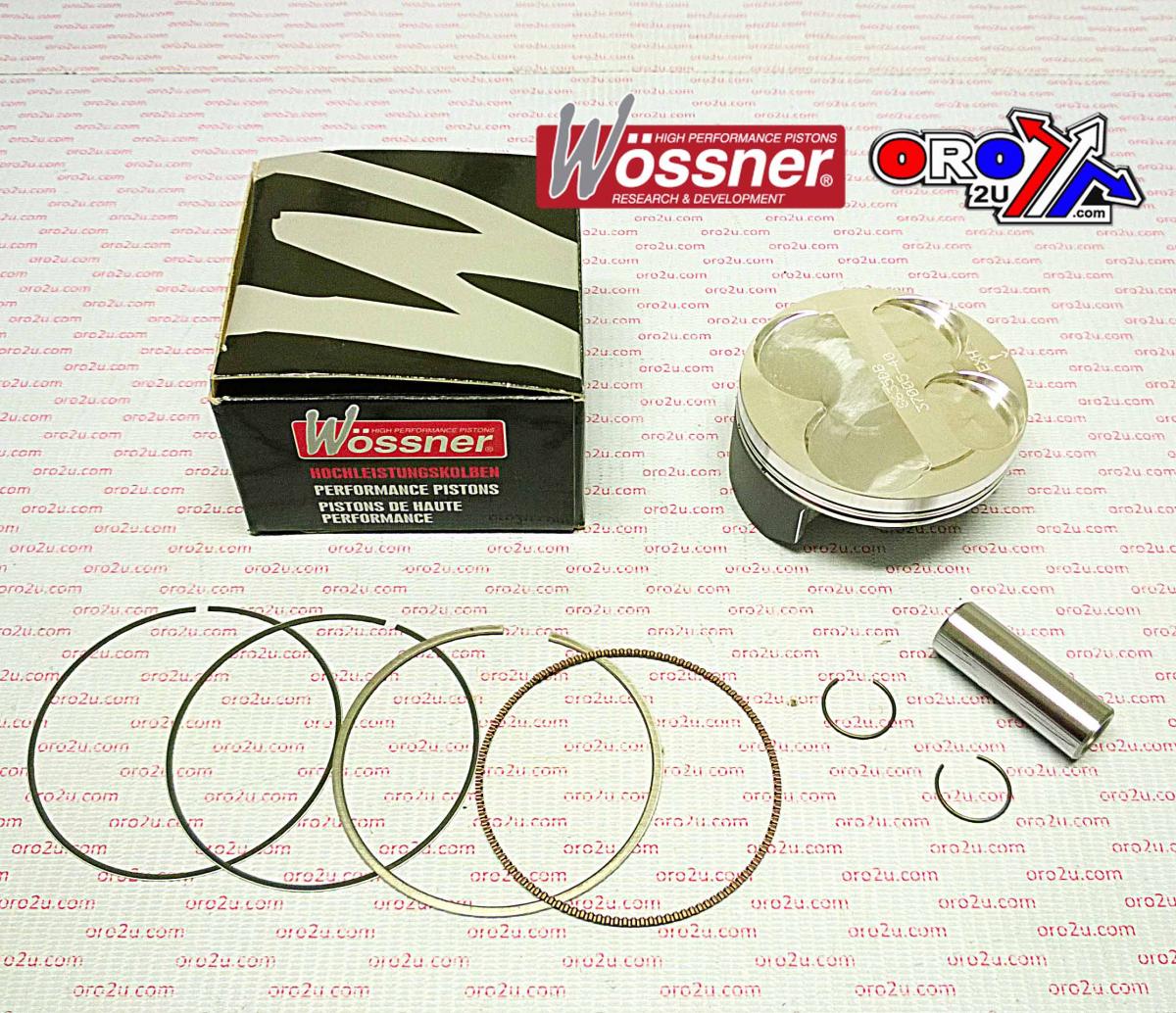

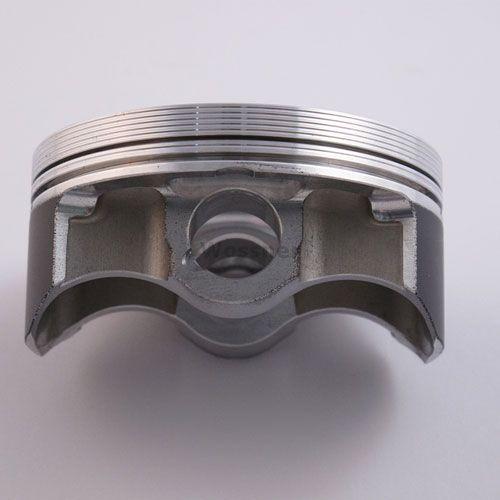

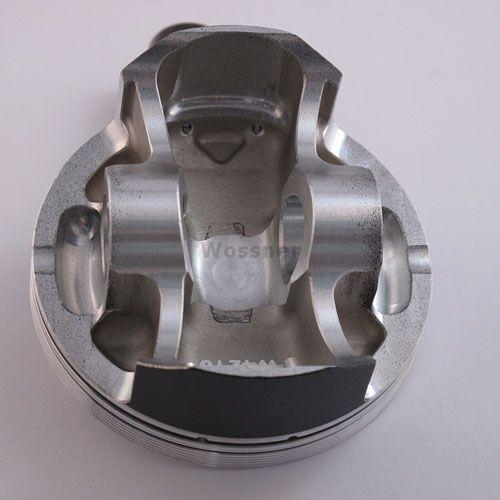

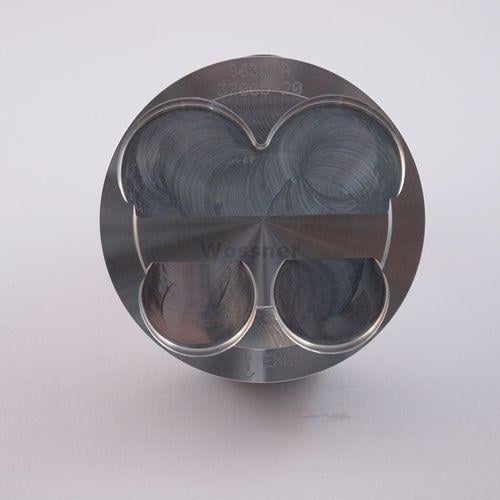

PISTON KIT 06-09 KXF250 77.00, FORGED WOSSNER 8635DA 13001-0088

Wossner forged piston kit designed for Kawasaki KX250F (2006-2009) models. Engineered for superior strength and optimal heat transfer, these pistons feature an elliptical design to ensure uniform bearing surface under heat expansion, reducing localized pressure and preventing piston collapse. Manufactured in Germany.

Features

• Forged piston for increased strength and durability


• Optimized heat transfer for efficient combustion chamber performance


• Elliptical design for even thrust load distribution and reduced piston collapse


• Manufactured in Germany

Specifications

• Bore Size: 77.00mm


• Actual Bore Diameter: 76.96mm


• Displacement: 250 cm³


• Stroke: 53.60mm


• Clearance: 0.04mm


• Wossner Compression Ratio: 13.50:1


• OEM Compression Ratio: 13.20:1


• Dome Volume: -3.40 cm³


• Compression Height: 19.60mm


• Lock Part Number: CW16


• Pin Part Number: WP059


• Ring Set Part Number: 770XAS-2


• Rod Part Number: P4002

Cross-Reference OEM Part Numbers

• 13001-0088


• 4904M07700

Vehicle Fitments

• Kawasaki KX250F (2006-2009)
