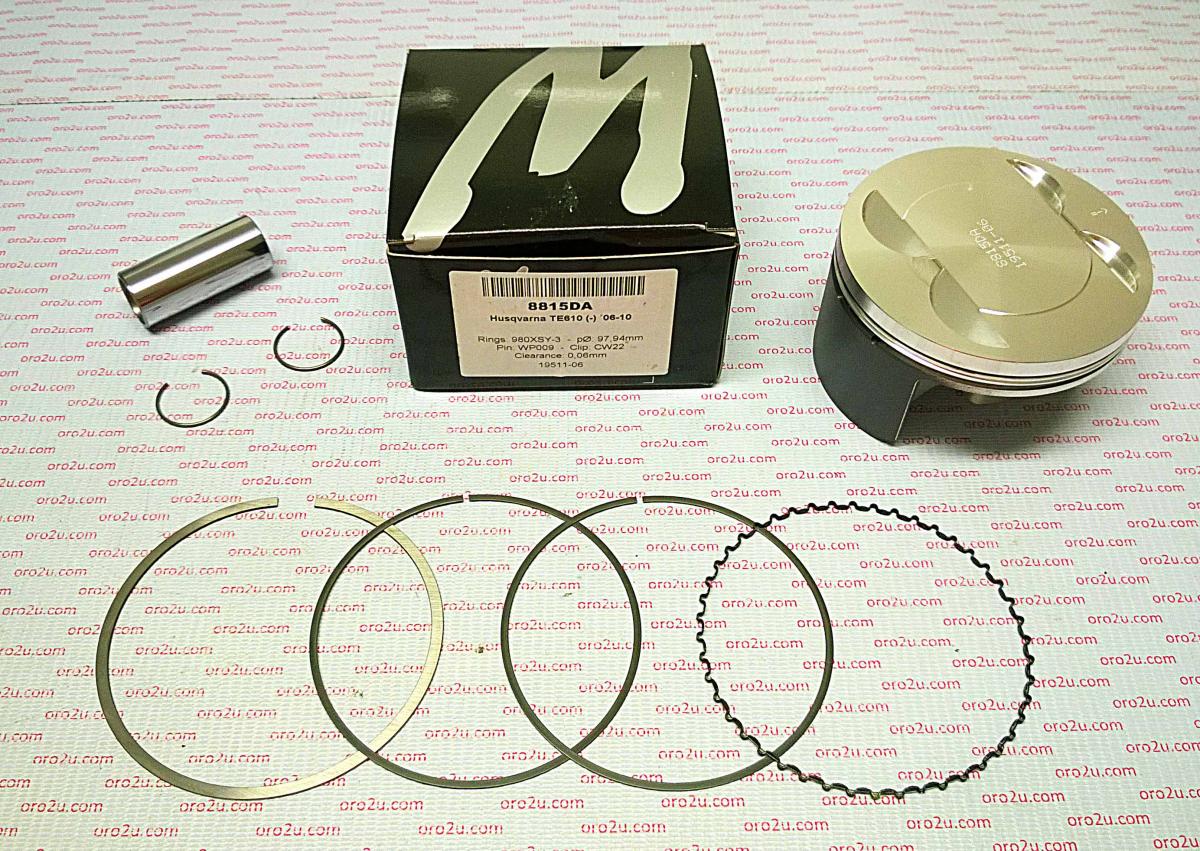

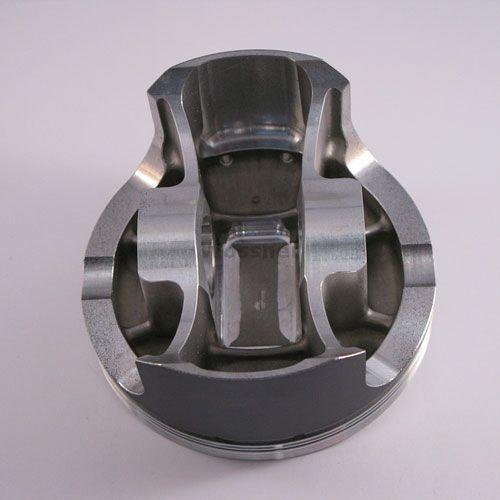

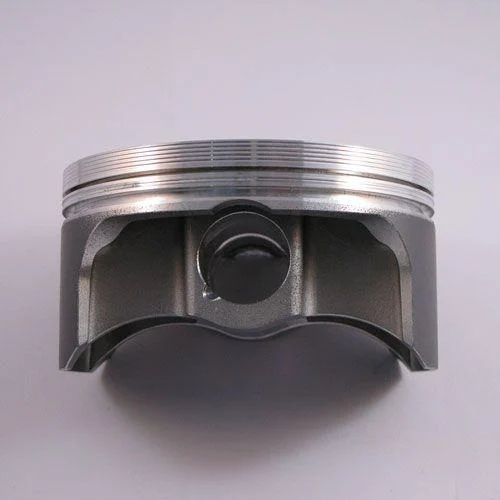

PISTON KIT 06-10 TC TE610 98mm, WOSSNER 8815DB HUSQVARNA—
$307.00
The Story
Piston Kit 98.01mm Bore 97.95 Wossner 8515DA (+0.01)
Husqvarna
- TC 610: 2006 - 2010
- TE 610: 2006 - 2010
Features:
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany.
- Wossner Piston: Husqvarna TC610 98.01 mm Bore (PN# 8815DB)
- Lock P/N: CW22
- Pin P/N: WP009
- Ring Set P/N: 980XSY
Specifications:
- Display (cm3): 577
- Hub stroke (mm): 76.40
- Clearance (mm): 0.06
- Wossner compression Ratio: OEM
- OEM Compression ratio: 11.00:1
- Dome volume (cm3): +8.20
- Compression height (mm): 25.00
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Piston Kit 98.01mm Bore 97.95 Wossner 8515DA (+0.01)
Husqvarna
- TC 610: 2006 - 2010
- TE 610: 2006 - 2010
Features:
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany.
- Wossner Piston: Husqvarna TC610 98.01 mm Bore (PN# 8815DB)
- Lock P/N: CW22
- Pin P/N: WP009
- Ring Set P/N: 980XSY
Specifications:
- Display (cm3): 577
- Hub stroke (mm): 76.40
- Clearance (mm): 0.06
- Wossner compression Ratio: OEM
- OEM Compression ratio: 11.00:1
- Dome volume (cm3): +8.20
- Compression height (mm): 25.00
