PISTON KIT 06-11 EX650 NINJA, WOSSNER K8697DA-2 ROAD, KAWASAKI

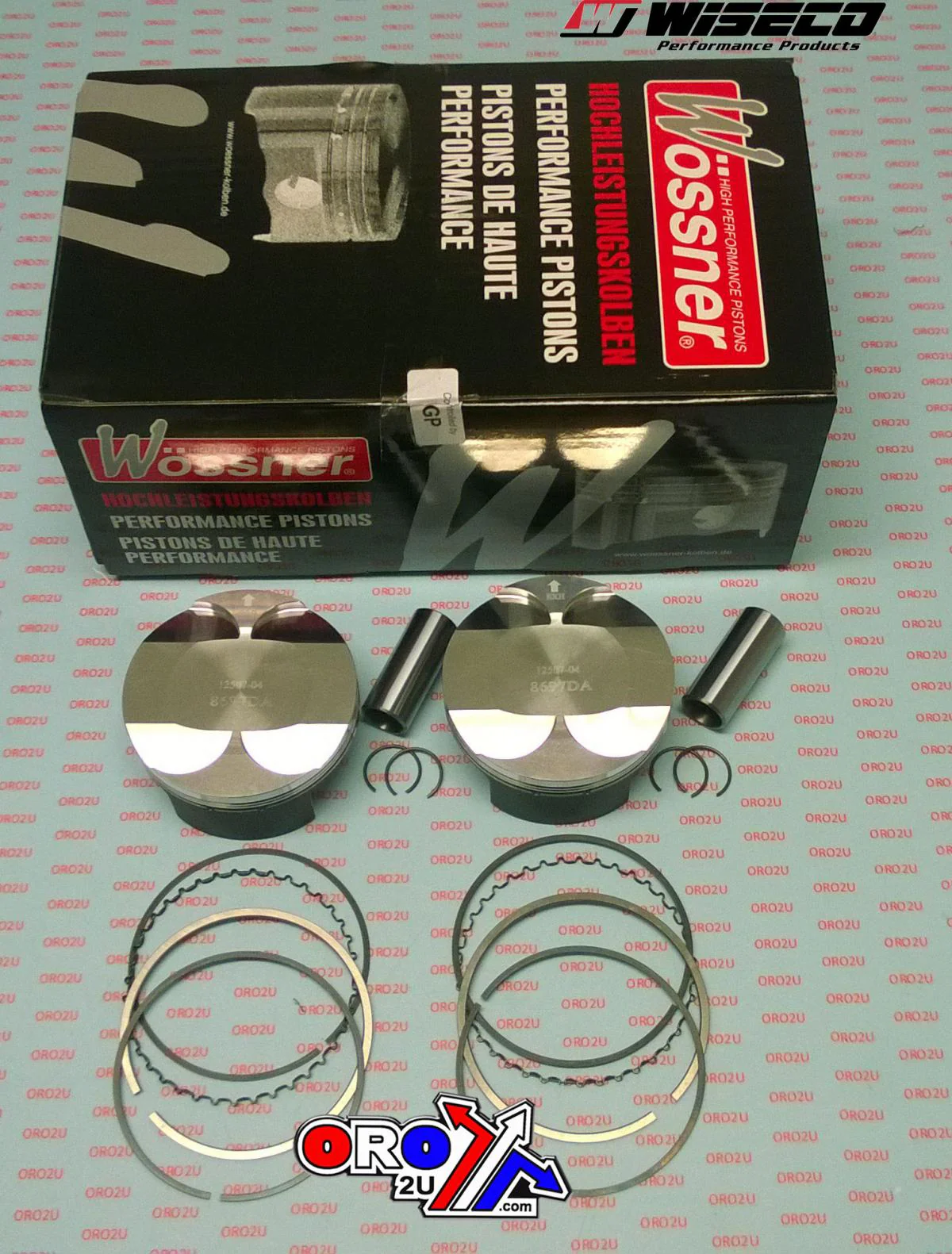

The Wossner K8697DA-2 piston kit is a standard-size forged piston set designed for Kawasaki EX650 Ninja models from 2006 to 2011. With an 83.00mm bore and 12.6:1 compression ratio, this 2-ring piston configuration offers high efficiency, structural integrity, and performance for modern four-stroke engines. Manufactured in Germany, the kit includes two pistons and all required components for installation.

Features

•


  Forged high-performance pistons with skirt coating





•


  Elliptical design ensures uniform load distribution and controlled heat expansion





•


  Optimised combustion chamber heat transfer to cylinder walls





•


  Two-ring piston configuration





•


  Includes piston pins, clips, and rings




Specifications

•


  Bore size: 83.00mm (Standard)





•


  Measured bore: 82.95mm





•


  Display displacement: 649 cm³





•


  Stroke: 60.00mm





•


  Clearance: 0.05mm





•


  Compression ratio: 12.6:1





•


  OEM compression ratio: 12.7:1





•


  Dome volume: –9.30 cm³





•


  Compression height: 22.70mm





•


  Quantity: 2 pistons per kit





•


  Made in Germany




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9873.83.000.WO





•


  Clip: CW19





•


  Piston Pin: WP028





•


  Ring Set: 830XSY




Vehicle Fitments

•


  Kawasaki EX650 Ninja 2006–2011
