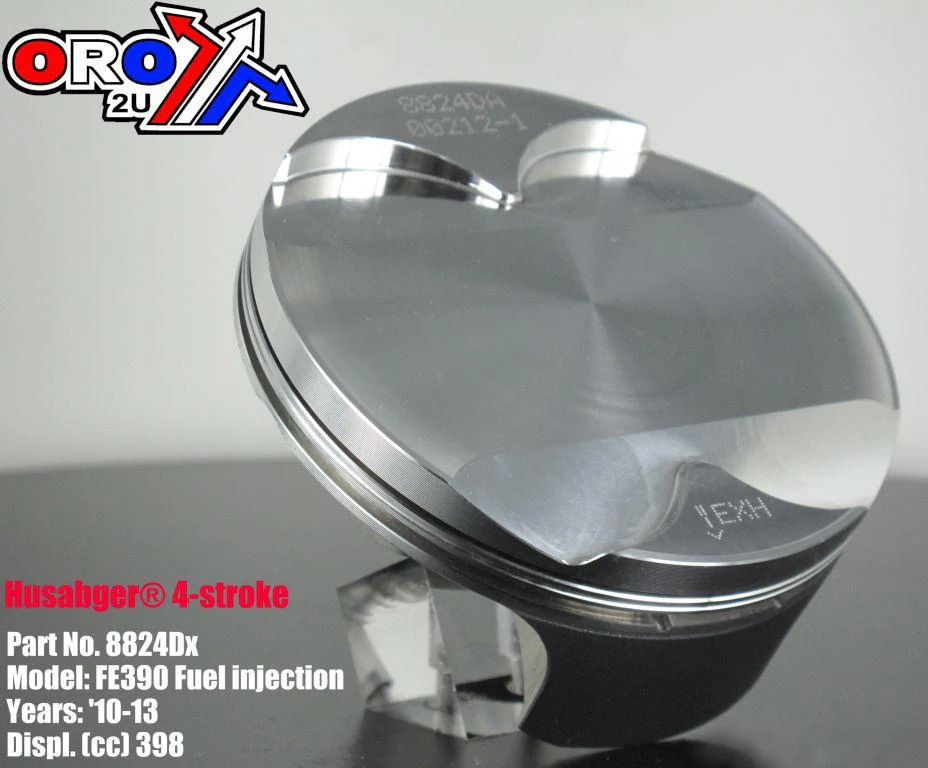

PISTON KIT 10-13 FE390 95.00 B, WOSSNER 8824DB

Wossner forged piston kit 8824DB is a +0.01mm oversized piston with a 95.01mm bore (measured at 94.96mm), designed for Husaberg FE390 fuel-injected models from 2010 to 2012. Built in Germany, this piston delivers precision fit, high strength, and superior thermal efficiency for demanding four-stroke applications.

Features

•


  Forged construction for maximum strength and long-term durability





•


  Elliptical profile ensures uniform pressure distribution during heat expansion





•


  Optimised heat transfer from combustion chamber to cylinder walls





•


  Prevents piston collapse by evenly distributing thrust loads





•


  Made in Germany




Specifications

•


  Bore: 95.01mm (Measured: 94.96mm)





•


  Display Volume: 398 cm³





•


  Stroke: 55.50mm





•


  Clearance: 0.05mm





•


  Compression Height: 23.20mm





•


  Wossner Compression Ratio: OEM





•


  OEM Compression Ratio: 11.10:1





•


  Dome Volume: -1.10 cm³





•


  Part No.: 56-W918.B.WO (Wossner 8824DB)





•


  Ring Set: 950ADS-2





•


  Lock P/N: CW19





•


  Pin P/N: WP071




Vehicle Fitments

•


  2010 Husaberg FE390





•


  2011 Husaberg FE390





•


  2012 Husaberg FE390
