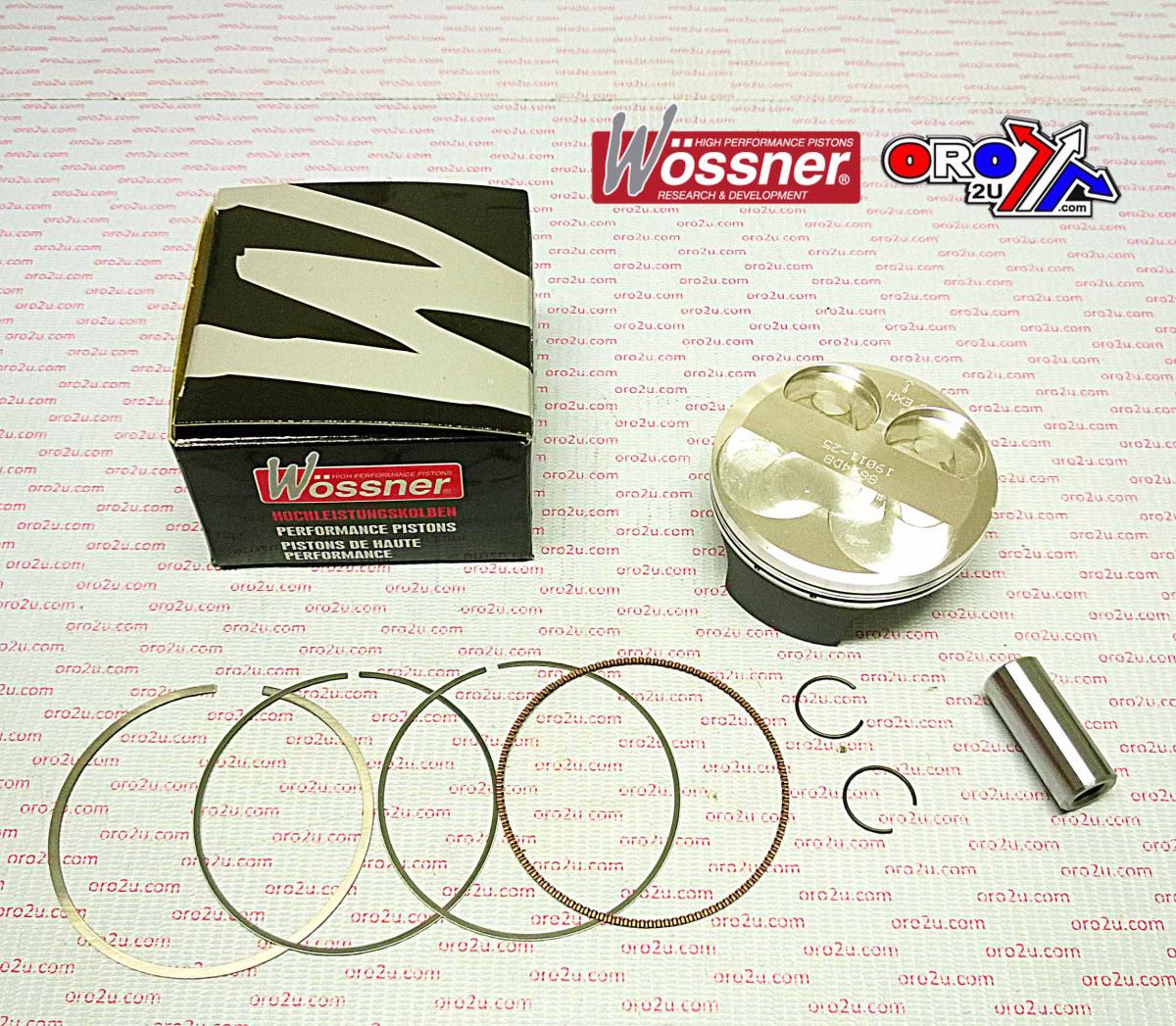

PISTON KIT 11-14 KX250F 77mm A, 8814DA WOSSNER KAWASAKI 13001-0125

This Wossner forged piston kit features a 77mm bore size (76.96mm actual) and is a standard replacement for Kawasaki KX250F models from 2011 to 2014. Manufactured in Germany, the piston is designed with a two-ring configuration and an elliptical shape that promotes even load distribution under thermal expansion. It ensures effective heat transfer and long-term durability in high-performance environments.

Features

•


  Forged piston construction with two-ring design for durability and strength





•


  Elliptical profile ensures even thrust load distribution during operation





•


  Engineered for efficient heat transfer from combustion chamber to cylinder walls





•


  Manufactured in Germany




Specifications

•


  Bore Size: 77mm (actual 76.96mm)





•


  Displacement: 249 cm³





•


  Stroke: 53.60 mm





•


  Clearance: 0.04 mm





•


  Compression Ratio (Wossner): OEM





•


  Compression Ratio (OEM): 13.50:1





•


  Dome Volume: -2.80 cm³





•


  Compression Height: 19.60 mm





•


  Lock Part Number: CW16





•


  Pin Part Number: WP070





•


  Ring Set Part Number: 770XAS-2




Cross-Reference OEM Part Numbers

•


  13001-0125





•


  40019M07700




Vehicle Fitments

•


  2011 Kawasaki KX250F





•


  2012 Kawasaki KX250F





•


  2013 Kawasaki KX250F





•


  2014 Kawasaki KX250F
