Piston kit 78.01mm Bore 77.97mm Wossner 8923DB (+0.01mm)
KTM
SX-F250 2016 -,2022
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany
Part No. 56-W265.B.WO (oro2u.com)

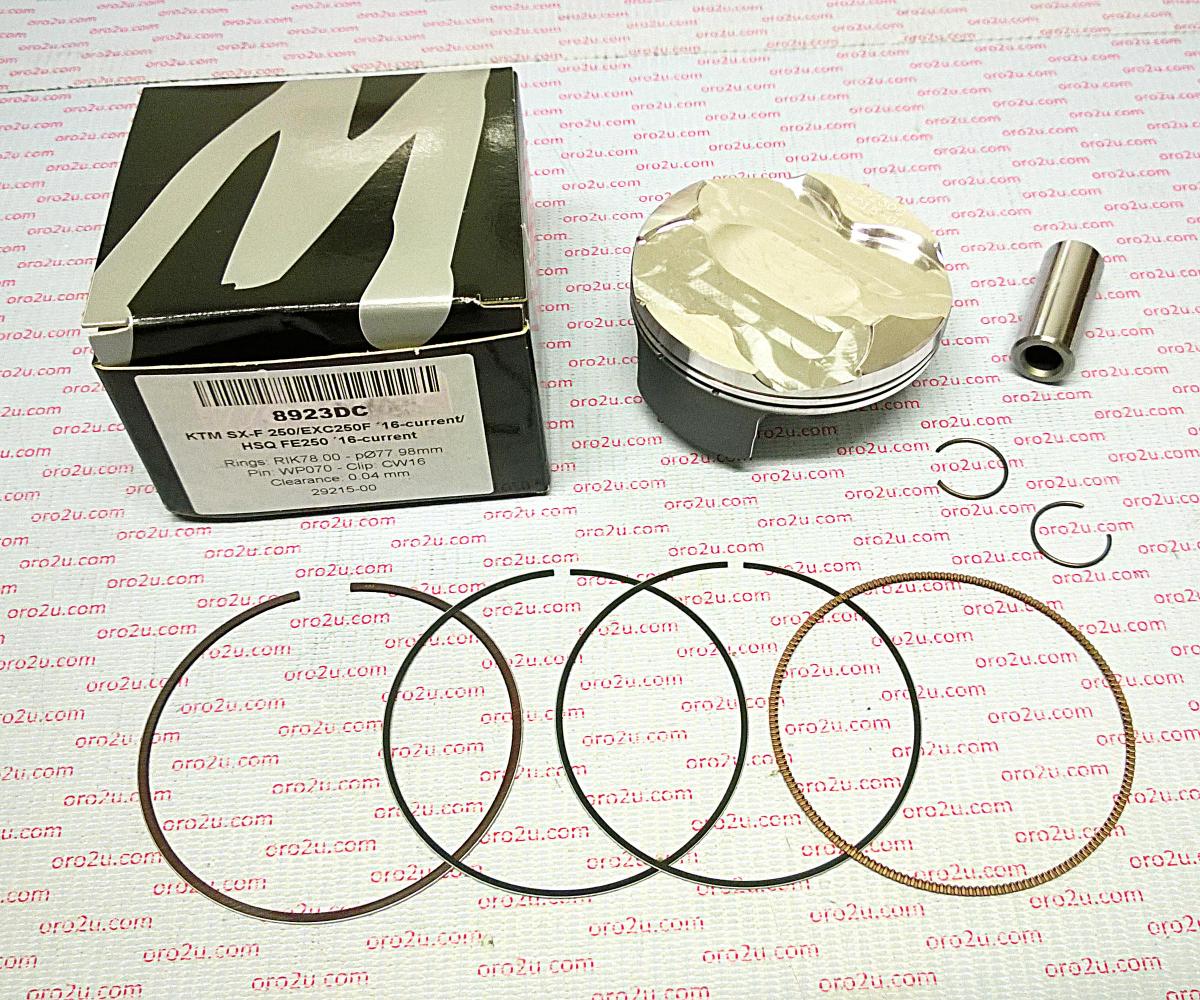

WOSSNER PISTON KIT
Lock P/N CW16
Pin P/N WP070
Ring Set P/N RIK78.00
Display (cm3) 249
Hub stroke (mm) 52.30
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 13.90:1
Dome volume (cm3) -1.80
Compression height (mm) 19.50
Theorectical weight (G) 135.00
Ā
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Piston kit 78.01mm Bore 77.97mm Wossner 8923DB (+0.01mm)
KTM
SX-F250 2016 -,2022
- Wossner forged pistons are superior in strength and design.
- Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls.
- Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse.
- Made in Germany
Part No. 56-W265.B.WO (oro2u.com)
WOSSNER PISTON KIT
Lock P/N CW16
Pin P/N WP070
Ring Set P/N RIK78.00
Display (cm3) 249
Hub stroke (mm) 52.30
Clearance (mm) 0.04
Wossner compression Ratio: OEM
OEM Compression ratio: 13.90:1
Dome volume (cm3) -1.80
Compression height (mm) 19.50
Theorectical weight (G) 135.00
