PISTON KIT 2010 KX250F 77mm B, WOSSNER 8777DB KAWASAKI HC

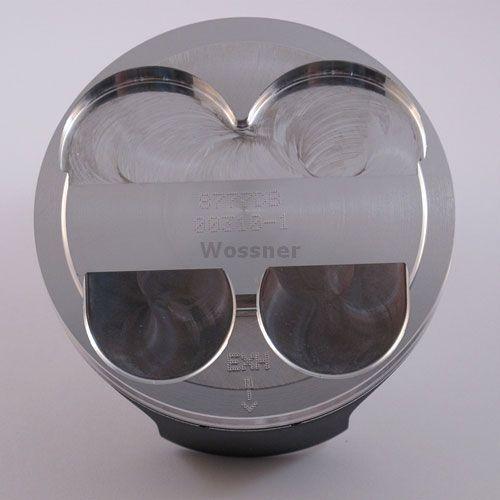

This Wossner forged piston kit features a 77.01mm bore size (76.97mm actual), offering a +0.01mm oversize fitment for the 2010 Kawasaki KX250F. Precision-manufactured in Germany, the piston includes a two-ring design and an elliptical shape that distributes thrust loads evenly, minimising stress and wear during engine operation. It maintains OEM compression characteristics for reliable performance.

Features

•


  Forged piston with two-ring configuration for strength and durability





•


  Elliptical design promotes even load distribution during thermal expansion





•


  Engineered for efficient combustion heat transfer to cylinder walls





•


  Manufactured in Germany




Specifications

•


  Bore Size: 77.01mm (actual 76.97mm)





•


  Displacement: 250 cm³





•


  Stroke: 53.60 mm





•


  Clearance: 0.04 mm





•


  Compression Ratio (Wossner): OEM





•


  Compression Ratio (OEM): 13.20:1





•


  Dome Volume: -2.50 cm³





•


  Compression Height: 19.60 mm





•


  Lock Part Number: CW16





•


  Pin Part Number: WP070





•


  Ring Set Part Number: 770XAS-2




Cross-Reference OEM Part Numbers

•


  OEM: 13001-0115





•


  Wiseco: 40009M





•


  Vertex: 23566





•


  ProX: 01.4340




Vehicle Fitments

•


  2010 Kawasaki KX250F
