The Story

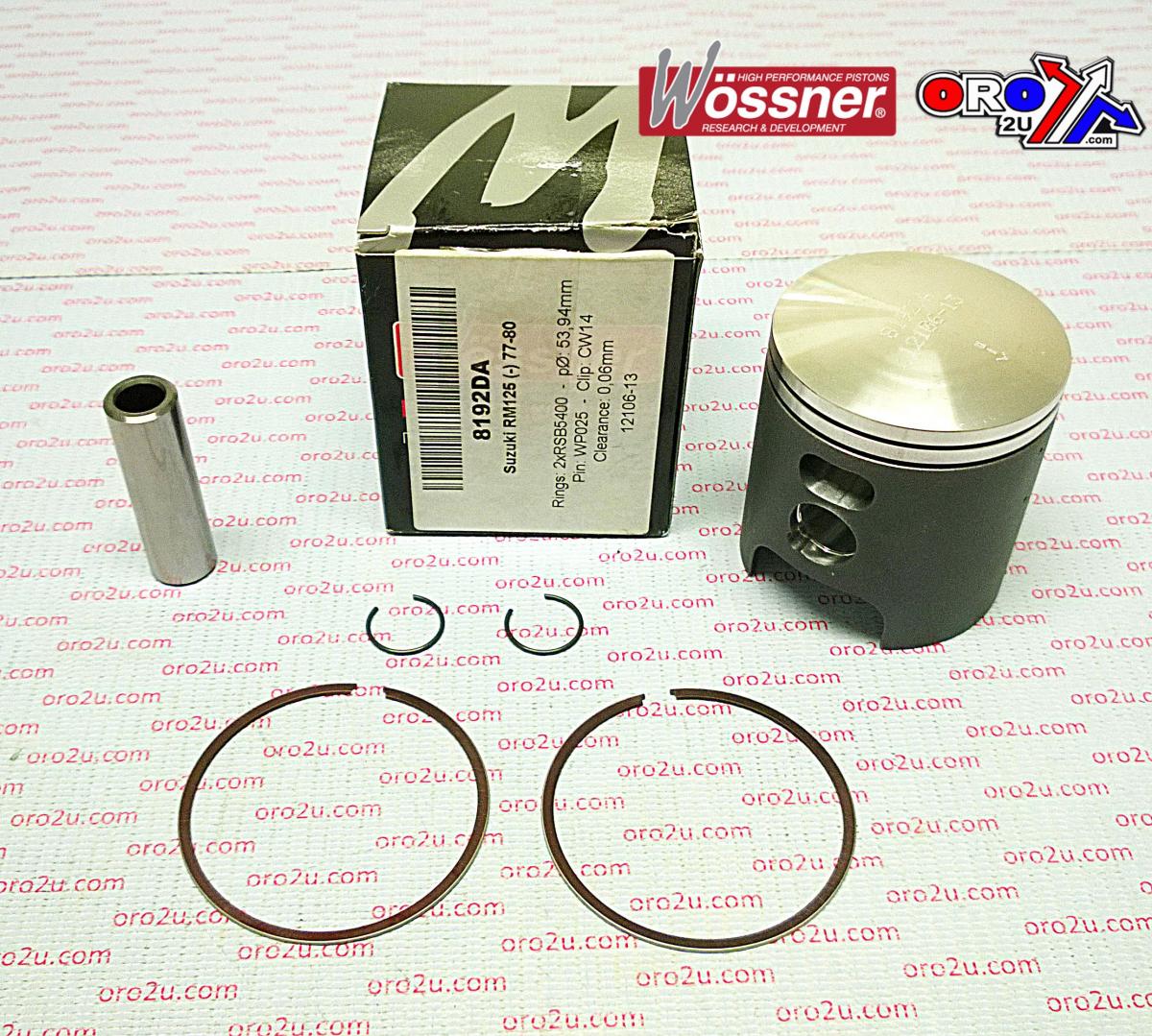

Wossner forged piston kit designed for durability and high performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.
Features
- Forged piston for enhanced strength and durability
- Optimized heat transfer for efficient combustion
- Elliptical design to prevent piston collapse
- Manufactured in Germany
Specifications
- Bore Size: 55.50mm
- Actual Bore Diameter: 55.44mm
- Displacement: 123 cm³
- Stroke: 54.00mm
- Clearance: 0.06mm
- Wossner Compression Ratio: 2-Stroke
- OEM Compression Ratio: 2-Stroke
- Dome Volume: -0.30 cm³
- Compression Height: 30.50mm
- Theoretical Weight: Not specified
Included Components
- Lock Part Number: CW14
- Pin Part Number: WP025
- Ring Set Part Number: RSB5550 x 2
Vehicle Fitments
- Suzuki RM125 (1977-1980)
Description
Wossner forged piston kit designed for durability and high performance. Engineered for optimal heat transfer to cylinder walls, ensuring efficient combustion. The elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse. Manufactured in Germany to high-quality standards.
Features
- Forged piston for enhanced strength and durability
- Optimized heat transfer for efficient combustion
- Elliptical design to prevent piston collapse
- Manufactured in Germany
Specifications
- Bore Size: 55.50mm
- Actual Bore Diameter: 55.44mm
- Displacement: 123 cm³
- Stroke: 54.00mm
- Clearance: 0.06mm
- Wossner Compression Ratio: 2-Stroke
- OEM Compression Ratio: 2-Stroke
- Dome Volume: -0.30 cm³
- Compression Height: 30.50mm
- Theoretical Weight: Not specified
Included Components
- Lock Part Number: CW14
- Pin Part Number: WP025
- Ring Set Part Number: RSB5550 x 2
Vehicle Fitments
- Suzuki RM125 (1977-1980)
