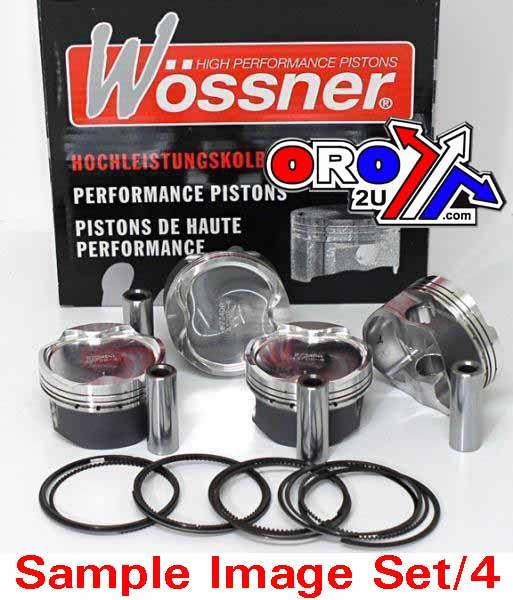

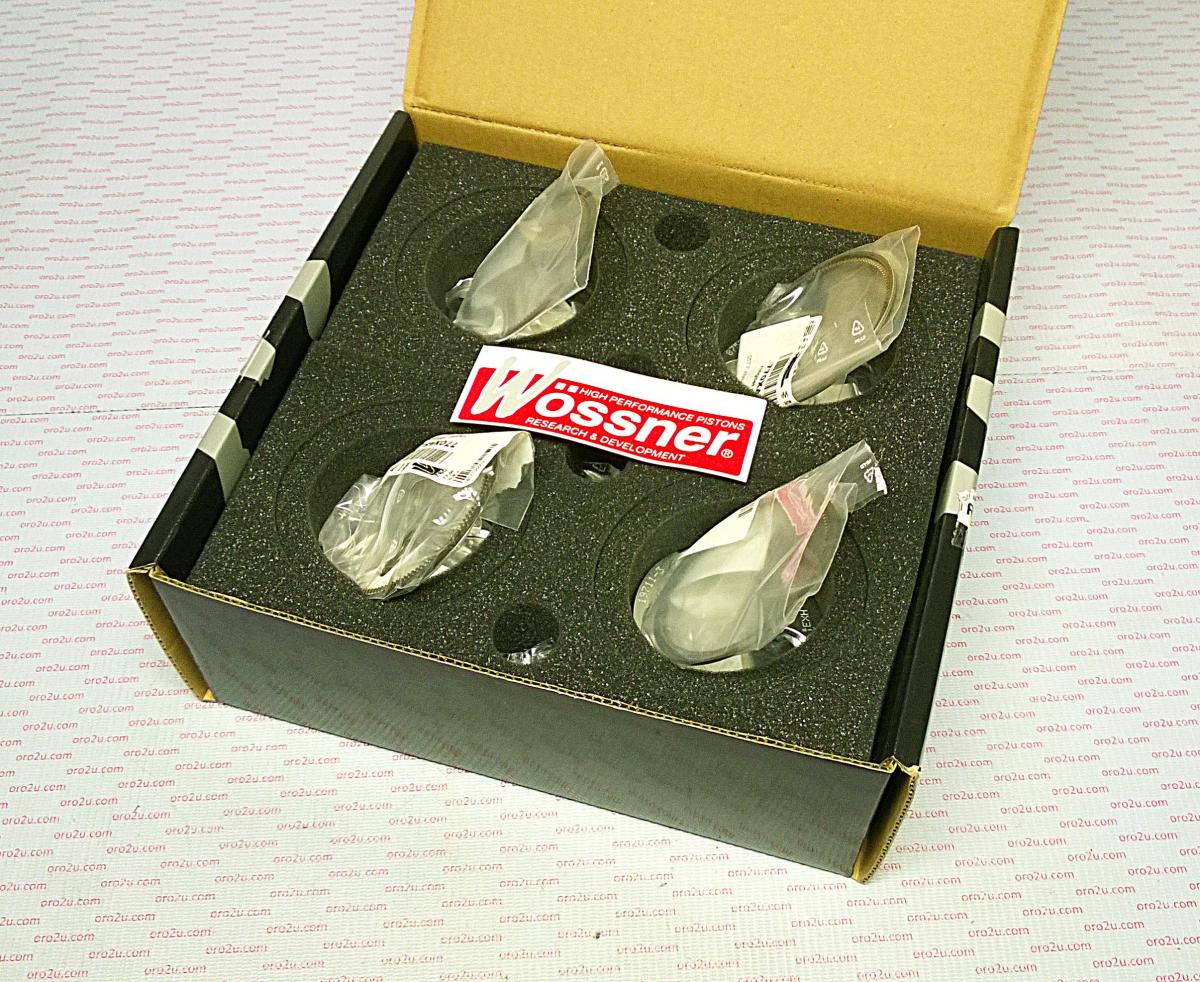

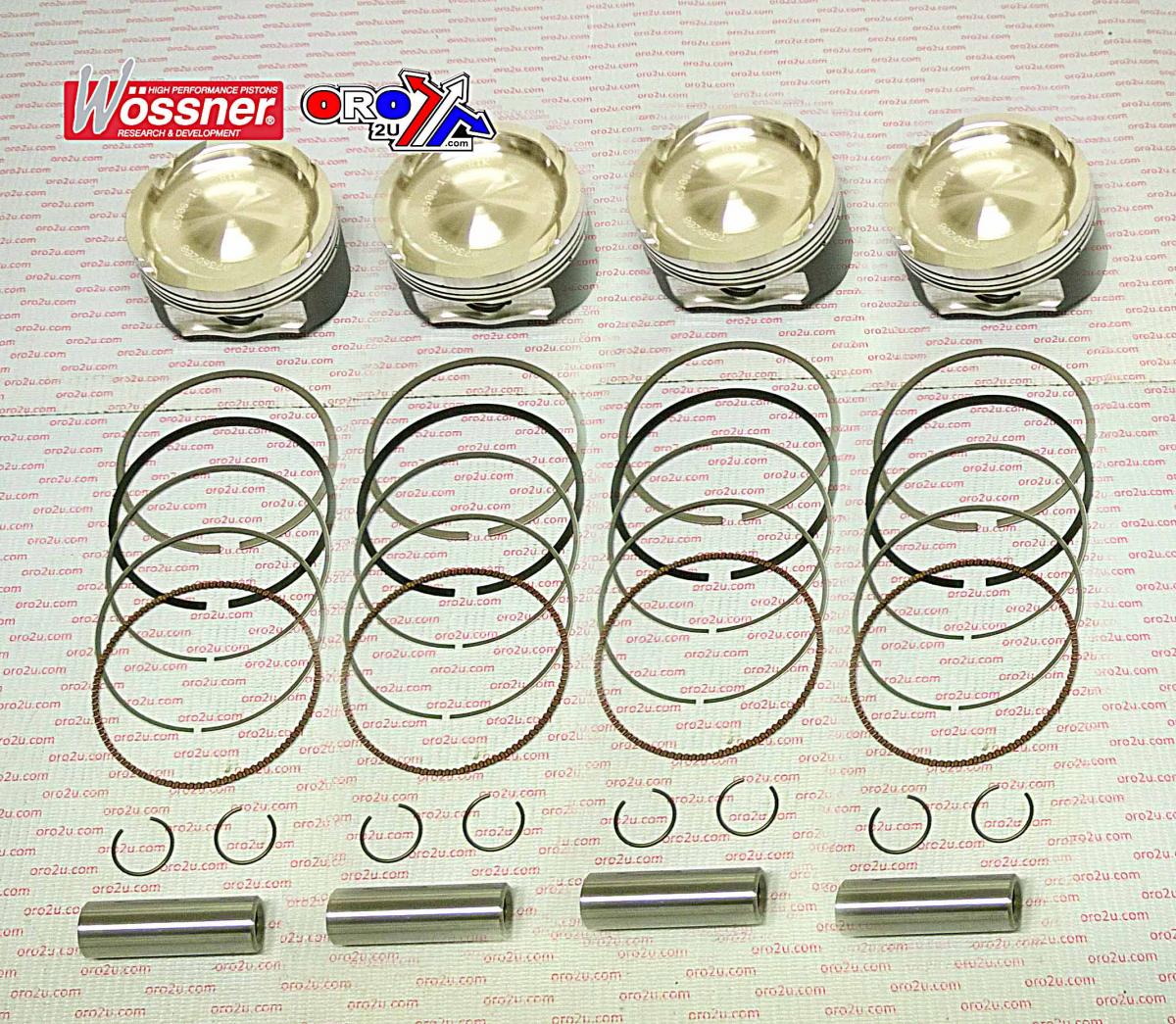

PISTON KIT 83mm SET/4 2008-ON SUZUKI HAYABUSA TURBO WOSSNER K8736D200-4

This piston kit is designed for turbocharged Suzuki Hayabusa models from 2008 onwards. It features forged Wossner pistons engineered for high-performance applications, delivering excellent heat transfer and structural integrity. The pistons are elliptical in design to optimise load distribution and prevent collapse under high stress. Manufactured in Germany, this +2mm oversized set increases engine displacement to 1406cc.

Features

• Set of 4 forged Wossner pistons


• +2.00mm oversized (83.00mm bore)


• Elliptical shape for improved bearing surface and thrust load distribution


• Engineered for superior heat transfer to cylinder walls


• Designed to withstand high-performance turbo applications


• Made in Germany

Specifications

• Part Number: K8736D200-4


• Bore Size: 83.00mm (actual piston size 82.92mm)


• Displacement: 1406cc


• Original Display (cm³): 1340 / 1406


• Stroke: 65.00mm


• Clearance: 0.08mm


• Wossner Compression Ratio: 9.00:1


• OEM Compression Ratio: 12.50:1


• Dome Volume: -19.40cm³


• Compression Height: 24.00mm

Cross-Reference OEM Part Numbers

• Clip: CW18


• Piston Pin: WP064


• Replacement Ring Set: RIK83.00A


• Wossner: K8736D200-4

Vehicle Fitments

•


  Suzuki Hayabusa Turbo 2008-On
