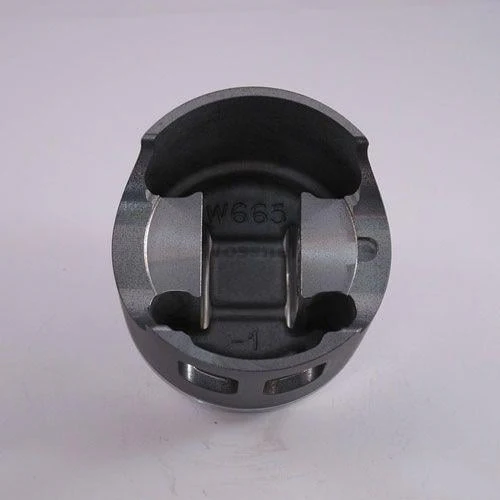

PISTON KIT 84-86 IT200 66.00, FORGED WOSSNER 8176DA

The Wossner 8176DA Piston Kit is a high-quality forged piston designed for Yamaha IT200 models from 1984 to 1986. Engineered for optimal heat transfer and durability, it features an elliptical design to ensure uniform bearing surface contact, reducing localized pressure and preventing piston collapse. Manufactured in Germany, this piston kit is built for strength and precision.

Features

• Forged piston for superior strength and durability


• Optimized heat transfer to cylinder walls for improved performance


• Elliptical design ensures even thrust load distribution


• Manufactured in Germany for high precision and reliability

Specifications

• Bore Size: 66.00mm (65.94mm)


• Displacement: 195 cm³


• Stroke: 57.00mm


• Clearance: 0.06mm


• Compression Ratio: 2-Stroke


• Compression Height: 30.00mm

Cross-Reference OEM Part Numbers

• Lock: CW16


• Pin: WP027


• Ring Set: RSB6600 x 2

Vehicle Fitments

• 1984 Yamaha IT200


• 1985 Yamaha IT200


• 1986 Yamaha IT200
