PISTON KIT 88-07 YFS200 66.00, WOSSNER 8101DA YAMAHA ATV
HomeStore

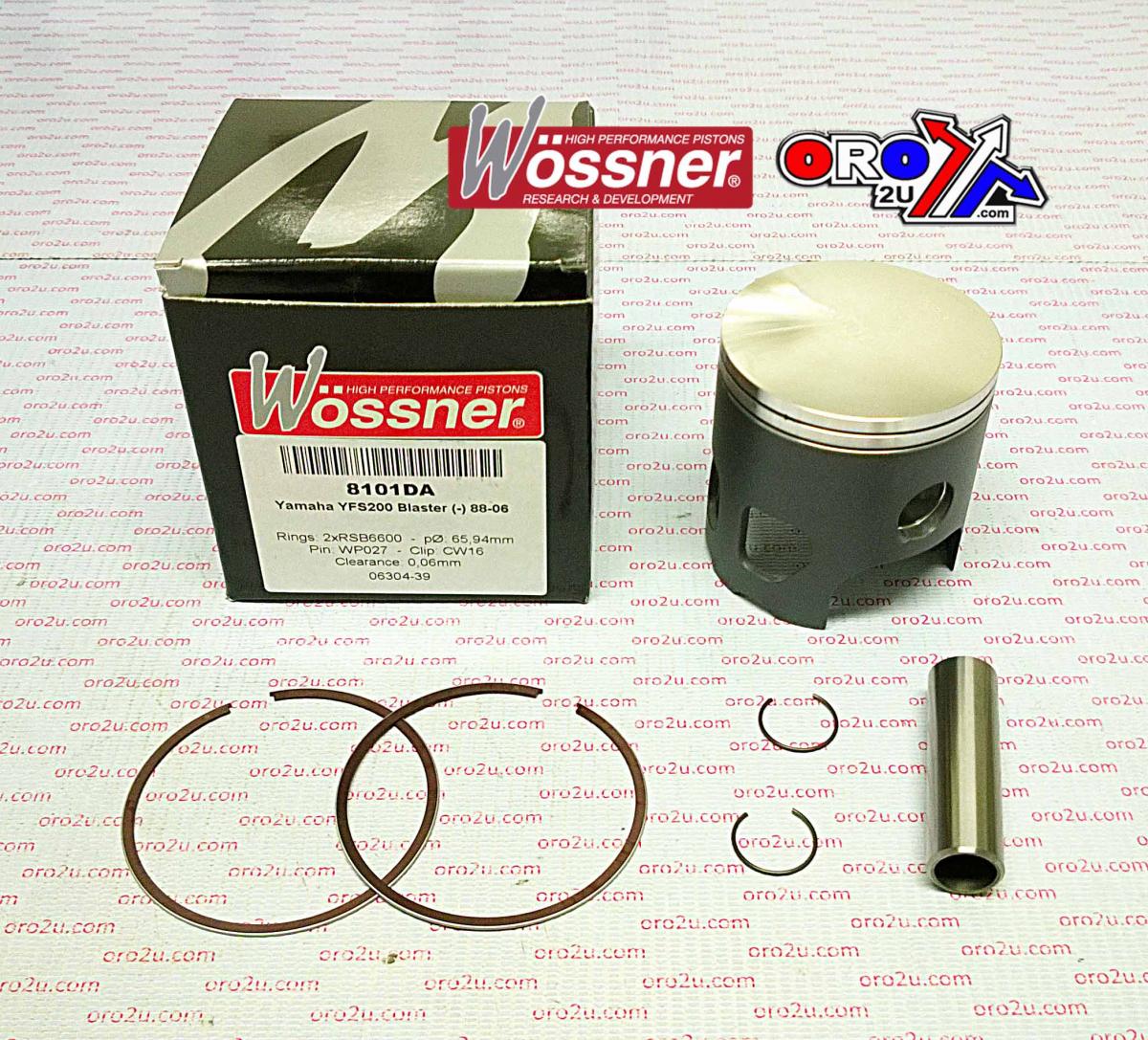

PISTON KIT 88-07 YFS200 66.00, WOSSNER 8101DA YAMAHA ATV

PISTON KIT 88-07 YFS200 66.00, WOSSNER 8101DA YAMAHA ATV

$54.25

Original: $155.00

-65%
PISTON KIT 88-07 YFS200 66.00, WOSSNER 8101DA YAMAHA ATV—

$155.00

$54.25

The Story

The Wossner 8101DA piston kit is designed for Yamaha YFS200 Blaster models from 1988 to 2006, featuring a standard 66.00 mm bore. Manufactured in Germany from high-strength forged material, this piston provides excellent durability and heat transfer efficiency. Its elliptical design promotes a uniform bearing surface during thermal expansion, helping to prevent localised pressure and reduce the risk of piston collapse. The kit includes all essential components for a reliable engine rebuild.



Features





  • Forged piston construction for increased strength and thermal performance




  • Enhanced heat transfer from combustion chamber to cylinder wall




  • Elliptical profile distributes thrust loads evenly under expansion




  • Minimises localised stress and reduces the likelihood of piston failure




  • Manufactured in Germany with precision engineering





Specifications





  • Bore Size: 66.00 mm




  • Actual Bore Diameter: 65.94 mm




  • Stroke: 57.00 mm




  • Display Displacement: 199 cm³




  • Clearance: 0.06 mm




  • Compression Ratio (Wossner and OEM): 2-stroke




  • Compression Height: 29.90 mm





Cross-Reference Wossner Part Numbers





  • Piston Kit: 8101DA




  • Lock: CW16




  • Pin: WP027




  • Ring Set: RSB6600 (Quantity: 2)




  • Rod: P2030




  • Part No.: 56-W573+000.WO





Vehicle Fitments





  • Yamaha YFS200 Blaster (1988–2006)



PISTON KIT 88-07 YFS200 66.00, WOSSNER 8101DA YAMAHA ATV - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

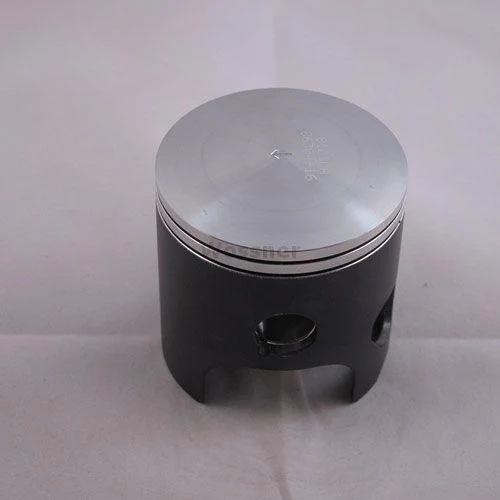

PISTON KIT 88-07 YFS200 66.00, WOSSNER 8101DA YAMAHA ATV - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

PISTON KIT 88-07 YFS200 66.00, WOSSNER 8101DA YAMAHA ATV - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

The Wossner 8101DA piston kit is designed for Yamaha YFS200 Blaster models from 1988 to 2006, featuring a standard 66.00 mm bore. Manufactured in Germany from high-strength forged material, this piston provides excellent durability and heat transfer efficiency. Its elliptical design promotes a uniform bearing surface during thermal expansion, helping to prevent localised pressure and reduce the risk of piston collapse. The kit includes all essential components for a reliable engine rebuild.



Features





  • Forged piston construction for increased strength and thermal performance




  • Enhanced heat transfer from combustion chamber to cylinder wall




  • Elliptical profile distributes thrust loads evenly under expansion




  • Minimises localised stress and reduces the likelihood of piston failure




  • Manufactured in Germany with precision engineering





Specifications





  • Bore Size: 66.00 mm




  • Actual Bore Diameter: 65.94 mm




  • Stroke: 57.00 mm




  • Display Displacement: 199 cm³




  • Clearance: 0.06 mm




  • Compression Ratio (Wossner and OEM): 2-stroke




  • Compression Height: 29.90 mm





Cross-Reference Wossner Part Numbers





  • Piston Kit: 8101DA




  • Lock: CW16




  • Pin: WP027




  • Ring Set: RSB6600 (Quantity: 2)




  • Rod: P2030




  • Part No.: 56-W573+000.WO





Vehicle Fitments





  • Yamaha YFS200 Blaster (1988–2006)
