PISTON KIT 88-89 KX125 56.00, FORGED WOSSNER 8130DA 13001-1266

Piston Kit 56mm Bore 55.94 Wossner 8130DA (STD)

KAWASAKI KX 125 1988 - 1989

Wossner forged pistons are superior in strength and design. Engineered to provide the best possible path for combustion chamber heat transfer to cylinder walls. Elliptically designed to provide a more uniform bearing surface under piston heat expansion, eliminating localized pressure and distributing thrust loads more evenly, thereby preventing piston collapse. Made in Germany.

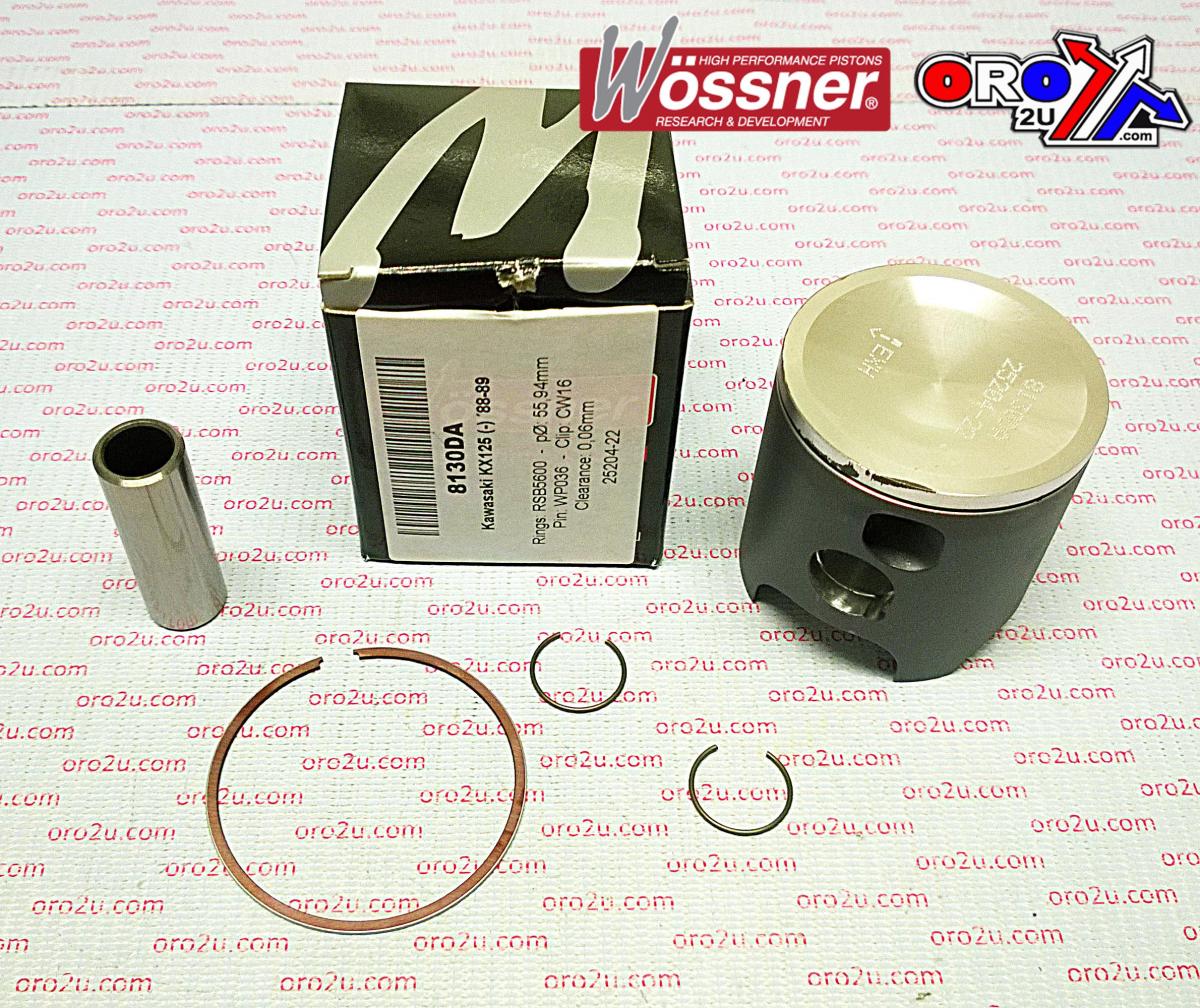

• Wossner Piston Kawasaki KX125 56mm Bore (PN#): 8130DA


• Lock P/N: CW16


• Pin P/N: WP036


• Ring Set P/N: RSB5600


• Rod P/N: P2033

Specifications:

• Display (cm3): 125


• Hub Stroke (mm): 50.60


• Clearance (mm): 0.06


• Wossner Compression Ratio: 2 stroke


• OEM Compression Ratio: 2 stroke


• Dome Volume (cm3):


• Compression Height (mm): 29.50


• Theoretical Weight (G):

Cross Reference Numbers (ONLY):

• 13001-1266, 566M05600
