PISTON KIT 92-01 KX250 66.40 B, WOSSNER 8026DB KAWASAKI MX

Wossner Forged Piston Kit 66.41mm Bore – Kawasaki KX250 (1992–2001)

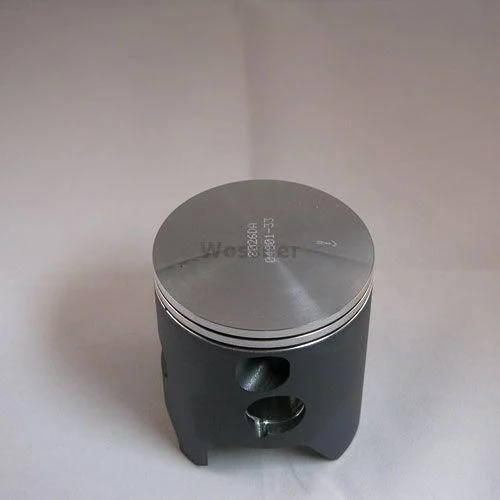

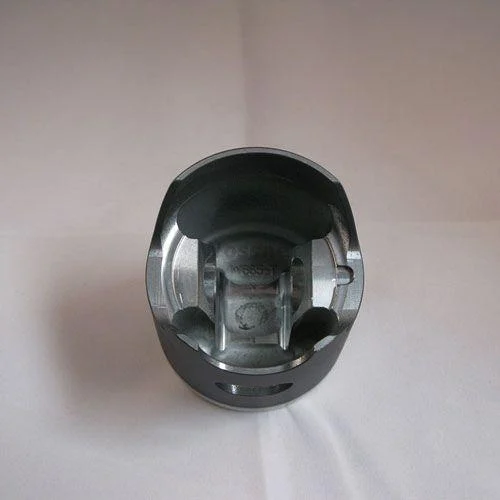

This Wossner forged piston kit is designed for Kawasaki KX250 models from 1992 to 2001, featuring a bore size of 66.41 mm and a piston diameter of 66.35 mm (+0.01 mm oversize). Built for performance in 2-stroke engines, the forged piston offers superior strength and optimal heat transfer. The elliptical shape provides consistent load distribution, reducing stress and improving piston reliability under high-temperature conditions. Manufactured in Germany with precision engineering.

Features

•


  Forged piston construction for durability under extreme conditions





•


  Efficient combustion chamber heat transfer to cylinder walls





•


  Elliptical design ensures even pressure distribution and minimises wear





•


  Manufactured in Germany to exacting standards




Specifications

•


  Bore Size: 66.41 mm





•


  Piston Diameter: 66.35 mm





•


  Engine Displacement: 249 cm³





•


  Stroke: 72.00 mm





•


  Clearance: 0.06 mm





•


  Compression Height: 38.00 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)

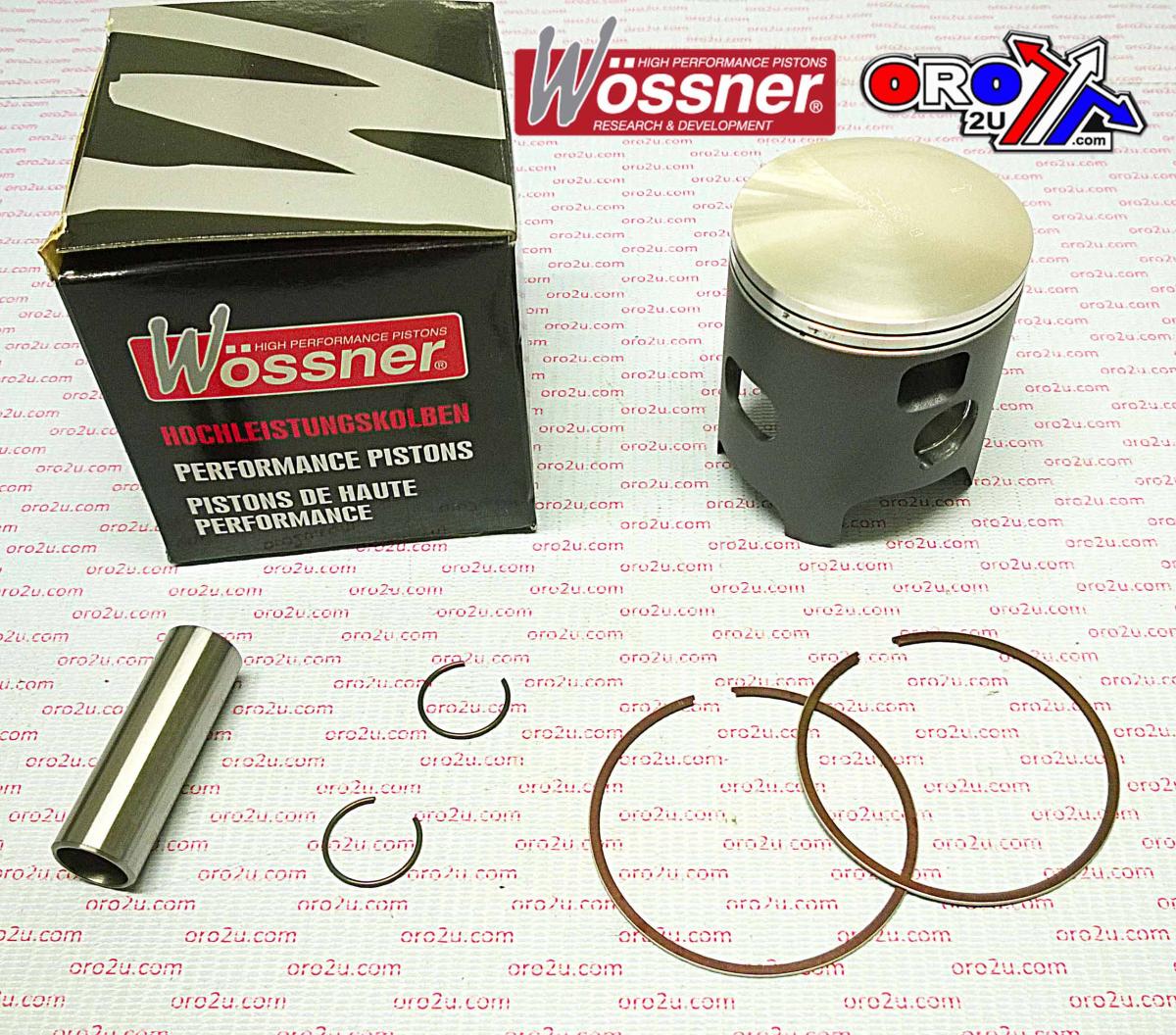

Cross-Reference Wossner Part Numbers

•


  Piston Kit: 8026DB





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6640 x 2




Vehicle Fitments

•


  1992–2001 Kawasaki KX250
