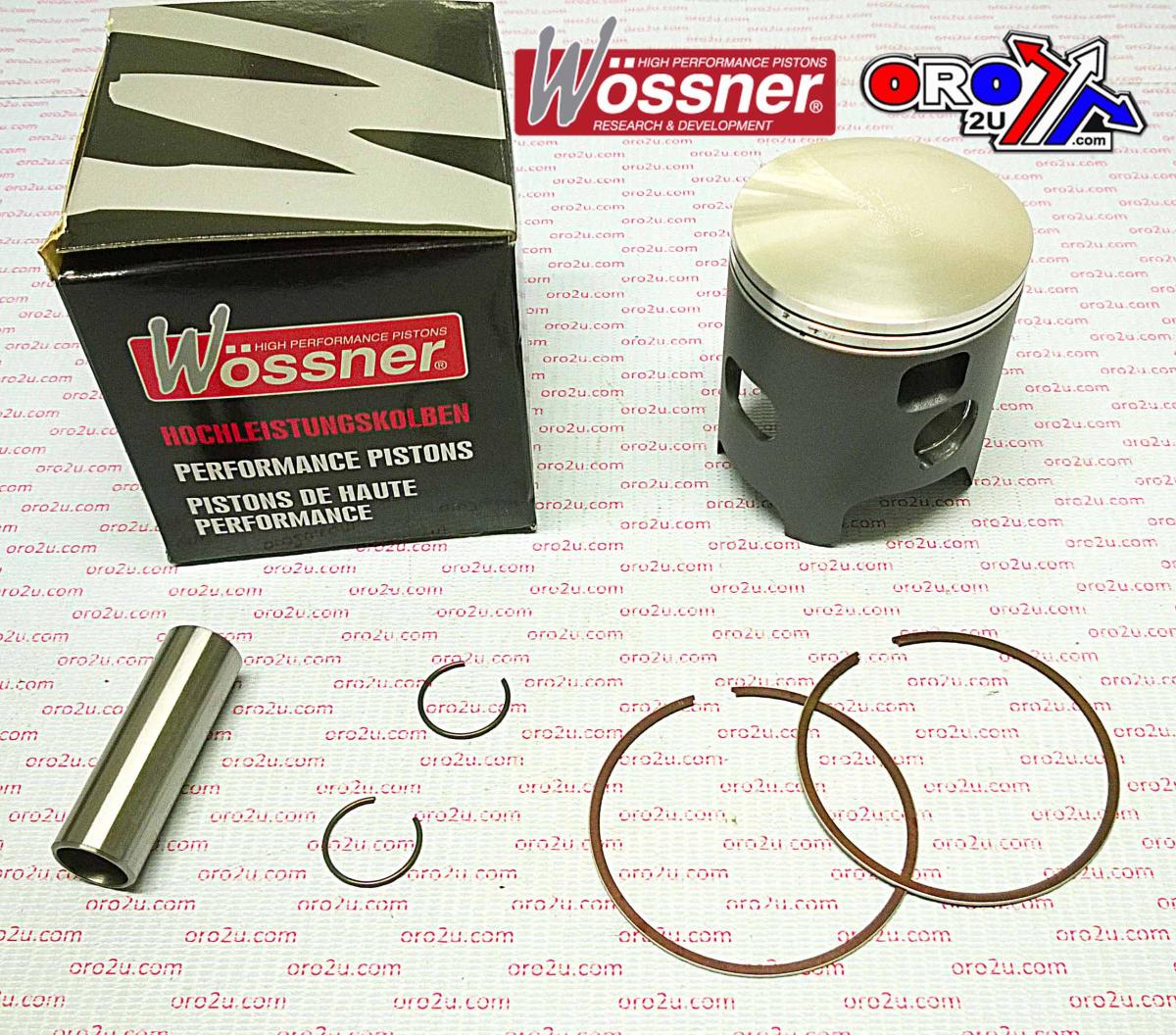

PISTON KIT 92-01 KX250 68.00, WOSSNER 8026D160 KAWASAKI MX

Wossner Forged Piston Kit 68.00mm Bore – Kawasaki KX250 (1992–2001)

This Wossner forged piston kit is designed for Kawasaki KX250 models from 1992 to 2001. With a bore size of 68.00 mm and a piston diameter of 67.94 mm (+1.60 mm oversize), it is suited for significantly overbored or re-sleeved engines. Forged in Germany, the piston provides outstanding durability and performance. The elliptical design ensures a more uniform bearing surface, effectively managing heat expansion and evenly distributing thrust loads to minimize wear and reduce the risk of piston failure.

Features

•


  Forged construction for maximum strength and thermal resilience





•


  Elliptical design evenly distributes load and reduces localised pressure





•


  Efficient combustion chamber heat transfer





•


  Manufactured in Germany for precision and reliability




Specifications

•


  Bore Size: 68.00 mm





•


  Piston Diameter: 67.94 mm





•


  Engine Displacement: 249 cm³





•


  Stroke: 72.00 mm





•


  Clearance: 0.06 mm





•


  Compression Height: 38.00 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)




Cross-Reference Wossner Part Numbers

•


  Piston Kit: 8026D160





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6800 x 2




Vehicle Fitments

•


  1992 Kawasaki KX250





•


  1993 Kawasaki KX250





•


  1994 Kawasaki KX250





•


  1995 Kawasaki KX250





•


  1996 Kawasaki KX250





•


  1997 Kawasaki KX250





•


  1998 Kawasaki KX250





•


  1999 Kawasaki KX250





•


  2000 Kawasaki KX250





•


  2001 Kawasaki KX250
