PISTON KIT 92-98 WR200 73.00, WOSSNER 8070D700 YAMAHA DIRT

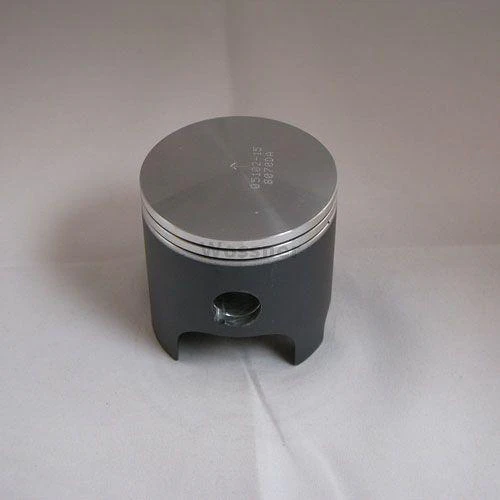

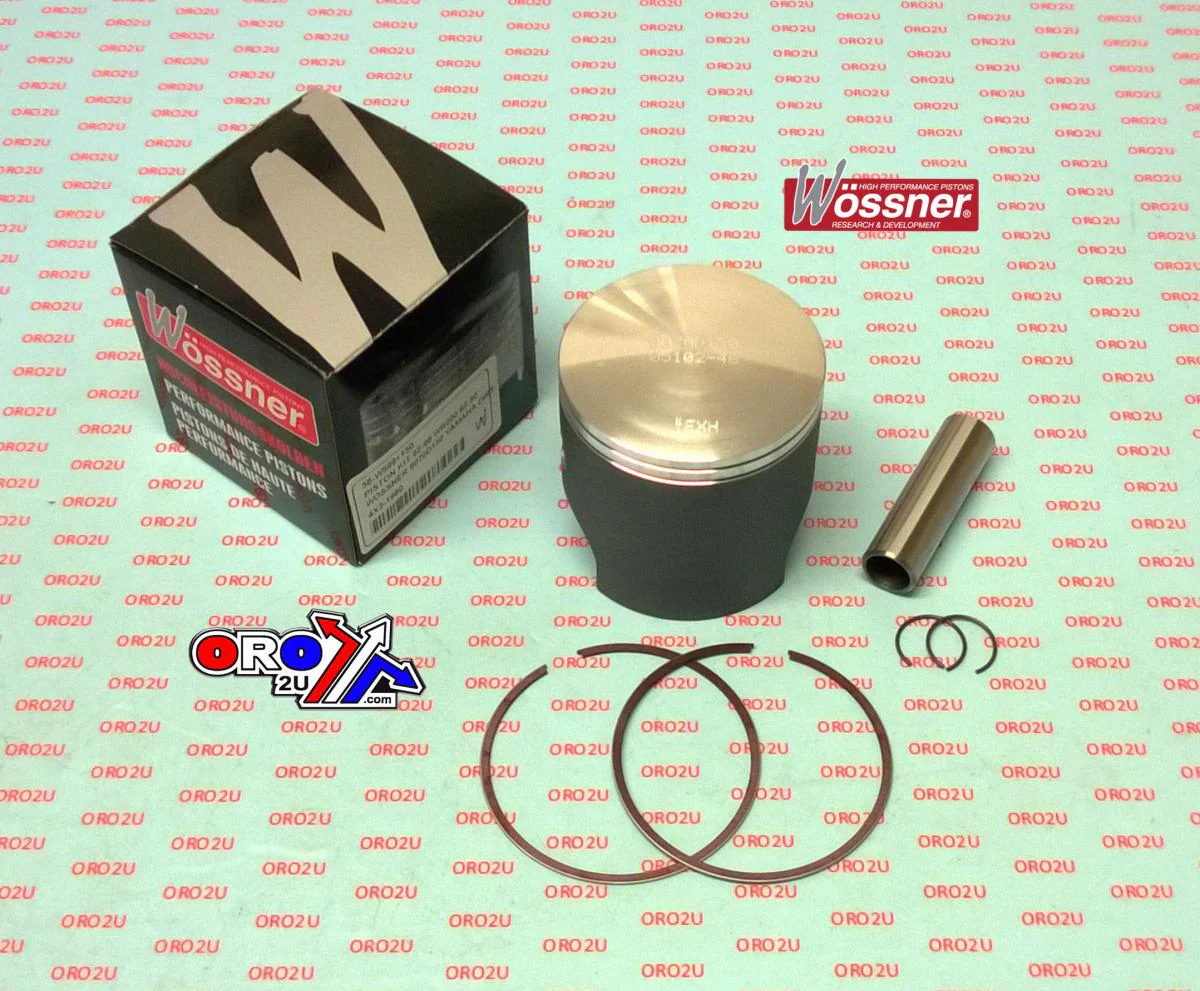

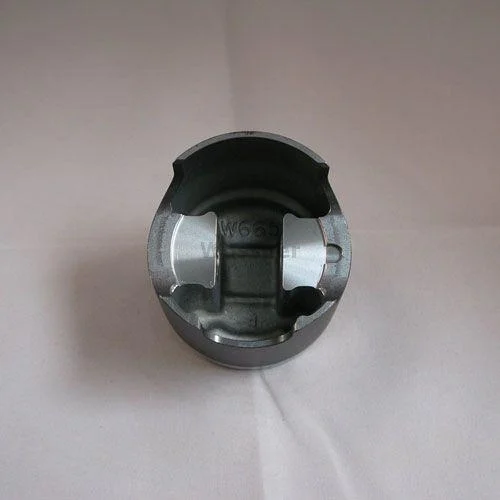

Wossner Forged Piston Kit 73.00mm Bore – Yamaha DT200R / WR200

This Wossner forged piston kit is made for Yamaha DT200R (1988–1991) and WR200 (1992–1998) models, with a bore size of 73.00 mm and a piston diameter of 72.94 mm (+7.00 mm oversize). Designed for extreme oversize applications in 2-stroke engines, this forged piston offers robust structural integrity and optimised thermal dynamics. The elliptical design ensures even thrust load distribution, helping to prevent piston collapse during high-temperature operation. Precision-made in Germany.

Features

•


  Forged piston construction for maximum durability





•


  High-efficiency heat transfer from combustion chamber to cylinder walls





•


  Elliptical shape for uniform bearing surface and reduced localised pressure





•


  German engineering for consistent quality and precision




Specifications

•


  Bore Size: 73.00 mm





•


  Piston Diameter: 72.94 mm





•


  Engine Displacement: 195 cm³





•


  Stroke: 57.00 mm





•


  Clearance: 0.06 mm





•


  Compression Height: 29.90 mm





•


  Compression Ratio: 2-stroke (Wossner and OEM)




Cross-Reference Wossner Part Numbers

•


  Piston Kit: 8070D300





•


  Lock: CW16





•


  Pin: WP027





•


  Ring Set: RSB7300 x 2




Vehicle Fitments

•


  Yamaha DT200R (1988–1991)





•


  Yamaha WR200 (1992–1998)
