PISTON KIT 95 KTM250SX 67.50, WOSSNER 8014DA FORGED MX

Wossner forged piston kit with a 67.50mm bore (67.44mm actual) is designed for KTM GS250 and SX250 models from 1995. This piston offers exceptional strength and thermal efficiency, utilising an elliptical design that provides a more consistent bearing surface under thermal expansion. Manufactured in Germany, it reduces localised pressure and evenly distributes thrust loads to protect against piston collapse during operation.

Features

•


  Forged for high strength and durability





•


  Efficient heat transfer from combustion chamber to cylinder wall





•


  Elliptical design ensures even bearing surface under thermal stress





•


  Reduces risk of localised pressure points and piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore Size: 67.50mm (Actual: 67.44mm)





•


  Compression Height: 29.70mm





•


  Clearance: 0.06mm





•


  Stroke: 69.50mm





•


  Displacement: 249 cm³





•


  Wossner Compression Ratio: 2-stroke





•


  OEM Compression Ratio: 2-stroke




Cross-Reference OEM Part Numbers

•

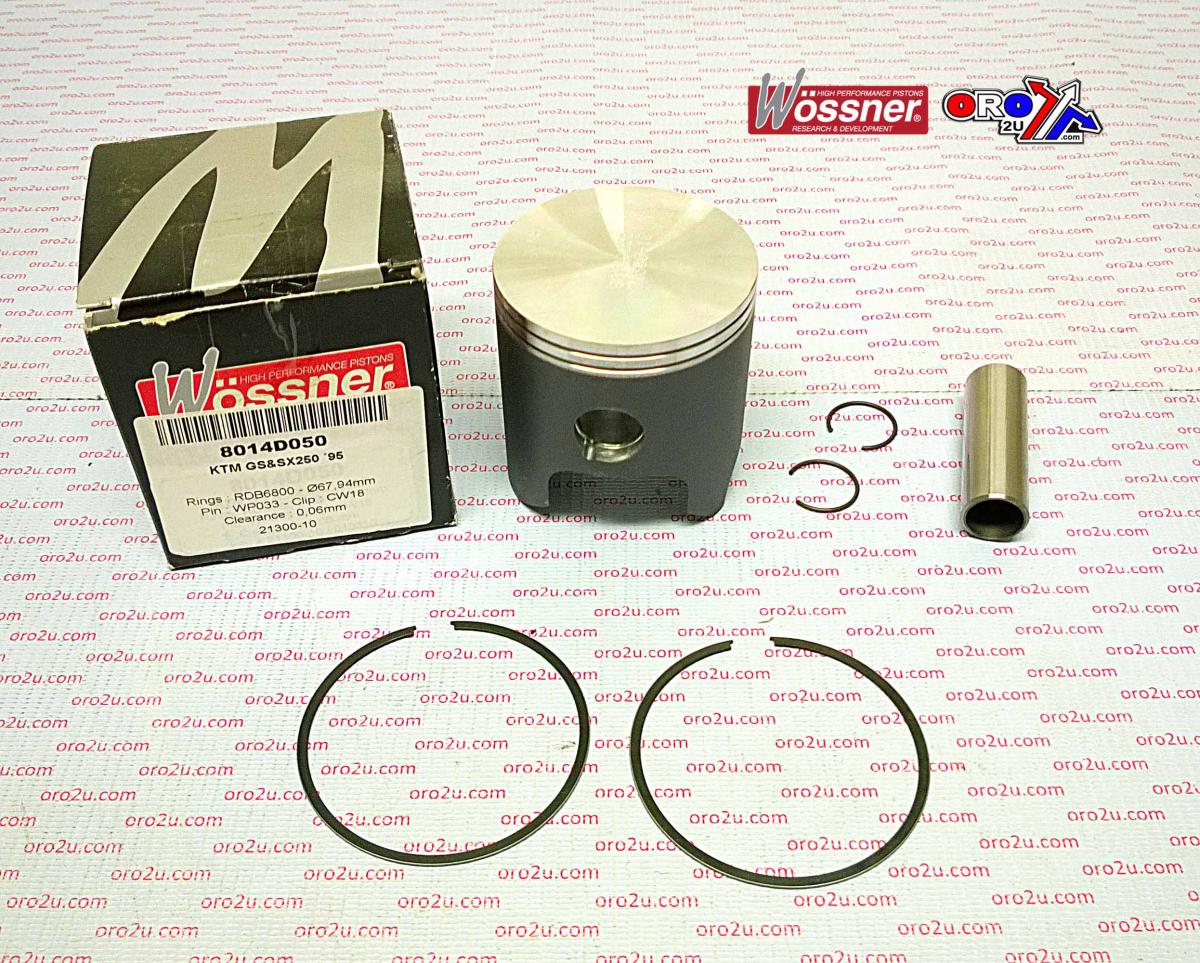

  Piston Kit: 8014DA





•


  Lock: CW18





•


  Pin: WP033





•


  Ring Set: RSB6750 x2




Vehicle Fitments

•


  KTM GS250 (1995)





•


  KTM SX250 (1995)
