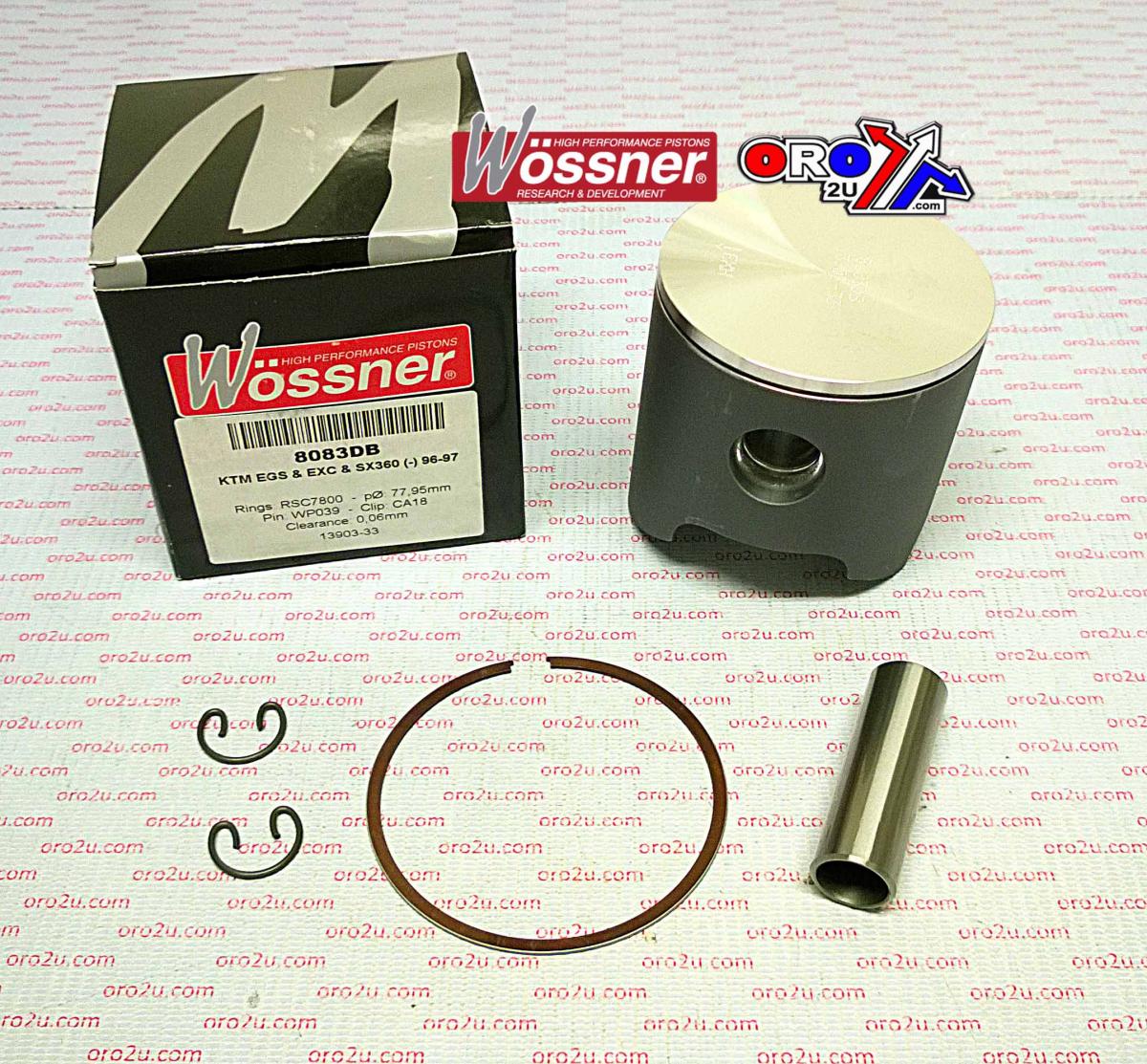

PISTON KIT 96-97 KTM360 78.00, WOSSNER 8083DB FORGED

This Wossner piston kit with a 78.01mm bore (+0.01mm oversize, actual size 77.95mm) is built for KTM 360 models—EGS, EXC, and SX—from 1996 to 1997. Forged in Germany, it provides superior strength, thermal stability, and durability, making it ideal for demanding two-stroke engine conditions.

Features

•


  Forged piston offers maximum durability and mechanical reliability





•


  Designed for efficient heat transfer from the combustion chamber to the cylinder wall





•


  Elliptical profile ensures even load distribution and minimises risk of piston collapse under thermal expansion





•


  Manufactured in Germany for consistent quality and fit




Specifications

•


  Bore size: 78.01 mm





•


  Actual piston size: 77.95 mm





•


  Display (cm³): 353





•


  Stroke (mm): 74.00





•


  Clearance (mm): 0.06





•


  Compression ratio: 2-stroke (Wossner and OEM)





•


  Compression height (mm): 27.00




Vehicle Fitments

•


  1996 KTM EGS 360





•


  1996 KTM EXC 360





•


  1996 KTM SX 360





•


  1997 KTM EGS 360





•


  1997 KTM EXC 360





•


  1997 KTM SX 360




Included Components

•


  Piston: Wossner PN# 8083DB





•


  Lock: PN# CW18





•


  Pin: PN# WP039





•


  Ring Set: PN# RSC7800
