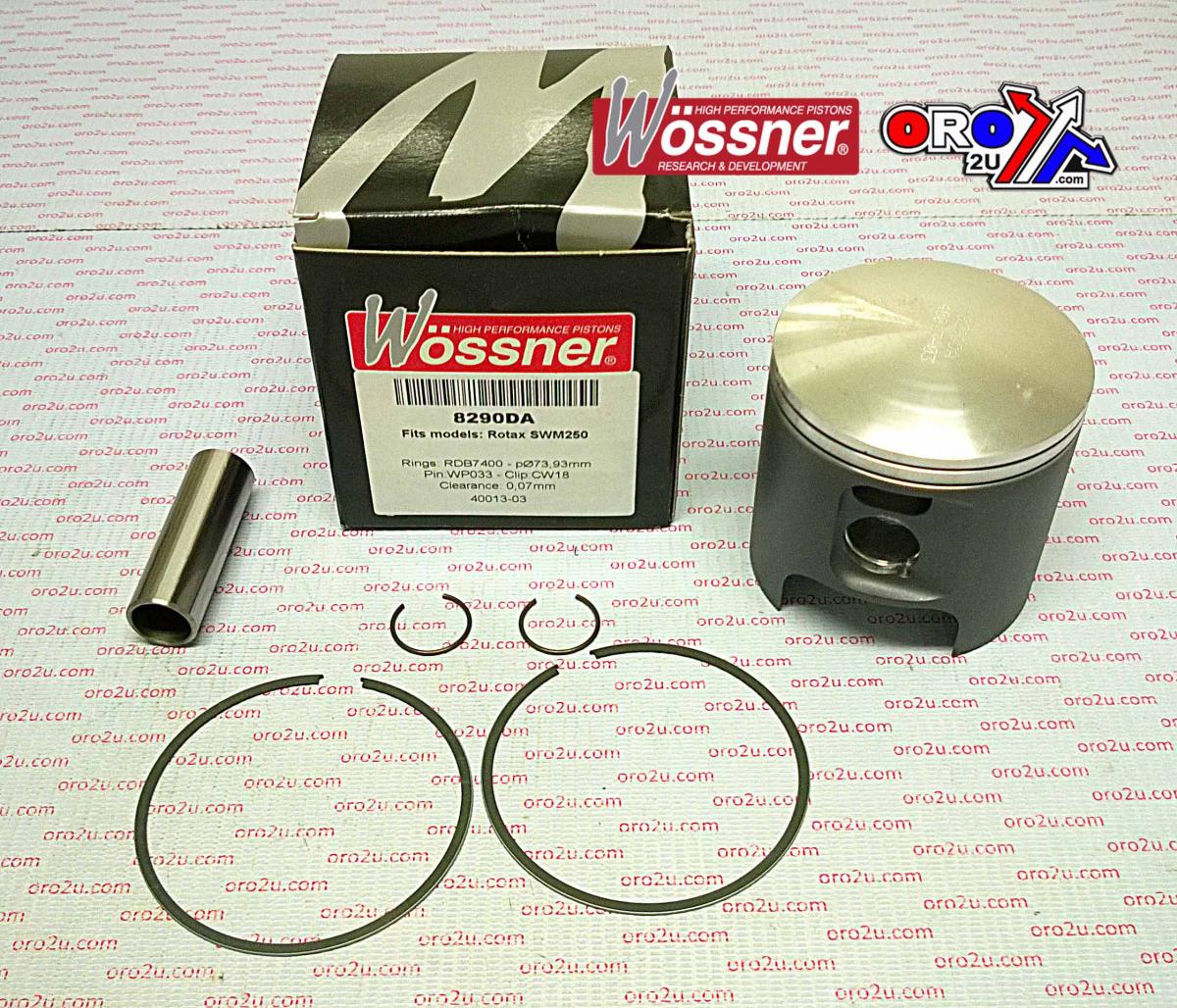

PISTON KIT ROTAX SWM250 74.00, WOSSNER 8290DA

This Wossner forged piston kit features a 74mm nominal bore (actual 73.93mm) and is designed for ROTAX SWM250 models from 1979 to 1982. Engineered for two-stroke applications, it offers enhanced durability and thermal efficiency for high-performance engines.

Features

•


  Forged construction provides superior strength and reliability





•


  Designed for optimal heat dissipation from the combustion chamber to cylinder walls





•


  Elliptical shape ensures balanced bearing pressure and effective thrust load management





•


  Manufactured in Germany with high precision and quality control




Specifications

•


  Bore Size: 74mm (actual 73.93mm)





•


  Stroke: 57.50 mm





•


  Clearance: 0.06 mm





•


  Wossner Compression Ratio: 2 stroke





•


  OEM Compression Ratio: 2 stroke





•


  Compression Height: 34.00 mm





•


  Lock Part Number: CW18





•


  Pin Part Number: WP033





•


  Ring Set Part Number: RSB7400 x 2




Vehicle Fitments

•


  ROTAX SWM250 1979–1982
