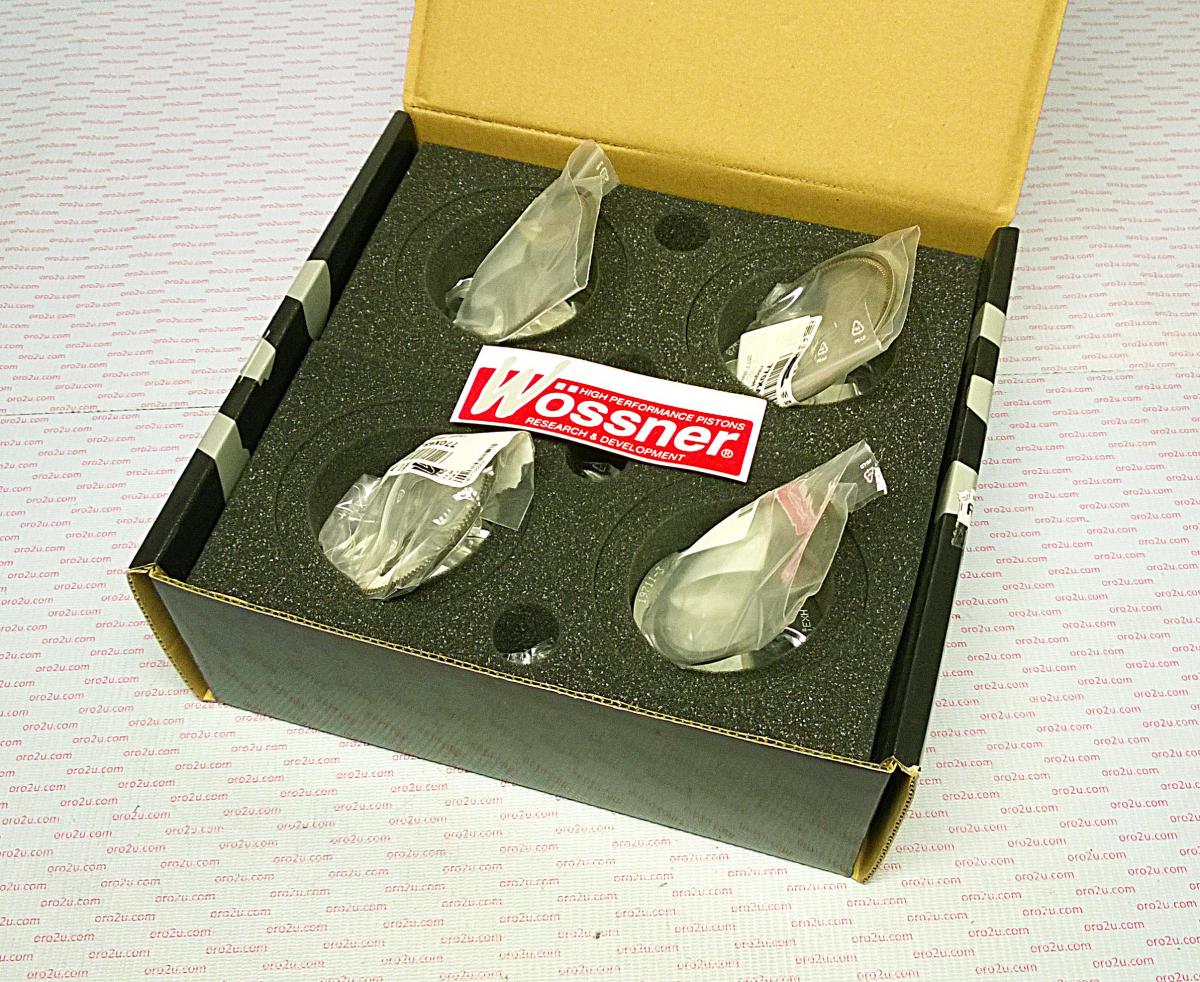

PISTON KIT SET/4 CBR954RR, WOSSNER K8804DA-4 75.00mm

This Wossner forged piston kit K8804DA-4 is a standard 75.00mm bore set designed for HONDA CBR954RR models from 2002 to 2004. Built to meet OEM compression standards, it combines precision engineering with superior material strength to support high-performance applications. Manufactured in Germany, this four-piston kit ensures effective thermal management and durability under demanding engine conditions.

Features

•


  Forged construction for maximum strength and reliability





•


  Engineered for optimal combustion chamber heat dissipation





•


  Elliptical piston profile promotes even expansion and thrust load distribution





•


  Reduces the risk of localised pressure and piston collapse





•


  Made in Germany




Specifications

•


  Bore: 75.00mm (STD)





•


  Piston code: Wossner K8804DA-4





•


  Clip part number: CW17





•


  Piston pin: WP083





•


  Displacement: 954 cm³





•


  Stroke: 54.00 mm





•


  Clearance: 0.06 mm





•


  Wossner compression ratio: OEM





•


  OEM compression ratio: 11.50:1





•


  Dome volume: -3.10 cm³





•


  Compression height: 23.50 mm





•


  Theoretical weight: 186.00 g




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9883.00A.WO




Vehicle Fitments

•


  HONDA CBR954RR 2002–2004
