PISTON KIT SET GSXR1000 75.00, WOSSNER K8700D160-4 SUZUKI, 2005-2008

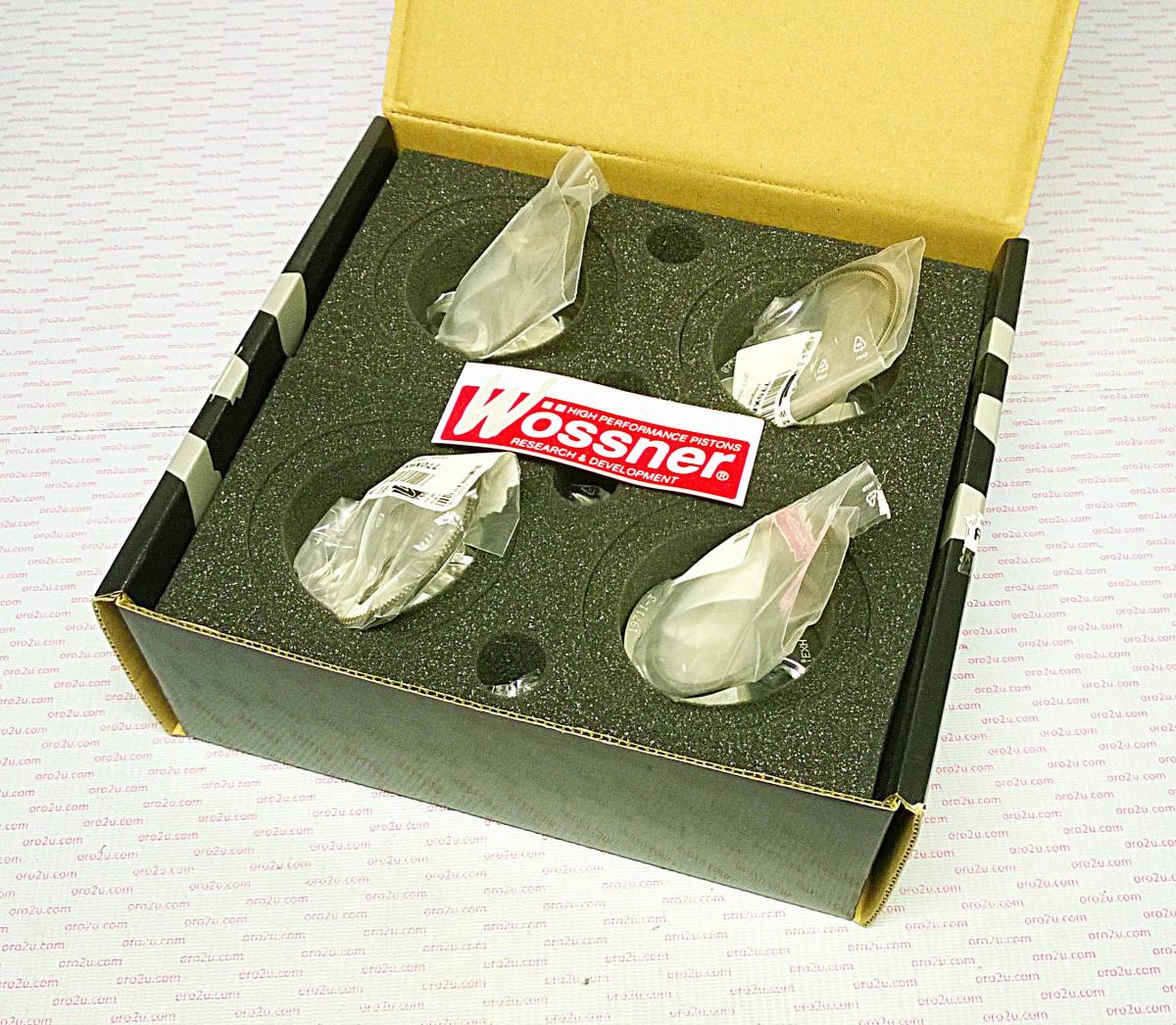

This Wossner forged piston kit K8700D160-4 features a 75.00mm bore (+1.60mm oversize) and is engineered for SUZUKI GSXR1000 models from 2005 to 2008. Supplied as a set of four pistons, this kit supports increased displacement and elevated compression ratios, enhancing engine performance for high-demand applications. Manufactured in Germany, it ensures superior heat transfer, strength, and dimensional precision.

Features

•


  Forged piston construction provides superior durability and performance





•


  Designed for optimal heat transfer from combustion chamber to cylinder walls





•


  Elliptical profile promotes uniform expansion and balanced thrust load distribution





•


  Minimises localised pressure and prevents piston collapse





•


  Manufactured in Germany




Specifications

•


  Bore: 75.00mm (+1.60mm oversize)





•


  Piston code: Wossner K8700D160-4





•


  Clip part number: CW15





•


  Piston pin: WP011





•


  Ring set: RIK75.00L





•


  Displacement options: 988 / 1024 / 1070 cm³





•


  Stroke: 59.00 mm





•


  Clearance: 0.04 mm




Wossner compression ratio:

•


  998 cm³: 14.00:1





•


  1024 cm³: 14.60:1





•


  1070 cm³: 14.90:1





•


  OEM compression ratio: 12.50:1





•


  Dome volume: -4.40 cm³





•


  Compression height: 22.55 mm




Cross-Reference OEM Part Numbers

•


  Part No. 56-W9893.160.WO




Vehicle Fitments

•


  SUZUKI GSXR1000 2005–2008
