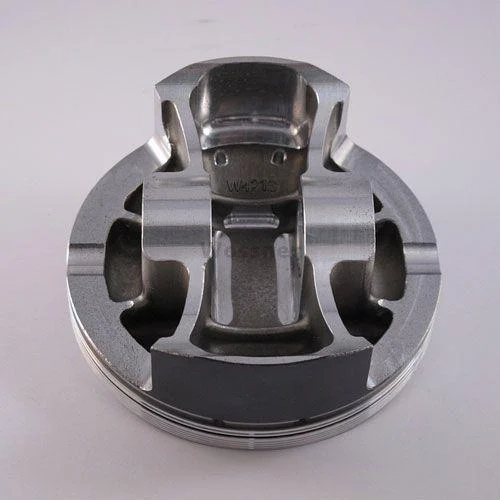

PISTON KIT SMR560 KTM HC.100, FORGED WOSSNER 8704DA 59030107000

Wossner forged piston kit with a 100.00mm bore and 99.95mm diameter, designed for KTM SMR560 models. This high-compression piston (12.00:1) enhances performance and durability. Manufactured in Germany, it ensures optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged construction for superior strength


• High-compression ratio for increased performance


• Optimized heat transfer for efficient combustion


• Elliptical design for uniform load distribution


• Manufactured in Germany

Specifications

• Bore: 100.00mm


• Diameter: 99.95mm


• Display (cm³): 600


• Stroke (mm): 72.00


• Clearance (mm): 0.05


• Wossner Compression Ratio: 12.00:1


• OEM Compression Ratio: 11.00:1


• Dome Volume (cm³): +5.20


• Compression Height (mm): 23.40

Cross-Reference OEM Part Numbers

• Wossner Piston KTM SMR560 (PN# 8704DA)


• Lock P/N: CW20


• Pin P/N: WP038


• Ring Set P/N: 1000ADS-2


• OEM Reference: 59030107000

Vehicle Fitments

• KTM SMR560 (2006-2007)
