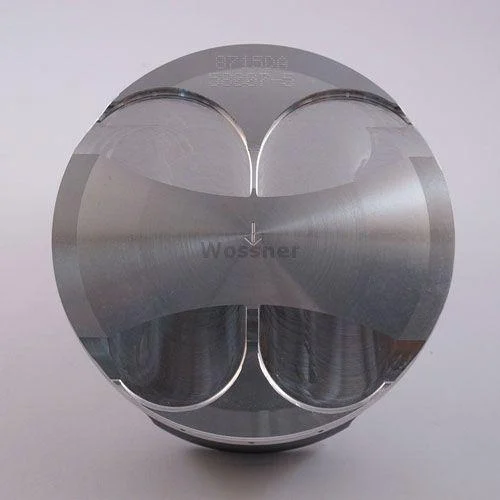

PISTON KIT SX-F450 KTM HC 97, FORGED WOSSNER 8715DC

Wossner forged piston kit with a 97.02mm bore and 96.98mm diameter, designed for KTM SX-F450 models. This high-compression piston (13.50:1) enhances performance and durability. Manufactured in Germany, it ensures optimal heat transfer to cylinder walls. Its elliptical design provides a uniform bearing surface under heat expansion, reducing localized pressure and evenly distributing thrust loads to prevent piston collapse.

Features

• Forged construction for superior strength


• High-compression ratio for increased performance


• Optimized heat transfer for efficient combustion


• Elliptical design for uniform load distribution


• Manufactured in Germany

Specifications

• Bore: 97.02mm


• Diameter: 96.98mm


• Display (cm³): 449


• Stroke (mm): 68.80


• Clearance (mm): 0.04


• Wossner Compression Ratio: 13.50:1


• OEM Compression Ratio: 12.50:1


• Dome Volume (cm³): +1.10


• Compression Height (mm): 21.30

Cross-Reference OEM Part Numbers

• Wossner Piston KTM SX-F450 (PN# 8715DC)


• Lock P/N: CW19


• Pin P/N: WP071


• Ring Set P/N: 970ADS


• Connecting Rod Kit P/N: P4017

Vehicle Fitments

• KTM SX-F450 (2007-2012)
