$35.35The Story
SUZUKI
AN 125cc 2000
AN Burgman 250cc de 1996 a 2000
AN Burgman 125cc de 1995 a 2000
EN 125cc de 2004 a 2008
EN A2 125cc GN 125cc GSX 250cc de 1991 a 1997
RG Gamma 500cc de 1986 a 1987
RGV Gamma 250cc de 1989 a 1996
UE 125cc de 2001 a 2011
UE 150cc de 2001 a 2011
| Technical specifications | |
| Tension (voltage) | 12 [V] |
| Corriente (current) | 20 [A] |
| Tipo de entrada (input type) | TRIFASICO |
| Tecnologia (technology) | SCR |
| Tipo de salida (output type) | CC |
| Alto (height) | 28 [mm] |
| Ancho (width) | 47 [mm] |
| Largo (length) | 76 [mm] |
| Entre centro (pitch) | 60 [mm] |
| Con sensor (with sensor) | NO |
| dze products that apply to | |||||
| Brand | Model | Version | Displacement | Year | OEM |
| Reemplazo | Shindengen | SH572MB | |||
| Suzuki | AN | 125 | 2000 | 32800-22D11 | |
| Suzuki | AN | Burgman | 250 | from 1996 to 2000 | 32800-22D10 |
| Suzuki | AN | Burgman | 125 | from 1995 to 2000 | 32800-22D10 |
| Suzuki | EN | 125 | from 2004 to 2008 | 32800-22D20 | |
| Suzuki | EN | A2 | 125 | 32800-37G10-000 | |
| Suzuki | GN | 125 | 32800-37G10-000 | ||
| Suzuki | GSX | 250 | from 1991 to 1997 | 32800-22D11 | |
| Suzuki | RG | Gamma | 500 | from 1986 to 1987 | 32800-20A00 |
| Suzuki | RGV | Gamma | 250 | from 1989 to 1996 | 32800-22D00 |
| Suzuki | UE | 125 | from 2001 to 2011 | 32800-20A01 | |
| Suzuki | UE | 150 | from 2001 to 2011 | 32800-20A01 | |
- Meets or exceeds OEM quality.
- Direct oem replacement.
- All products are factory tested for 100% reliability at point of sale.
- Designed to handle increased power loads.
- DZE Racing products are a high quality replacement part and carries our guarantee of your satisfaction.
- Please check the image and connection plugs before ordering to avoid mistakes.
- Note. No Returns on Electrical Parts.
Part No. 44-3975.AH.B (oro2u.com)

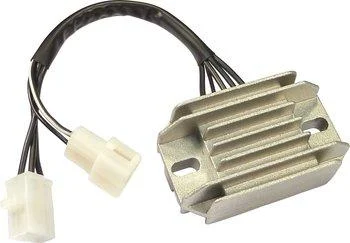

VOLTAGE RECTIFIER / REGULATOR - EXTERNAL 12V
Cross reference numbers ONLY.
32800-22D11 / 32800-22D10 32800-22D20 / 32800-37G10-000 32800-22D11 / 32800-20A00 32800-22D00 / 32800-20A01
