The Story
Part No. 48-209.BK (oro2u.com)
Colour = Black

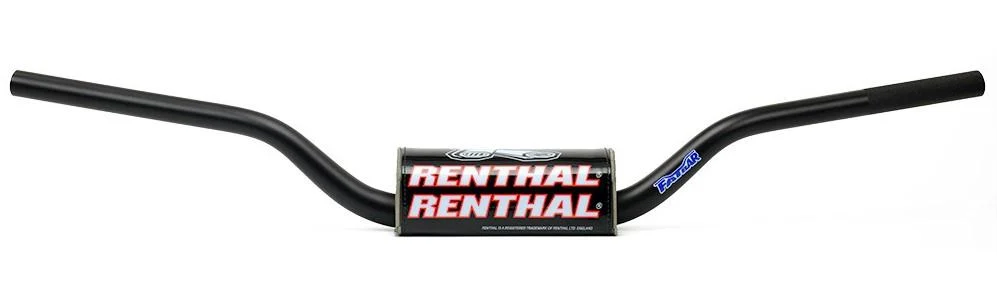

Fatbar
The championship-proven Renthal Fatbar continues to set the industry standard in an unbraced tapered MX handlebar. The oversized (1-1/8in | 28.6mm) clamping diameter uses computer-aided profiling, tapering down to (7/8in | 22.2mm) to accept standard controls. Engineered from Renthal's exclusive 7010 T6 aluminum, specially formulated to reduce vibration and provide superior strength.
The Renthal MX Fatbar provides that signature flex character desired by many top athletes around the globe and is fitted as OE equipment by Honda, Kawasaki, and Suzuki.
Bar Dimensions (mm)
Width / Dimension A 802
Height / Dimension B 120
Rise / Dimension C 84
Clamping Width / Dimension D 150
Sweep / Dimension E 56
Control Length / Dimension F 190
Dimension G 132
Height / Dimension BV 120
Mounting Diameter 28.6mm / 1+1/8''
