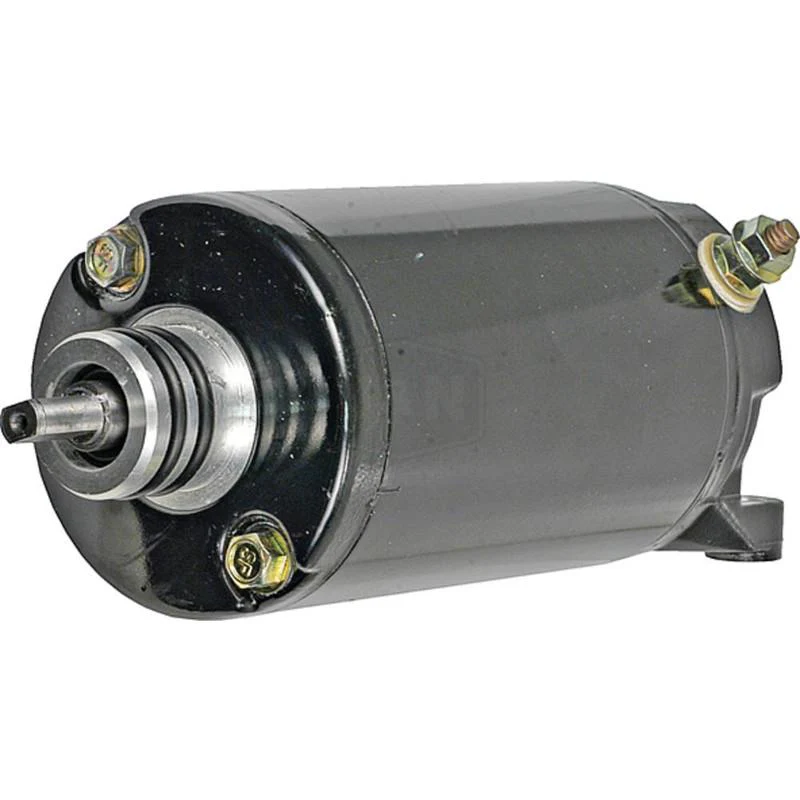

STARTER MOTOR SEA-DOO 2002-11, ARROWHEAD SMU0259, 410-54053

Starter motor suitable for Sea-Doo models produced between 2002 and 2011. This replacement unit is manufactured to meet or exceed OEM specifications, ensuring compatibility and reliability. The design includes stock mounting locations and is built to handle increased power loads. Please note that this unit is a direct replacement for Sea-Doo OEM part numbers as specified below and is fully factory tested for performance.

Features:

• Voltage: 12V


• Rotation: Counterclockwise (CCW)


• Starter Type: PMDD (Permanent Magnet Direct Drive)


• Meets or exceeds OEM quality standards


• Stock mounting locations for easy installation


• Enhanced durability for increased power loads


• Fully factory tested for quality assurance


• Non-returnable due to the nature of electrical components

Specifications:

• Unit Type: Starter


• Part Type: UNIT


• Manufacturer: Mitsuba


• Dimension: Replacement unit


• Mounting ear holes: 7.0mm unthreaded


• Drive Tang: 6.3mm x 9.5mm on armature shaft


• Note: No splines on shaft; rectangular bar design

Cross-Reference OEM Part Numbers:

• Arrowhead: 410-54053, SMU0259 (OLD)


• J&N: 410-54053


• Lester: 18532


• PIC: 191-021


• BBB Small Motor: 22-18532


• EMP Parts: 4-6905


• EMS: 49-1102


• MES Motorcycle & Marine: S1102M


• MinnPar: 57-2717


• MPA Small Motor: P349N


• NAPA Small Motor: RN18532


• Quicksilver: 8M6007381


• Remy Small Motor: RS41231


• Sea-Doo: 290-888-993, 290-888-999, 420-888-9933, 420-888-994, 420-888-996


• Tucker Rocky: 46-4206


• WAI (Old): 2-2790-MT


• Wilson Small Engine: 71-26-18532

Vehicle Fitment:

Compatible with a wide range of Sea-Doo models powered by Rotax 1503 4-stroke engines and other specific configurations. Fitment includes but is not limited to:

• Rotax Marine BRP 1503 Rotax Engine (4-Stroke 1494cc, 2002-2011)


• Sea-Doo 180 Challenger SE (2008-2011)


• Sea-Doo GTI models (2006-2012)


• Sea-Doo GTX, RXP, RXT, Wake, Sportster, and Speedster series (2002-2011)


• Sea-Doo Islandia and Utopia series (2004-2011)


• Additional fitments detailed in the comprehensive list above.

Additional Information:

• Replaces Sea-Doo OEM part numbers, including 420-888-994 and 420-888-996.


• Designed with a rectangular bar shaft for specific applications.

Part Number: SMU0259
