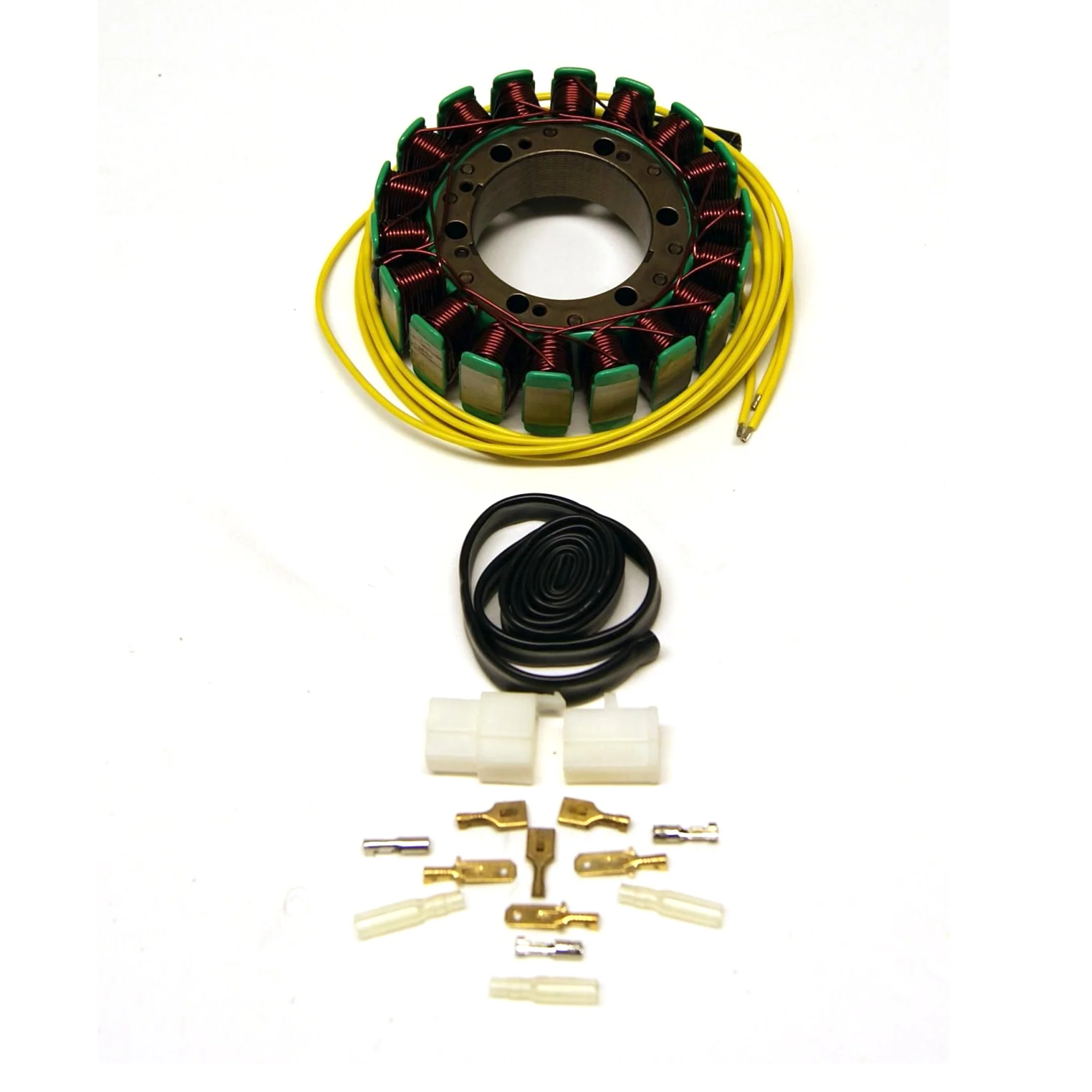

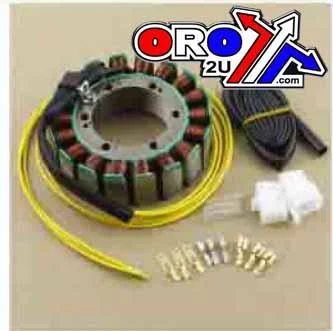

STATOR COIL HONDA XRV750 VF1000F XLV600 ST-08 VFR700 VFR750F

Part No. 44-9821.MA (oro2u.com)

HONDA XRV750 AFRICA TWIN 1993-2003,

HONDA VF1000F 1984 VF1000R 1984-1986,

HONDA VRF700 1986-1987,

HONDA VFR750F INTERCEPTOR 1986-1989,

HONDA XLV600 XL600 TRANSALP 1987-1999,

HONDA VF700 MAGNA 1982-1992,

HONDA VF1000 INTERCEPTOR 1984-1986,

Stator Motorcycle Generator.



SPECS:

The External end to end  : 110mm

The Internal end to end  : 54.6mm

The fixing holes are at 12,2,4,6 and 8 and are 62mm apart (opposite)

The inside height  : 25.4mm (1”)

External Height : 33.80mm.

Cross reference numbers ONLY. ALTERNATOR ASSY. (DENSO) 31100-MB6-701, RICKS 21-139,
